Waste Textile Shredder

  • HSN1200SS
  • HSN
  • 84440050
  • Stable and reliable working performance
  • Waste Recycling
Availability:
Quantity:

HSN1200SS Shredder



Brief Introduction
HSN1200SS Shredder is made of thick steel plate welded precisely with accuracy connection, and then can use long time, adopts high quality motor with pure copper wire to ensure operation stable and avoids high temperature and non-burning, forging re-ignition heat treatment tempering and insulation fine grinding blades can be used more durable, drive components with coupling links to reduce vibration, effective protection of main shaft and gearboxes.



Main Features

Stable and reliable working performance High efficiency and easy operation


Technical Specifications



HSN MACHINERY       Shredder


MODEL

HSN1200SS

1

Motor for shredder

4P 2x37kw

2

Gearbox

JIQ650 two

3

Diameter of main shaft

135mm

4

Speed of main shaft

15-18rpm

5

Blade Size

Φ300x33mm

6

Material of Blade

40Cr

7

Control box

individual

8

Input Size

1200*700mm

9

Output Belt

4000*1100mm

10

Production

3000kg/hour

11

Machine size

4300*1200*2200mm

12

Machine Weight

3200kgs

13

Price FOB Qingdao


14

Lead time

25days



Application
HSN1200SS Shredder is used as a coarse shredding machine and is generally used to process unprocessed raw materials or corner materials to make them smaller in size. Compared with other crushers, the main shaft speed is low then the noise is low.

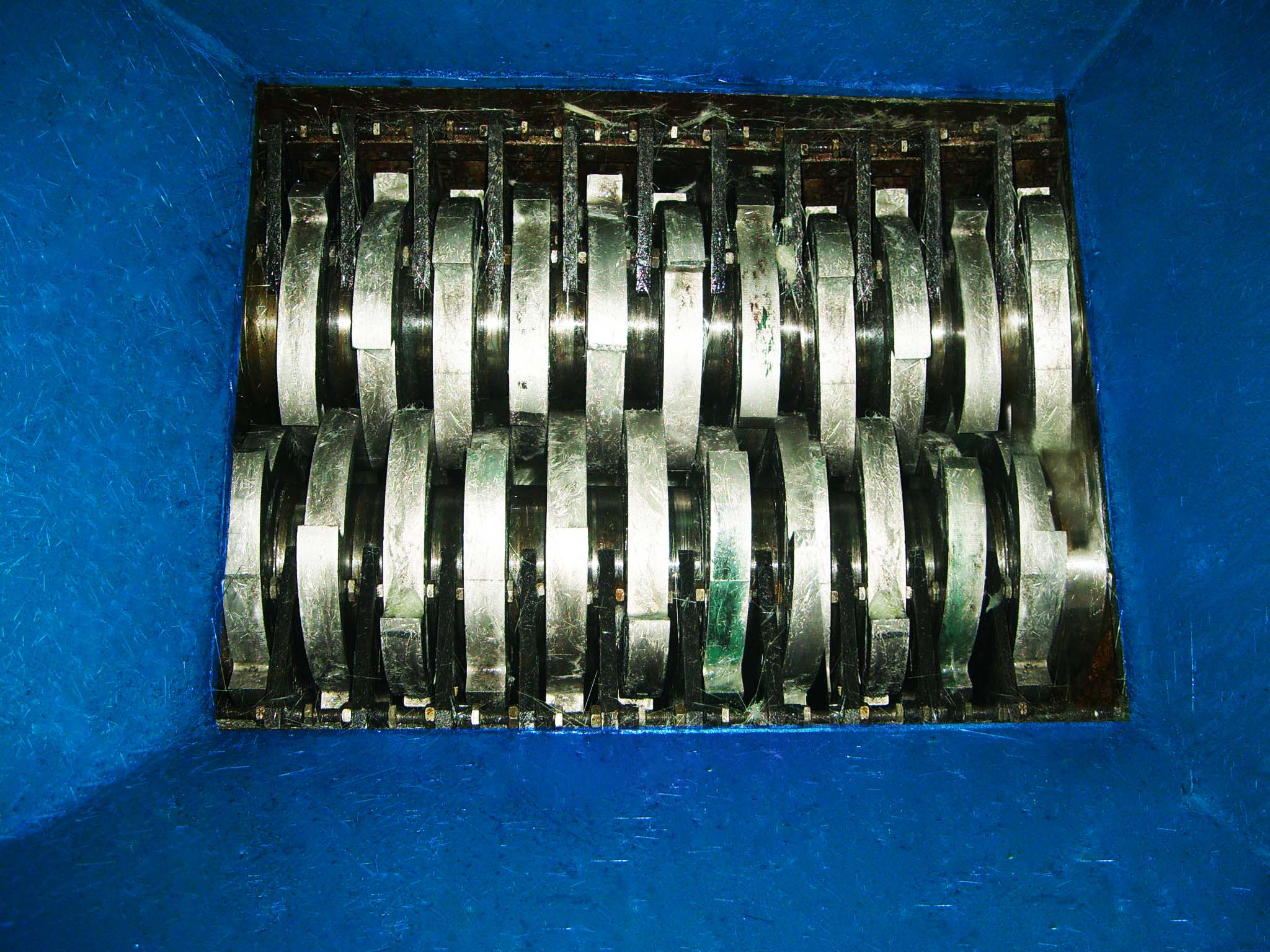

Shredder BladesWaste Crushed

BC-C202102474R HSN1200B CE-MD Certificate
