HSN1200SS
HSN
84440050
Stable and reliable working performance
Waste Recycling
| Quantity: | |
|---|---|

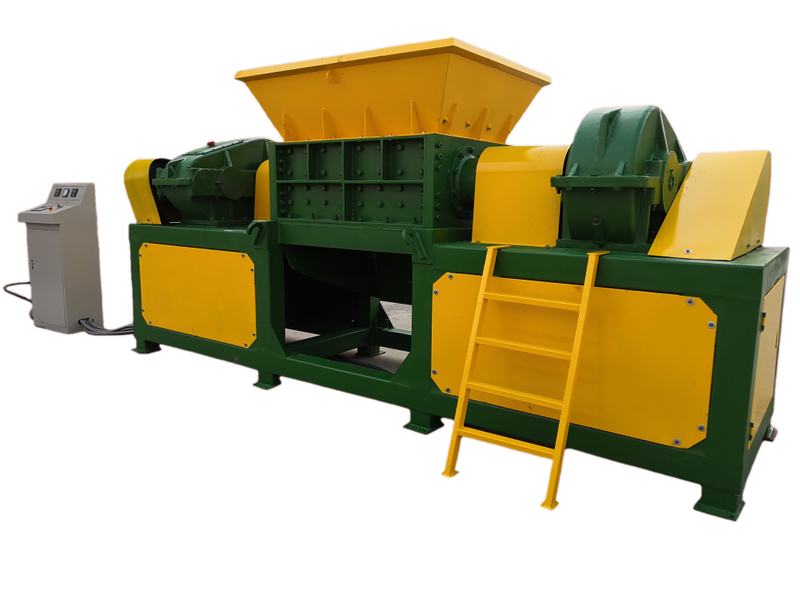

HSN1200SS Shredder
Brief Introduction
HSN1200SS Shredder is made of thick steel plate welded precisely with accuracy connection, and then can use long time, adopts high quality motor with pure copper wire to ensure operation stable and avoids high temperature and non-burning, forging re-ignition heat treatment tempering and insulation fine grinding blades can be used more durable, drive components with coupling links to reduce vibration, effective protection of main shaft and gearboxes.
Main Features
Stable and reliable working performance High efficiency and easy operation
Technical Specifications
HSN MACHINERY Shredder | ||
MODEL | HSN1200SS | |
1 | Motor for shredder | 4P 2x37kw |
2 | Gearbox | JIQ650 two |
3 | Diameter of main shaft | 135mm |
4 | Speed of main shaft | 15-18rpm |
5 | Blade Size | Φ300x33mm |
6 | Material of Blade | 40Cr |
7 | Control box | individual |
8 | Input Size | 1200*700mm |
9 | Output Belt | 4000*1100mm |
10 | Production | 3000kg/hour |
11 | Machine size | 4300*1200*2200mm |
12 | Machine Weight | 3200kgs |
13 | Price FOB Qingdao | |
14 | Lead time | 25days |
Application
HSN1200SS Shredder is used as a coarse shredding machine and is generally used to process unprocessed raw materials or corner materials to make them smaller in size. Compared with other crushers, the main shaft speed is low then the noise is low.
HSN1200SS Shredder
Brief Introduction
HSN1200SS Shredder is made of thick steel plate welded precisely with accuracy connection, and then can use long time, adopts high quality motor with pure copper wire to ensure operation stable and avoids high temperature and non-burning, forging re-ignition heat treatment tempering and insulation fine grinding blades can be used more durable, drive components with coupling links to reduce vibration, effective protection of main shaft and gearboxes.
Main Features
Stable and reliable working performance High efficiency and easy operation
Technical Specifications
HSN MACHINERY Shredder | ||
MODEL | HSN1200SS | |
1 | Motor for shredder | 4P 2x37kw |
2 | Gearbox | JIQ650 two |
3 | Diameter of main shaft | 135mm |
4 | Speed of main shaft | 15-18rpm |
5 | Blade Size | Φ300x33mm |
6 | Material of Blade | 40Cr |
7 | Control box | individual |
8 | Input Size | 1200*700mm |
9 | Output Belt | 4000*1100mm |
10 | Production | 3000kg/hour |
11 | Machine size | 4300*1200*2200mm |
12 | Machine Weight | 3200kgs |
13 | Price FOB Qingdao | |
14 | Lead time | 25days |
Application
HSN1200SS Shredder is used as a coarse shredding machine and is generally used to process unprocessed raw materials or corner materials to make them smaller in size. Compared with other crushers, the main shaft speed is low then the noise is low.
