Pillow Filling Machine

  • HSN320F1T1
  • HSN
  • 84440040
  • Small size, Easy to install, Safe and simple operation
  • Home Textile
Availability:
Quantity:

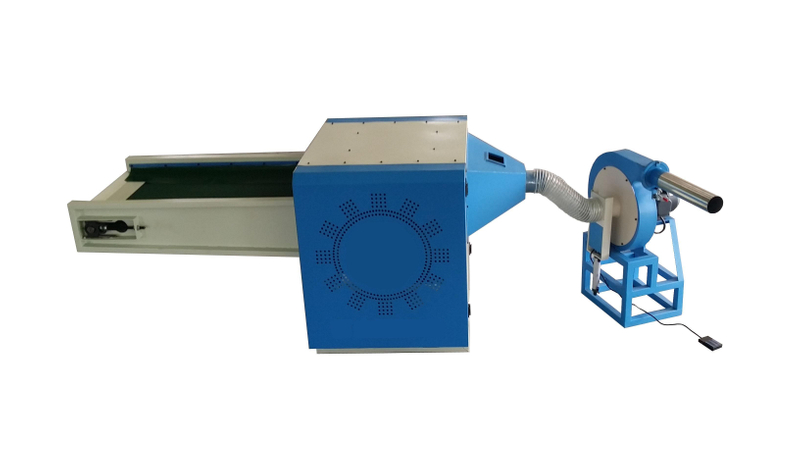

HSN320F1T1 Pillow Filling Machine


Brief introduction
HSN320F1T1 Pillow Filling Machine includes Fiber Opening Machine and Filling Machine, adopts the principle of pull produced by the reverse whirling of multi-toothed dense teeth doffer and multi-tooth roller, which strengthens the degree of loosening and makes the fiber cotton achieve the best fluffy effect. It’s opening doffer and feeding Roller mounted with high-quality card clothing, working life is 4 times as that of ordinary card clothing. All doffers and rollers are statically balanced and the machine is non-vibrating and low noise during working. The whole machine adopts a fully enclosed design, is safe and tidy, reduces the times of maintenance and cleanings and improves the stability of the equipment, it keeps fiber good frizzy and smooth, that is best for filling the products in fluffy, resilience.

Technical specifications

Model

HSN320F1T1

Working width

810mm

Licker-in Doffer Diameter

320mm

Production Capacity

280kg/h

Opened Fiber Rate

100%

Power

7.5kw + 0.75kw+2.2kw

Voltage

380V/50Hz 3 phase

Overall Dimension

Opening:1800×1220×1050mm

Filling: 1100×650×1050mm

Machine Weight

860kg

Input Feeding Type

Conveyor

Output Type

Transfer Fan with Filling Machine

Application

HSN320F1T1 Pillow Filling Machine is used for opening raw materials that polyester short fiber under 64mm length, and filling opened fibers into pillow, cushion and toy etc.

IMG_6696

 IMG_6689
