Non Woven Waste Opening Machine

  • HSN1050B
  • HSN
  • 84451190
  • Durable with Outstanding Performance
  • Non woven Waste Recycling
Availability:
Quantity:

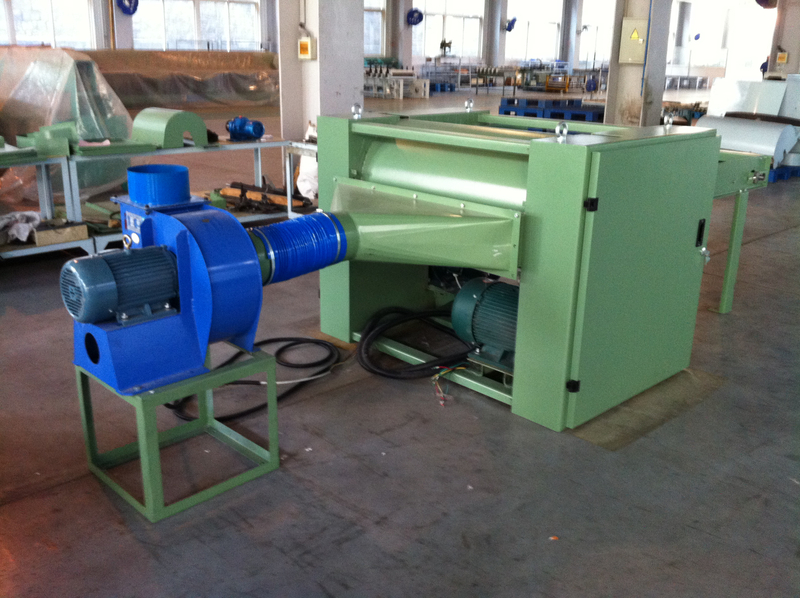

HSN1050B Nonwoven Waste Opening Machine



Brief introduction
HSN1050B opening machine feeding part consists of the roller mounted card clothing and feed plate to form a holding system, the grip force can be adjusted by the distance of the roller with feed plate, the feeding amount can be adjusted randomly by the inverter. The high-speed swinging opening roller and feed plate both make the leftovers material fully torn and loose. The output pipe by a powerful fan and can take over the channel to a specified position.

Feed roller speed is controlled and adjusted by inverter according to different kinds of leftover material. Enclosed cover and protective device to ensure safety to operator. Standard and common parts used on the machine make it easy and convenient for maintenance.



Technical specifications

Model

HSN1050B

Working width

1000mm

Card Clothing Roll Diameter

500mm

Roller rotation speed

1900rpm

Opening Ratio

Above 95%

Suction fan power/ rotation speed

1x3kw / 2900rpm

Main Motor Power

11.25kw

Overall Dimension

2700x1450x1550mm

Weight

800kg

Output

100 - 160kg/hour


Application
HSN1050B opening machine is mainly applicable to the manufacturers which produce various types of non-woven, especially suitable for needle punching, water spurs, hot air and other processes to produce nonwoven, its leftovers can be opened and recycled and reused. the use of HSN1050B opening machine recycling at any time to recycle leftovers into fiber again, basically does not damage fiber, which is an effective way for enterprises to improve raw material utilization, reduce production costs, increase efficiency.
