Hydraulic Baling Press Machine

  • HSN721
  • HSN
  • 84481900
  • Mature technology and Economic investment
  • Textile Waste Recycling
Availability:
Quantity:

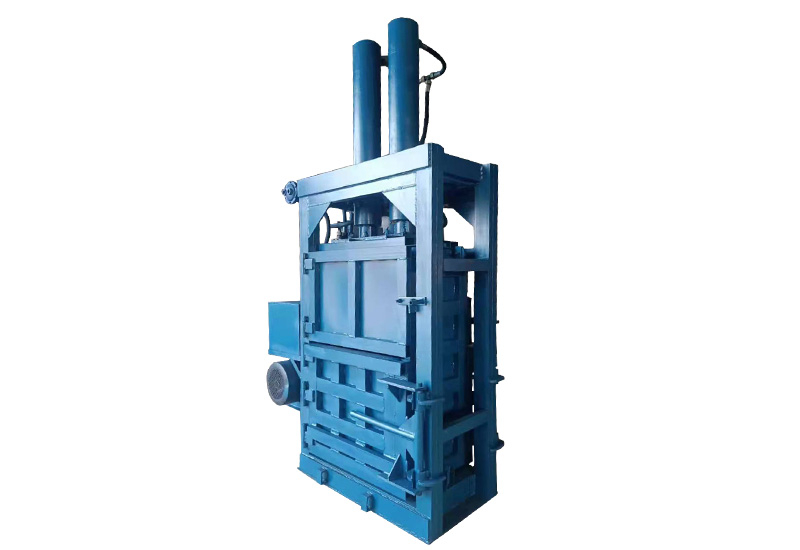

HSN721 (Hydraulic Baling Press Machine)

Brief Introduction
HSN721 Hydraulic Baling Press Machine, is one heavy and strong baling press machine, specially developed for baling press cotton waste, it controlled by photoelectric system, it can be completed with cotton fiber compactor or condenser to cotton bale automatically.


Technical Specifications


MODEL

HSN721

1

Pressing Force (Ton)

120

2

Size of Baling Chamber (mm)

610x990x1430

3

Size of Bale (mm)

610x990x1100

4

Max. Weight of Bale (kg)

300

5

Baling Quantity per Hour

3 to 4

6

Max. Working Stroke of Cylinder (mm)

1100

7

Max. Working Pressure of Hydraulic System (MPa)

20

8

Oil Cylinder Diameter (mm)

2x180 Thick

9

Oil Pump Type

2100 gear pump

10

Motor Power (kw)

18.5

11

Dimension of Machine (mm)

1950x1000x3300

12

Weight of Machine (kg)

2630



Application
HSN721 Hydraulic Baling Press Machine is mainly applied for packing cotton or cotton droppings in spinning mill, also best suitable to press waste cotton, coir fiber used clothes, polyester, short -cut fibers, jute.
