HSN320x6-630
HSN
84451190
Small size, Easy to install, Safe and simple operation
Home Textile
Availability: | |
---|---|
Quantity: | |

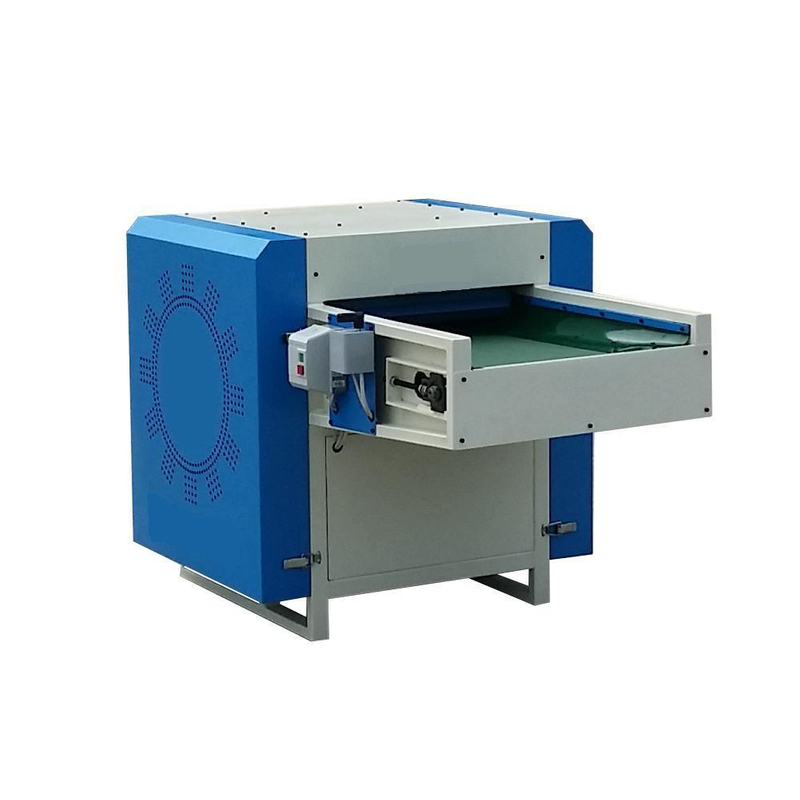

HSN320x6-630 Fiber Opening Machine
Brief introduction
HSN320x6-630 Fiber Opening Machine adopts the principle of pull produced by the reverse whirling of multi-toothed dense teeth doffer and multi-tooth roller, which strengthens the degree of loosening and makes the fiber cotton achieve the best fluffy effect. It’s opening doffer and feeding Roller mounted with high-quality card clothing, working life is 4 times as that of ordinary card clothing. All doffers and rollers are statically balanced and the machine is non-vibrating and low noise during working. The whole machine adopts a fully enclosed design, is safe and tidy, reduces the times of maintenance and cleanings and improves the stability of the equipment, it keeps fiber good frizzy and smooth, that is best for filling the products in fluffy, resilience.
Technical specifications
HSN320x6-630 | |
Working width | 630mm |
Licker-in Doffer Diameter | 320mm |
Production Capacity | 180kg/h |
Opened Fiber Rate | 100% |
Power | 4kw + 0.55kw |
Voltage | 380V/50Hz 3 phase |
Overall Dimension | 1500x1000x1050mm |
Machine Weight | 500kg |
Input Feeding Type | Conveyor |
Output Type | Transfer Fan ( Optional) |
Application
HSN320x6-630 Fiber Opening Machine is used for opening raw materials that polyester short fiber under 64mm length, opened fibers are suitable for quilt, pillow, bedding, gaddi, mattress and sofa filling etc.
HSN320x6-630 Fiber Opening Machine
Brief introduction
HSN320x6-630 Fiber Opening Machine adopts the principle of pull produced by the reverse whirling of multi-toothed dense teeth doffer and multi-tooth roller, which strengthens the degree of loosening and makes the fiber cotton achieve the best fluffy effect. It’s opening doffer and feeding Roller mounted with high-quality card clothing, working life is 4 times as that of ordinary card clothing. All doffers and rollers are statically balanced and the machine is non-vibrating and low noise during working. The whole machine adopts a fully enclosed design, is safe and tidy, reduces the times of maintenance and cleanings and improves the stability of the equipment, it keeps fiber good frizzy and smooth, that is best for filling the products in fluffy, resilience.
Technical specifications
HSN320x6-630 | |
Working width | 630mm |
Licker-in Doffer Diameter | 320mm |
Production Capacity | 180kg/h |
Opened Fiber Rate | 100% |
Power | 4kw + 0.55kw |
Voltage | 380V/50Hz 3 phase |
Overall Dimension | 1500x1000x1050mm |
Machine Weight | 500kg |
Input Feeding Type | Conveyor |
Output Type | Transfer Fan ( Optional) |
Application
HSN320x6-630 Fiber Opening Machine is used for opening raw materials that polyester short fiber under 64mm length, opened fibers are suitable for quilt, pillow, bedding, gaddi, mattress and sofa filling etc.
