Application

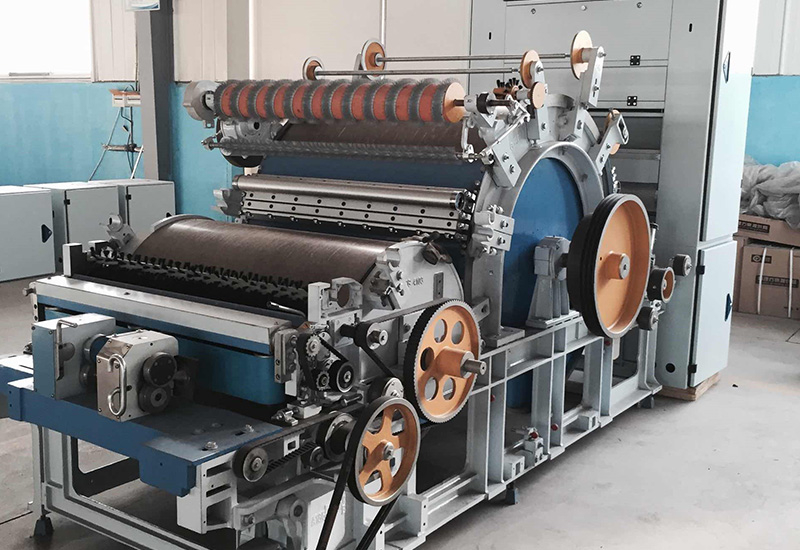

This carding machine is adopted for further carding, cleaning and mixing wed, supplied from blowing room as well as eliminating waste and part of tufts. The wed is condensed into can for continuous feed to the spinning preparation stage. Card FA221 with sliver forming speed of 220m/min Max, output of 35-55kg/h is controlled by PC with long and short term variable speed device, while multi-motor simplifying driving. The main parts including Frame. cylinder and doffer are of steel structure. Licker-in roll is provided a carding segment under it, three stationary flat which move in counter direction from the view of cylinder traveling are installed above the cylinder. The whole machine with pleasing appearance and sturdy structure could be
operated reliably.
Technical Specifications
Lap Width (mm) | 920 |
Weight (g/m) | 350-720 |
Sliver weight (g/m) | 4-6 |
Total draft ratio | 70-130 |
Sliver delivery speed (m/min) | 150-180 |
Licker-in Dia. (mm) | 250 |
Speed (r/min) | 600;900;950;1116 |
Cylinder Dia. (mm) | 1290 |
Speed(r/min) | 280;350;400 |
Doffer Dia. (mm) | 700 |
Revolving flat number | 80 |
Working flat number | 30 |
Flat speed (mm/min) | 102-305 |
Stationary flat number | 3 forfront,3 for rear |
Web cleaner | 2 for front, 1 for rear |
Starting speed of sliver deliver (m/min) | 15-20 |
Stripping | Tri-rolls |
Power capacity (kw) | 8.69 |
Overall dimensions (L x W x H) (mm) | 4741x2675x1900 |
Net weight (kg) | About 7300 |
Structure Diagram of Carding Machine
1. Coiler
2. Calender roll
3. Squeeze roll
4. Stripping roll
5. Suction hood at bottom
6. Brush roll
7. Doffer
8. Post-stationary flat
9. Air blow at bottom
10. Front web cleaner
11. Suction hood under cylinder
12. Cylinder
13. Suction hood undertaker-in
14. Card segment
15. Taker-in
16. Feed plate
17. Feed roll
18. Pre-stationary segment
19. Revolving flat
20. Revolving flat
21. Brush roll
22. Main pipe of permanent suction
