HSNCF200
HSN
Stable and reliable working performance
Non Woven Industry

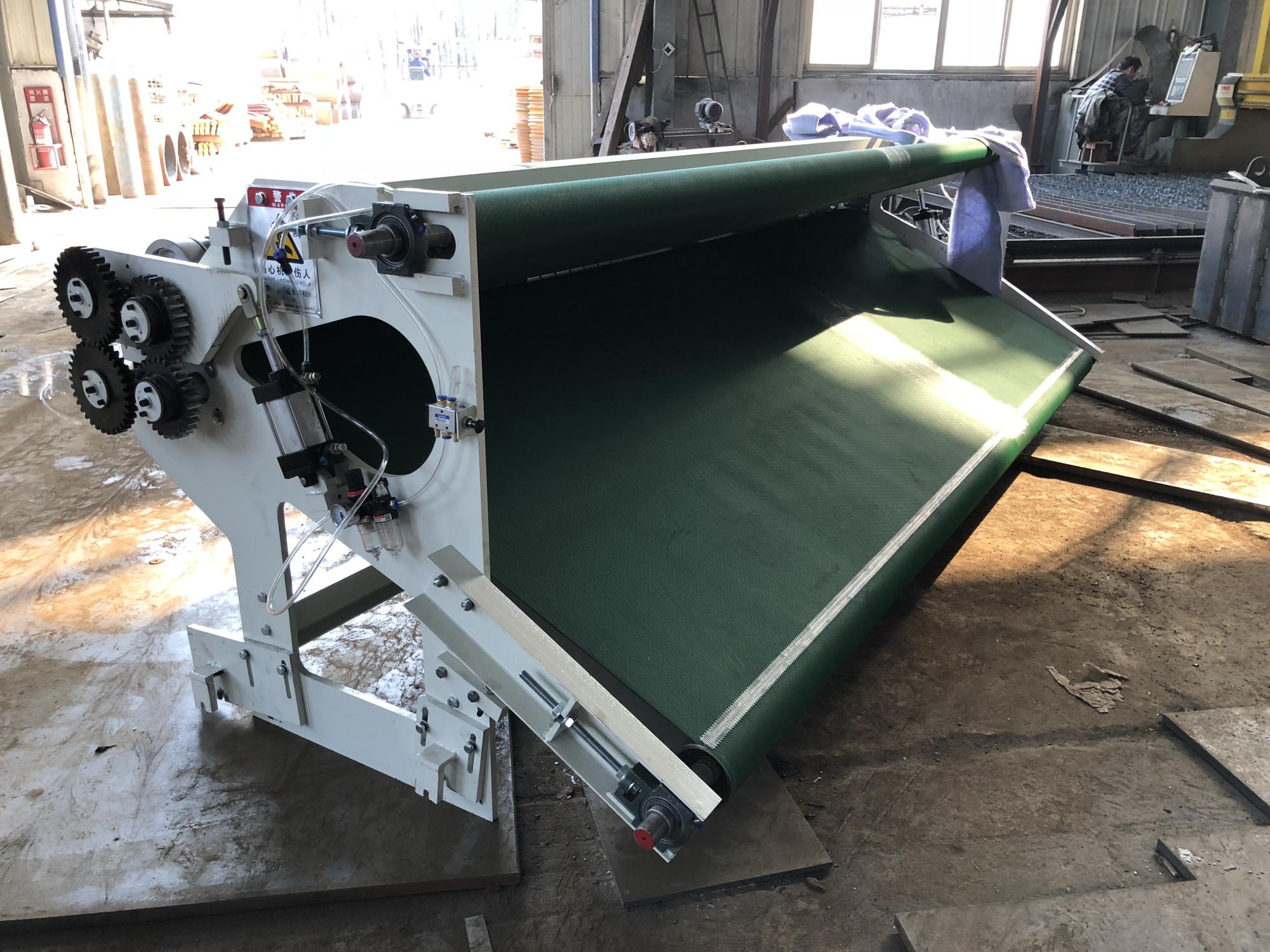

CBF feeding system
Design & structure as the picture
Working width: 2 meter compatible to feeding into loom placed after this.
Machine width: 2.3 meter
Web weight – 1500gms
Input web thickness: 500MM
Output delivery thickness: minimum 15MM
Speed: 0.6-5 meter per minute
Function: feeds the voluminous web to needle punching zone with minimum draft.
It carries the web on antistatic PVC belt. Feeds the web into punching machine by adjustable
Finger roll which is driven by servo motor.
The CBF feeding system transfers a bulky fiber web toward the needle-punching stage. The existing configuration description lists an antistatic PVC belt and an adjustable, servo-driven finger roller. Review the feeder together with the upstream web-forming equipment and downstream needle loom before selecting a configuration.
| Selection Item | Information to Send HSN |
|---|---|
| Web material | Fiber type, blend, fiber length, recycled content and photos or a representative web sample. |
| Web dimensions | Required working width, incoming thickness, target delivery thickness and basis weight with its unit stated clearly. |
| Line speed | Normal and maximum operating speed, required adjustment range and upstream/downstream speed requirements. |
| Machine connections | Upstream machine and needle loom models, working widths, entry/exit heights and connection drawings. |
| Controls and utilities | Available electrical supply, line control interface and any synchronization requirements for technical review. |
| Installation space | Workshop layout, access, maintenance clearances and photos of the intended installation position. |
Confirm web basis weight, thickness and line-speed conditions together. Final equipment dimensions and achievable feeding performance depend on the material and agreed configuration.
Send your web sample information, required working width, line speed and needle loom connection details to HSN for a configuration review.
