HSNZD800
HSN
84440050
800 mm working width; inverter-controlled feeding; output conveyor not supplied
Textile Waste Recycling

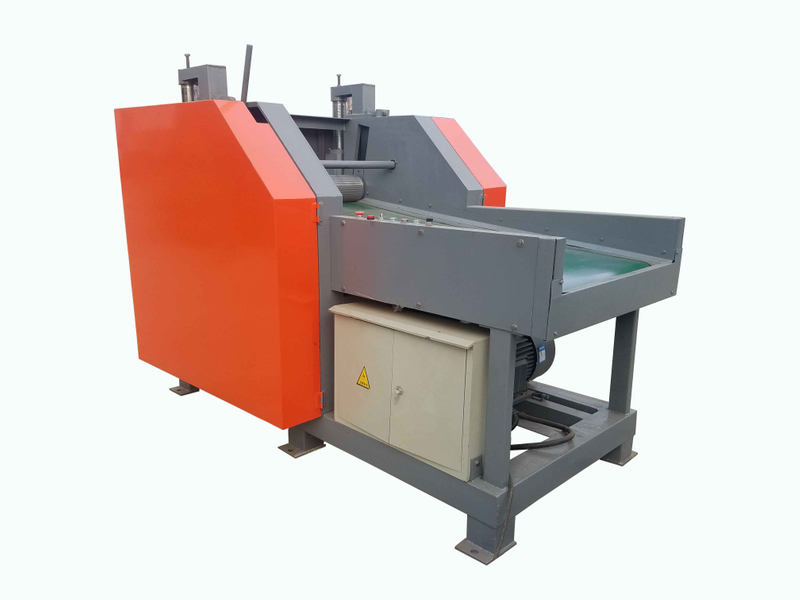

The HSNZD800 uses reciprocating guillotine shearing and inverter-controlled input feeding to cut suitable yarn waste into smaller lengths before downstream opening or recycling.
Specify fiber composition, yarn count, twist, incoming length, bundle density, sizing, coatings and contamination. Describe whether the feedstock is loose yarn, tangled waste or prepared bundles. Confirm sorting, feeding preparation and blade suitability on representative samples.
Agree target cut length, acceptable length variation, throughput and downstream requirements during trials. Cutting does not remove sizing or recover opened fiber by itself. The reference output cannot be assumed for every yarn, twist level or feeding condition.
| Item | HSNZD800 Reference Specification |
|---|---|
| Model | HSNZD800 |
| Cutting action | Reciprocating guillotine shearing |
| Working width | 800 mm |
| Listed blade lifting height | 100 / 150 mm; confirm arrangement for the project |
| Listed cutting frequency | 120 cuts/min |
| Cutting length | Adjustable; confirm target length through material trials |
| Cutting motor | 15 kW, 6-pole |
| Input conveyor motor | 2.2 kW, 4-pole inverter motor |
| Input conveyor belt | 1800 x 830 mm |
| Reference production rate | 200-300 kg/h; material and cut-length dependent |
| Listed machine dimensions (L x W x H) | 4850 x 1500 x 1750 mm; final layout depends on supplied configuration |
| Listed machine weight | 2100 kg; confirm for the supplied configuration |
| Output conveyor belt | Not supplied |
| Output conveyor motor | Not supplied |
| Cutting-length tolerance | ±0.1 mm |
The listed configuration does not include an output conveyor or its drive motor. Confirm blade lifting arrangement, controls, guards, interlocks and electrical supply in the final technical offer. Supplied configuration and layout must be agreed for the actual project.
Provide space for feeding, discharge, maintenance and material handling. Confirm dust extraction requirements for the actual feedstock. Packing dimensions, shipping gross weight and container requirements are confirmed separately for the actual shipment.
Send your country, material photos and samples, fiber type and form, target cut length, required hourly output, downstream process, power supply and available space. Plan material collection for the configuration without an output conveyor; any additional discharge equipment must be separately agreed in the supply scope.
Price, delivery, installation support and warranty terms are quoted for the agreed project scope and confirmed in the formal quotation and contract.
Request an HSNZD800 Quote | Discuss a Fiber Cutting Trial
