HSN3900
HSN

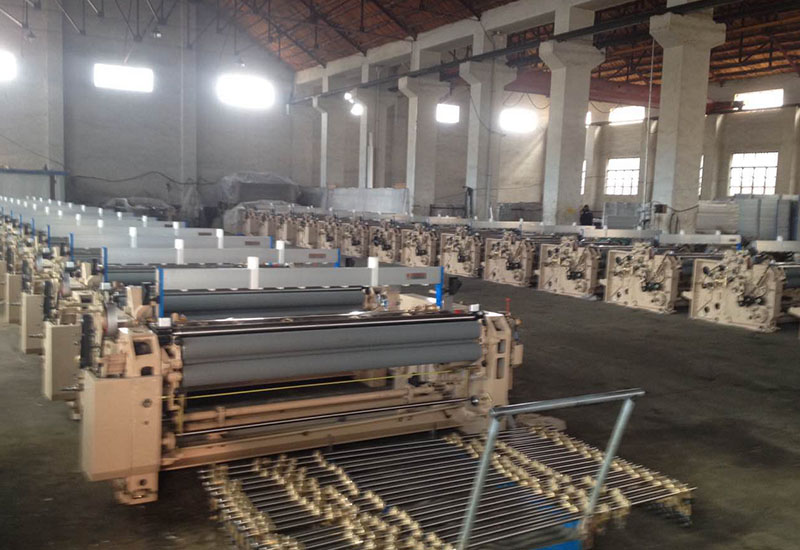

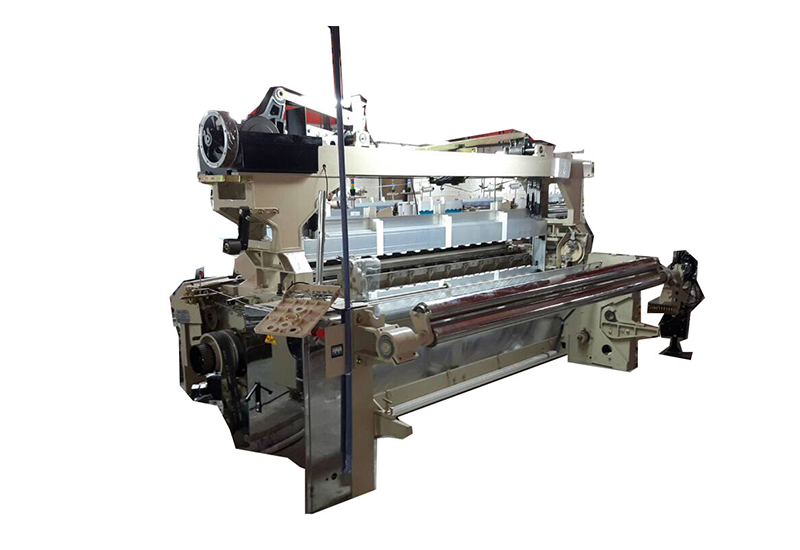

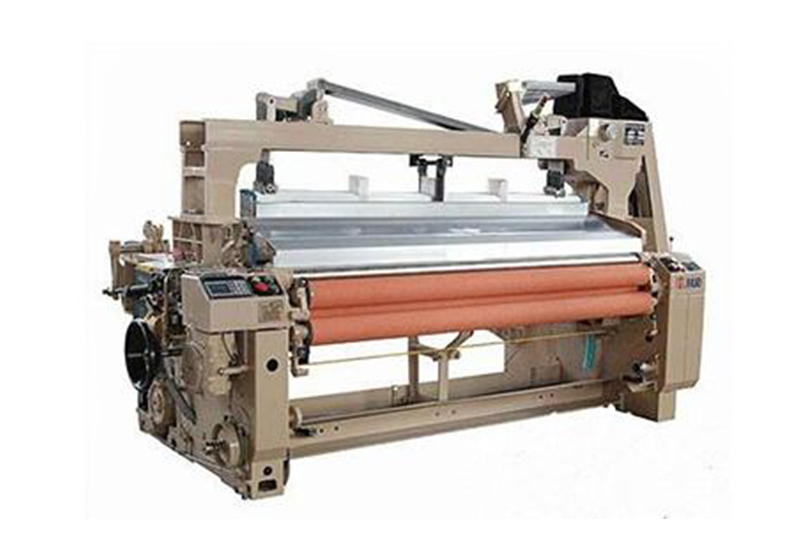

Water Jet Weaving Loom
Technical specification
Working range | Polyester yarn |
Reed space (cm) | 280 |
Filling selection | 1 color (single nozzle single pump) |
Weft density range | 5-60pick/cm |
Feeder | Mechanical or electronic |
Motor | 2.8kw (Guo fang brand) |
Shedding type | Plain shedding (2-6pcs heald frame) |
Let-off | Electronic let off(ELO) |
Mechanical let-off(MLO) | |
Let off transmission: Shimpo Japan | |
Take-up | Mechanical take up(MTU) |
Electronic take up(ETU) | |
Upper and down temple(according to the variety of fabric) | |
Waste filling removel | Mechanical take-up 3 roller |
Cutter | Mechanical cutter |
Operation | Start by rush start motor & stop by electromagnetic brake at programmed position |
Electrical components: Jin Nuo brand | |
One cycle reverse rotation | |
Filling Insertion | Single Pump (Plunger type spring pressure system) |
Temple | Top mounted ,2 barrel type with 2 ring each |
Water suction | Slit tube suction system |
Selvage yarn catching unit | Spindle twisting system |
Spare parts
Steel reed: 1 piece
1.5pcs 800mm beam heavy and thickness
1.5pcs alluminium cloth roller
6000-10000pcs heald wire
Heald frame 2-16pcs
Extra spare parts 5%
HSN3900 is listed for polyester-yarn weaving. Match the quoted loom configuration to the actual yarn and fabric construction rather than selecting on reed space alone.
| Project Information | Details to Send HSN |
| Fabric and yarn | Fabric sample or construction sheet; warp and weft yarn material, count or denier and yarn specifications. |
| Width and construction | Required reed space and finished fabric width, weave structure, warp density and weft density. |
| Weft and shedding arrangement | Required weft selection, feeder arrangement, shedding requirements and heald-frame configuration. |
| Production target | Required fabric metres per shift at the stated width and density, quality criteria and operating hours. |
| Factory conditions | Electrical supply, water supply and quality, available layout and any water handling or treatment requirements. |
| Quotation and trials | Destination country, installation schedule, sample-trial requirements, selected let-off/take-up options and confirmed accessory quantities. |
Reed space is not the same as finished fabric width. Mechanical and electronic feeder, let-off and take-up entries in the existing table should be confirmed as selected options in the quotation, not assumed to be supplied together. Confirm the listed beam, cloth-roller and spare-part quantities before ordering.
No operating speed or fabric-output guarantee is stated here. Actual production and material suitability should be reviewed using the intended yarn, fabric construction and factory conditions. Send your fabric sample and project requirements for a configuration review and quotation.
