HSNQ18JO
HSN
84798999
Cable insulation stripping; listed cable range 1-35 mm
Copper Recycling

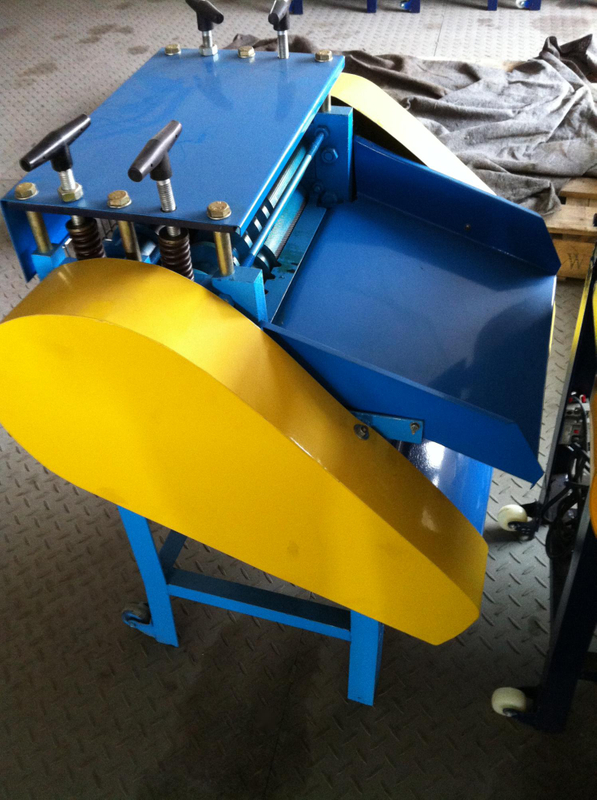

HSNQ18JO is designed to remove insulation from suitable waste copper wire and cable. Its listed specifications include a 1-35 mm cable diameter range and 2.2 kW power. Cable construction and condition should be reviewed before selecting a configuration.
For a mixed waste-cable stream, identify the main cable types and prepare representative samples for each construction. Include the condition of the cable and any connectors, shielding or armor. Confirm which materials require separate preparation or an alternative machine before purchase.
| Item | Listed specification |
|---|---|
| Model | HSNQ18JO |
| Power | 2.2 kW |
| Listed voltage | 220 V / 380 V; confirm supplied configuration, phase and frequency |
| Listed cable diameter range | 1-35 mm; suitability subject to cable review |
| Blades | 13 |
| Feed holes | 2+10 |
| Listed linear processing rate | 30 m/min; actual rate depends on cable and operating conditions |
| Dimensions | 60 x 58 x 84 cm |
| Weight | 80 kg |
The listed 30 m/min figure is a linear processing rate, not a guaranteed mass throughput in kg/h. Confirm sample suitability, electrical configuration and final supplied specifications in the formal quotation.
| Review item | Information to provide |
|---|---|
| Cable samples | Clear cross-section photos or samples covering cable diameter, construction and condition |
| Conductor and insulation | Conductor type, number of cores, insulation material and thickness, and any shielding or armor |
| Processing requirement | Cable mix, expected workload and desired stripping result |
| Site power | Available voltage, phase and frequency |
| Quotation and trials | Quantity, destination, sample-test requirements and requested delivery schedule |
Process only disconnected, de-energized waste cable. Follow the supplied operating instructions and use trained operators.
Inspect the machine and guards before operation, select a suitable feed opening, and keep hands, loose clothing and tools clear of cutting and feeding areas.
Remove connectors and unsuitable attachments during cable preparation before feeding.
Stop the machine, isolate the power supply and wait for all moving parts to stop before clearing a blockage, cleaning, adjusting or servicing it.
If the conductor is damaged, insulation is not released or cable slips, stop processing and have the setup inspected according to the manufacturer instructions. Do not grind or modify blades or rollers without manufacturer-approved guidance.
Request a machine selection review: Send HSN cable photos or samples, diameter range, insulation details, site power supply, quantity and destination.
