Waste Copper Cable Recycling Machine

  • HSNQ400
  • HSN
  • 84440050
  • Easy operation and safe production, Less electric cost
  • Copper Waste Recycling
Availability:
Quantity:

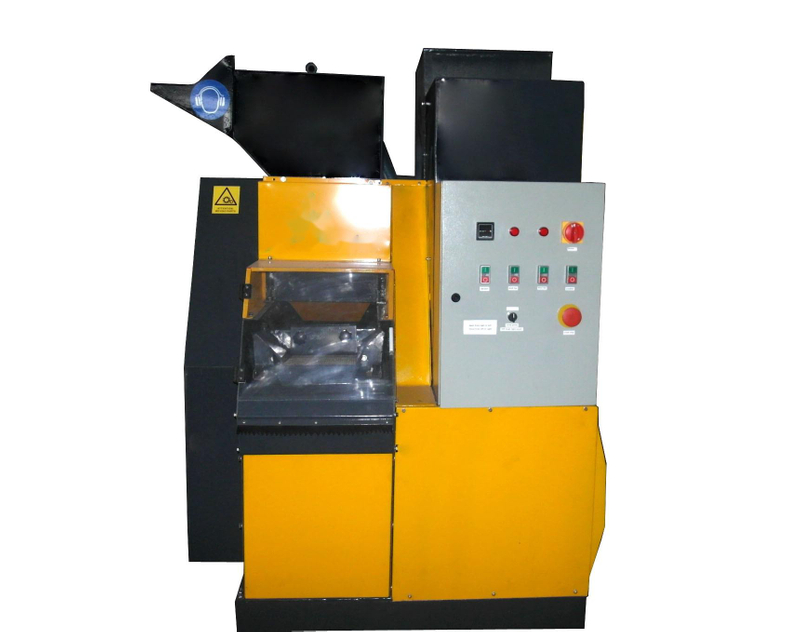

HSNQ400  Waste Copper Cable Recycling Machine

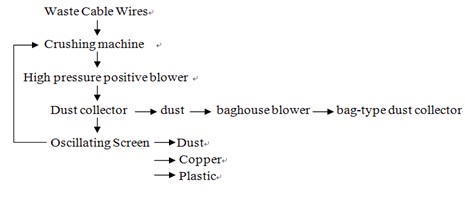

Process of copper wire recycling machine

Brief Introduction
HSNQ400 Waste Copper Cable Recycling Machine, also called copper granulator, had been developing and manufacturing since 2002. It can deal with car cable, communications cable and miscellaneous cables. It consists of crusher, conveyor and separator, which is integrated on one compact unit, also has dust collection system, vibrator, air cleaner, suction fan inside.

this copper wire recycling machine adopts PLC control system.

Plastic & copper is different in density, the crusher can stripe the plastic and smash the copper (by high quality blade), then the plastic and copper can be separated by vibrator & suction fun together, the copper comes out from front outlet, plastic comes out in the other side, dusts will be sent by dust fan to dust collector.

We have different capacity machine for you choose. And we also offer customized service.

Main Parts & Technical Specifications

Serial number

Description

Quantity

Power

Remark

1

Model 400 crusher

1 set

7.5 kw


2

Vibrator blower

1 set

2.2 kw

3

Dust collector blower

1 set

0.55 kw

4

Vibrator motor

2 sets

2x0.18 kw

5

Plastic collector blower

1 set

2.2 kw

6

Blade

10+2 pcs



Total power:12.81kw

Production: 80-100kgs/hour

Machine Size: 150x150x190cm

Machine Weight:750kgs



Application
This machine is used for separating copper from all kinds of waste copper cable, telephone cable. (It can deal with 0.5-20MM scrap cable, single conductor diameter of 0.2-0.3mm best.)

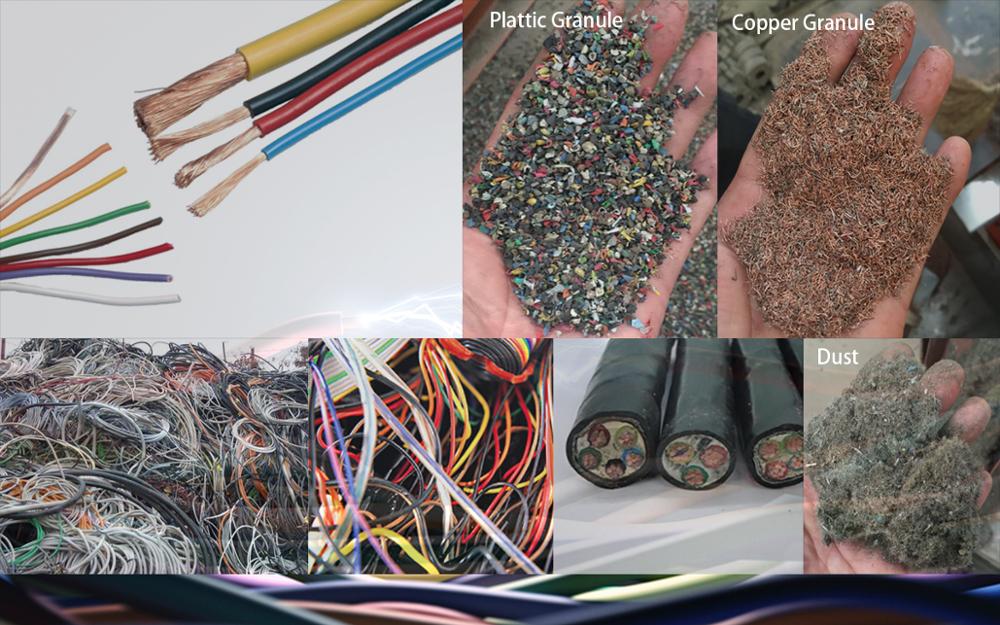

Copper Cable recycled (2)

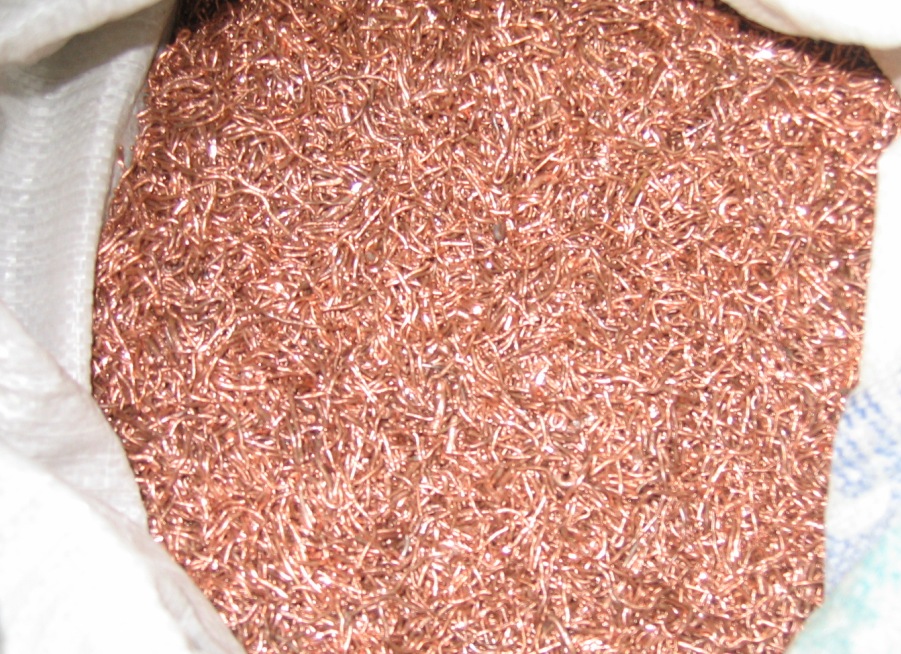

Copper Cable recycled (1)
