HSN720
HSN
84481900
Mature technology and Economic investment
Textile Waste Recycling
Brief Introduction

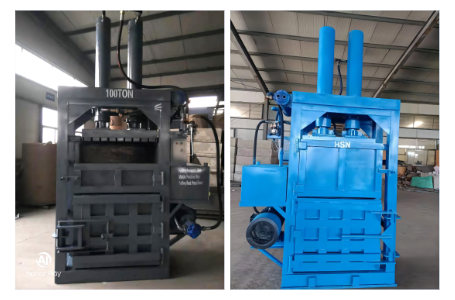

HSN720 Hydraulic Baling Press Machine, is one heavy and strong baling press machine, specially developed for baling press cotton waste, it controlled by photoelectric system, it can be completed with cotton fiber compactor or condenser to cotton bale automatically.
Technical Specifications
MODEL | HSN720 | |
1 | Pressing Force (Ton) | 100 |
2 | Size of Baling Chamber (mm) | 610x990x1430 |
3 | Size of Bale (mm) | 610x990x1100 |
4 | Max. Weight of Bale (kg) | 230 |
5 | Baling Quantity per Hour | 3 to 4 |
6 | Max. Working Stroke of Cylinder (mm) | 1100 |
7 | Max. Working Pressure of Hydraulic System (MPa) | 18 |
8 | Oil Cylinder Diameter (mm) | 2x180 Thick |

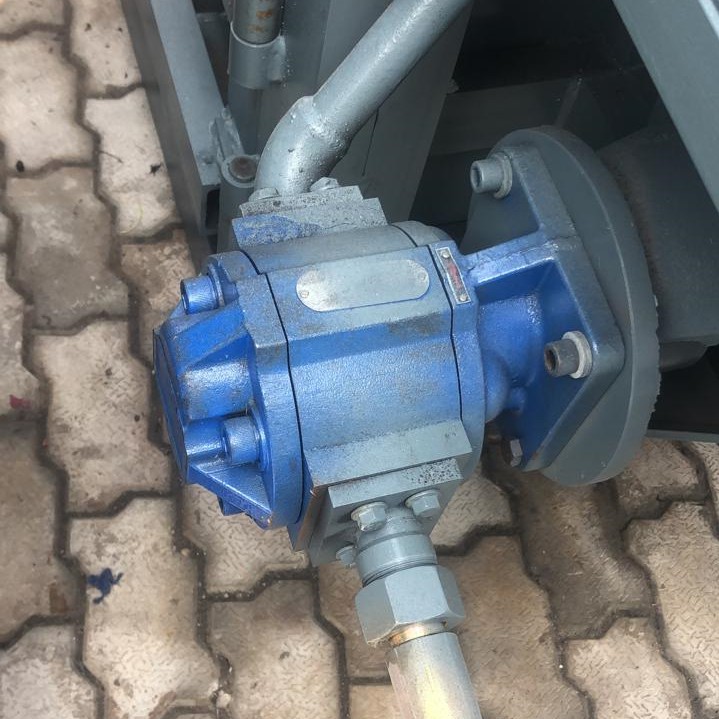

9 | Oil Pump Type | 2100 gear pump |
10 | Motor Power (kw) | 18.5 |
11 | Dimension of Machine (mm) | 1950x1000x3300 |
12 | Weight of Machine (kg) | 2150 |
Application
HSN720 Hydraulic Baling Press Machine is mainly applied for packing cotton or cotton droppings in spinning mill, also best suitable to press waste cotton, coir fiber used clothes, polyester, short -cut fibers, jute.
