HSN3200
HSN
84440050
Large Production and High Efficiency
Textile Waste Recycling
| Quantity: | |
|---|---|

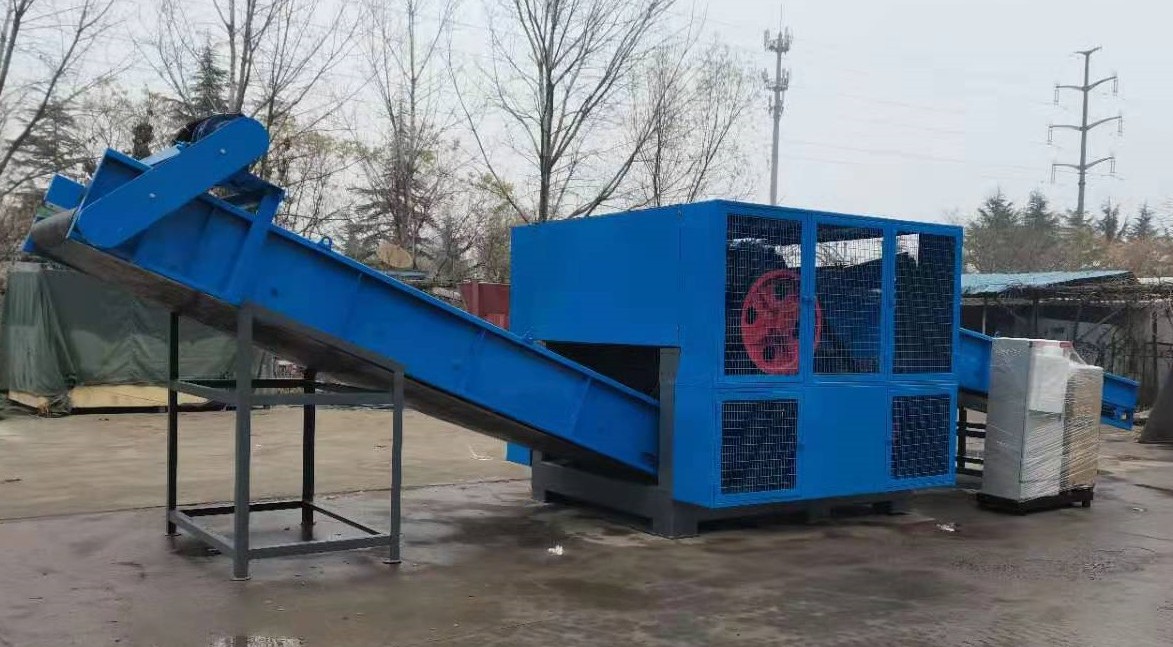

HSN3200 Textile Waste Shredding Machine
Brief Introduction
HSN3200 Textile Waste Shredding Machine with high-speed rotary blades, which also be known as cutting machine or shearing machine, is one of our latest products, adopted the international leading design of oblique torsional rolling knifes moving & shearing onto the fixed-point of the fixed blade to realize continuous high-speed shear.
Technical Specifications
HSN Textile Waste Shredding Machine | ||
MODEL | HSN3200 | |
1 | Motor for cutting | Two sets 8P45kw |
2 | Motor for transferring | 4P5.5kw inverter motor |
3 | Gear box Model | XWD5-23-7.5KW |
4 | Ratio of gear box | 23:01 |
5 | Pulley of motor of cutting | Φ220mm |
6 | Moving blade Roller | Φ1000*1600mm |
7 | Control box | individual |
8 | Input belt | 4000*1500mm |
9 | output belt | 4000*1500mm XWD5-43-5.5KW |
10 | Moving blade | Alloy steel 16pcs |
11 | Fixed blade | Alloy steel 4pcs |
12 | Machine size | 10000*3300*2400 |
13 | Cutting Size | 30cm Adjustable |
14 | Feeding Thickness | 3-20cm |
15 | Feeding Roller system | BWD3-87-2.2KW |
16 | Production | 8000kg/h |
Application
HSN3200 Textile Waste Shredding Machine is used for cutting and recycling waste clothes, cotton yarn, discarded clothing cotton, waste hemp, chemical fiber, linen, leather, plastic film, paper, fabric, textiles, nonwoven fabrics and so on.
