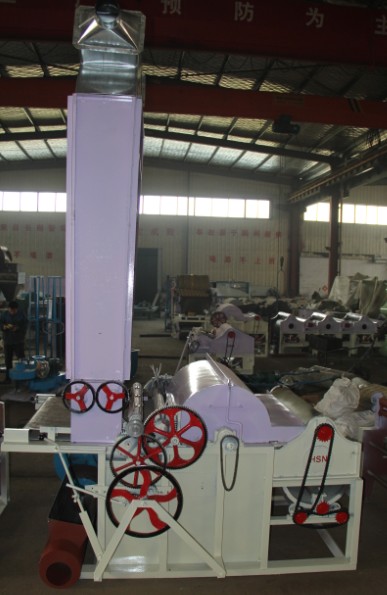

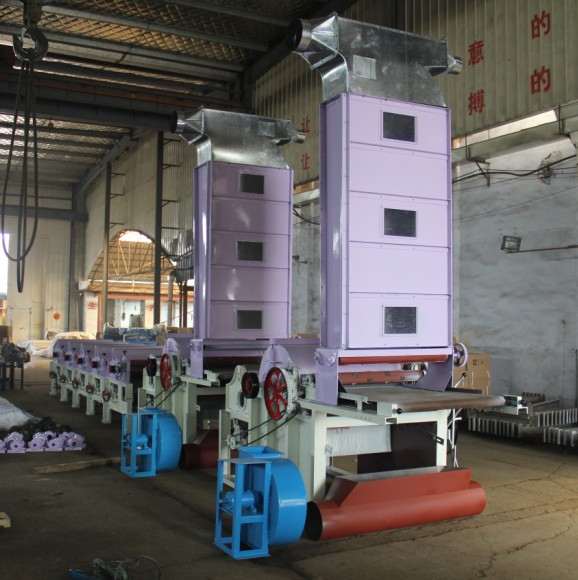

Textile Waste Recycling Machine for OE Spinning

  • HSN218

  • HSN

  • 84451190

  • Mature technology with advance Safty Protection

  • Textile Waste Recycling

Availability:
Quantity:

Fiber Opening and Blending Machine

Model: HSN218

2 openers of 630mm rollers with cotton box and 5 cleaners of 250mm rollers
Total 7 rolls machine
Banyan waste cotton, hard waste recycling machinery, with chute feed system for efficient working. This machine is suitable for banyan waste cotton / poly fabric waste / yarn waste. There are two chute feed systems for efficient opening of waste material, its output products have better spin value for spinning yarn above 10s count, this machine have two 630mm openers and five 250mm cleaners for thread less cotton fibers.
Specification

Output is 100 to 140 kgs per hour on 100 % cotton material
Staple length of fiber is 14 to 22mm


Working Principle

Input feeding material manual by conveyor lattice of first opener, then after auto continuous recycling / opening, the unopened fabric waste which dropped in bottom of the machine is carried by bamboo convey or screen and that unopened material will suctioned by fan to first opener then to second opener by 2 chute  feed cotton boxes. Auto continuous recycling / opening is carried out till the textile waste convert into fibers.



Detail of electrical

Main Motor for first Opener: 22kw
Main Motor for second Opener: 18.5kw
Main Motor for first cleaner of 250 mm: 7.5kw
Main Motor for 2nd to 5th cleaners: 5.5 kw
Transport fans for both chute feed cotton boxes: 4kw each

Suction Fan: 7x1.5kw

Total power need: 88.50kw
Size of machine (L*W*H): 14000*1100*1550mm

Requirement for workshop: 6 meter by 22 meter
Machine operator: two operator for one shift

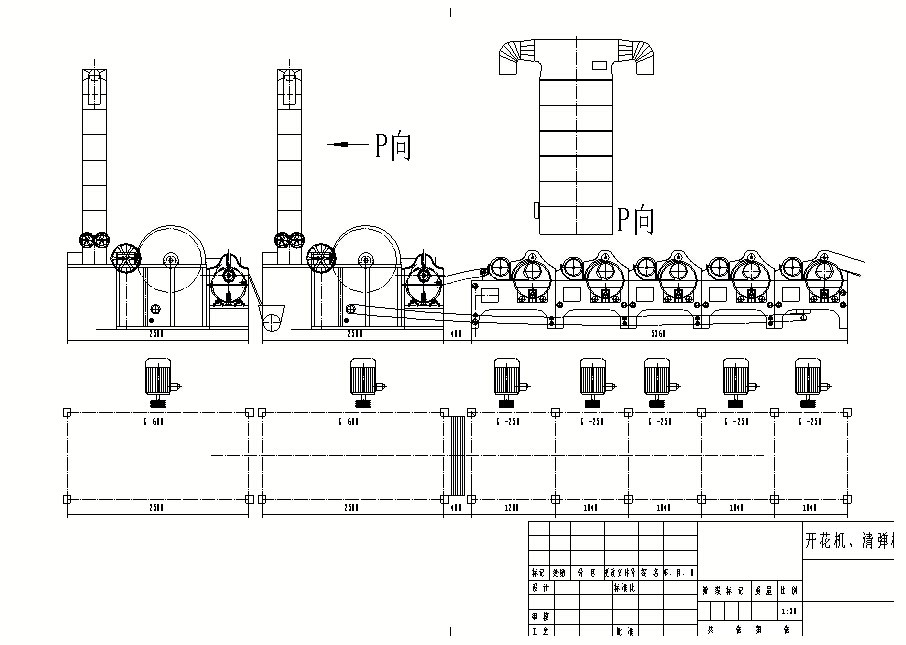

layout of 218


Textile Waste Recycling Machine CE-MD Certificate
