HSN650B600NW
HSN
84451190
Mature technology with advance Safty Protection
For non-woven industrial
| Quantity: | |
|---|---|

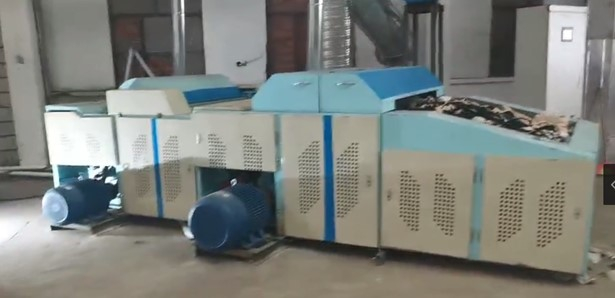

Textile Waste Recycling Machine for Nonwoven materials
Brief Introduction
One unit HSN650B600NWNL there are one opener with 650mm licker in roll, and one opener with 600mm licker in roll, this machine is specially designed for nonwoven industrial, with big capacity, more safety and reliability.
Technical Specifications
No | Item | Description | |
1 | Main Machines | HSN650BW Opener +HSN600NW Opener | |
For spinning industrial | For non-woven industrial | ||
2 | Size Per Machine | HSN650BW: 3600*1700*3900mm/HSN600NW: 2160*1700*4300mm | |
3 | Width of Working | 1300mm | |
4 | Working Roller | HSN650BW Opener: φ650mm/Teeth wire or Steel Pins HSN600NW Opener: φ600mm/Teeth wire | |
5 | Main Motor | 37kw 6 winding +22kw 6winding / Siemens/ Or other high-quality Motor | |
6 | Capacity | 400-600kg/h（affected by operating, feeding and raw materials etc.） | |
7 | Feeding Gearbox | HSN650BW Opener: 3.0KW/ HSN600NW Opener: 2.2KW | |
8 | Transfer Fan | HSN650BW Opener: None / HSN600NW Opener Output: 4.0KW | |
9 | Dust Suction Fan | One big fan for both openers: 4.0kw | |
10 | Dust Collector system | One group of 39 roots dust collector bag type | |
11 | Control Box | Main motors soft start, all motors overload protection, PLC, Photoelectric sensor feedback control and frequency converter control. Siemens/ Or other high- quality electronics | |
12 | Bearing | KOYO/ Or other high-quality Bearing | |
13 | Installation Size | 5800*1950*1450（mm） | |
14 | Total Weight | 5880KG | |
15 | Lead Time | 35 days | |
