HSN2400B
HSN
84440050
CE
Textile Recycling
| Quantity: | |
|---|---|
Brief Introduction

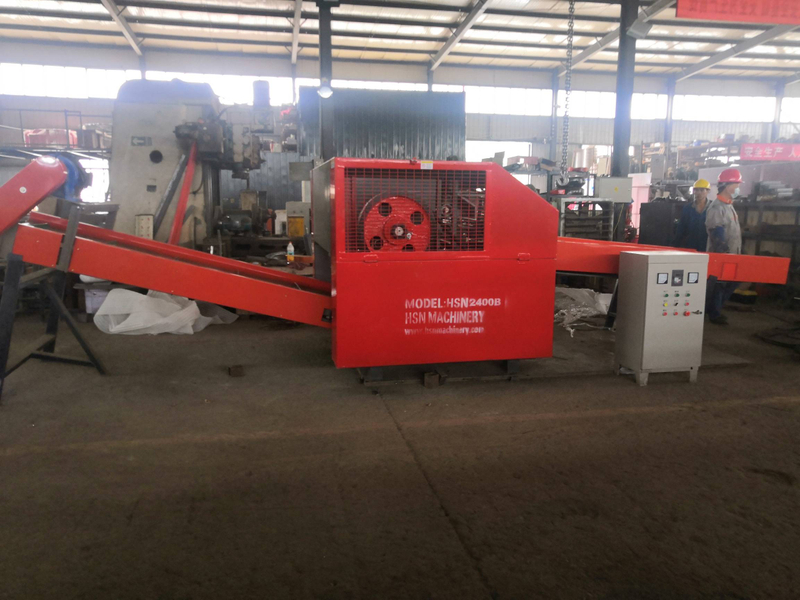

HSN2400B TEXTILE WASTE CUTTER with high-speed rotary blades, which also be known as shredding machine or shearing machine, is one of our latest developed products, adopted the international leading design of oblique torsional rolling knifes moving & shearing onto the fixed-point of the fixed blade to realize continuous high-speed shear.
Main Features
Stable and reliable working performance
High efficiency and easy operation
Technical Specifications
HSN CUTTING MACHINE FOR TEXTILE WASTE CUTTING | ||
NO | MODEL | HSN2400B |
1 | Motor for cutting | 8P 22kw 2sets |
2 | Motor for transferring | 4P 4.0kw inverter motor |
3 | Gear box Model | 135# |
4 | Ratio of gear box | 55:01:00 |
5 | Pulley of motor of cutting | Φ180 |
6 | Moving blade Roller | Φ600*1200mm |
7 | Control box | individual |
8 | Input belt | 3000*1100mm |
9 | output belt | 3000*1100mm |
10 | Moving blade | Alloy steel 8pcs |
11 | Fixed blade | Alloy steel 2pcs |

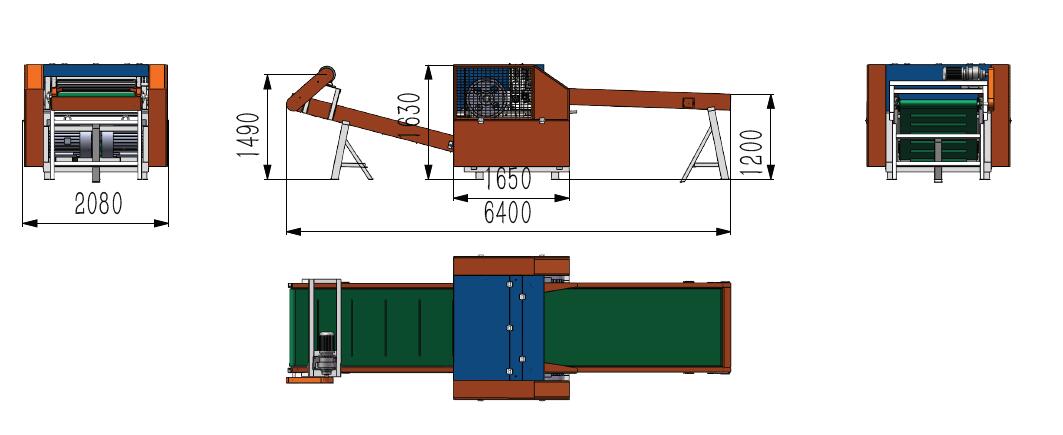

12 | Machine size | 6400*2080*1630 |
13 | Cutting Size | Adjustable |
14 | Feeding Thickness | 3-20cm |
15 | Production | 3000-5000kg/h |
Application
HSN2400B TEXTILE WASTE CUTTER is used for cutting and recycling waste clothes, cotton yarn, discarded clothing cotton, waste hemp, chemical fiber, linen, leather, plastic film, paper, fabric, textiles, nonwoven fabrics and so on.
