HSN212
HSN
84451190
Textile Waste Recycling for Spinning
| Quantity: | |
|---|---|

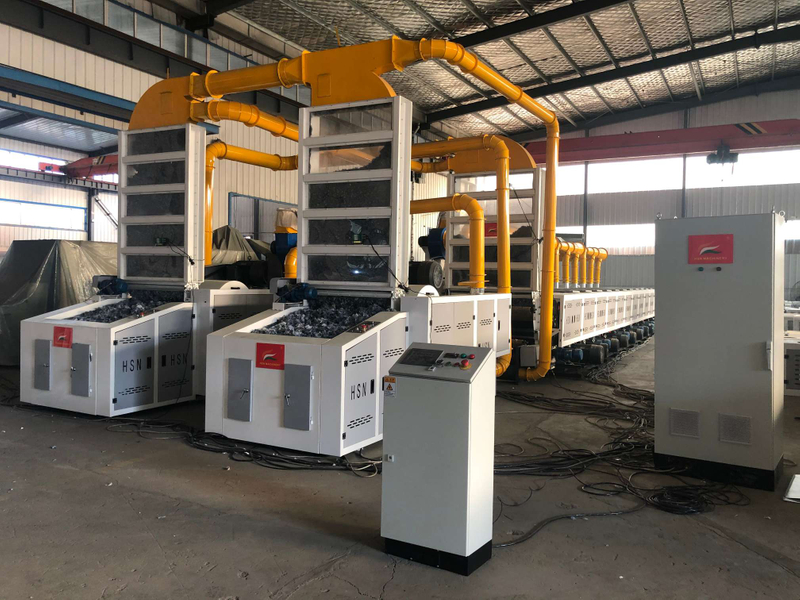

HSN212 Fextile Hard Waste Recycling Machine

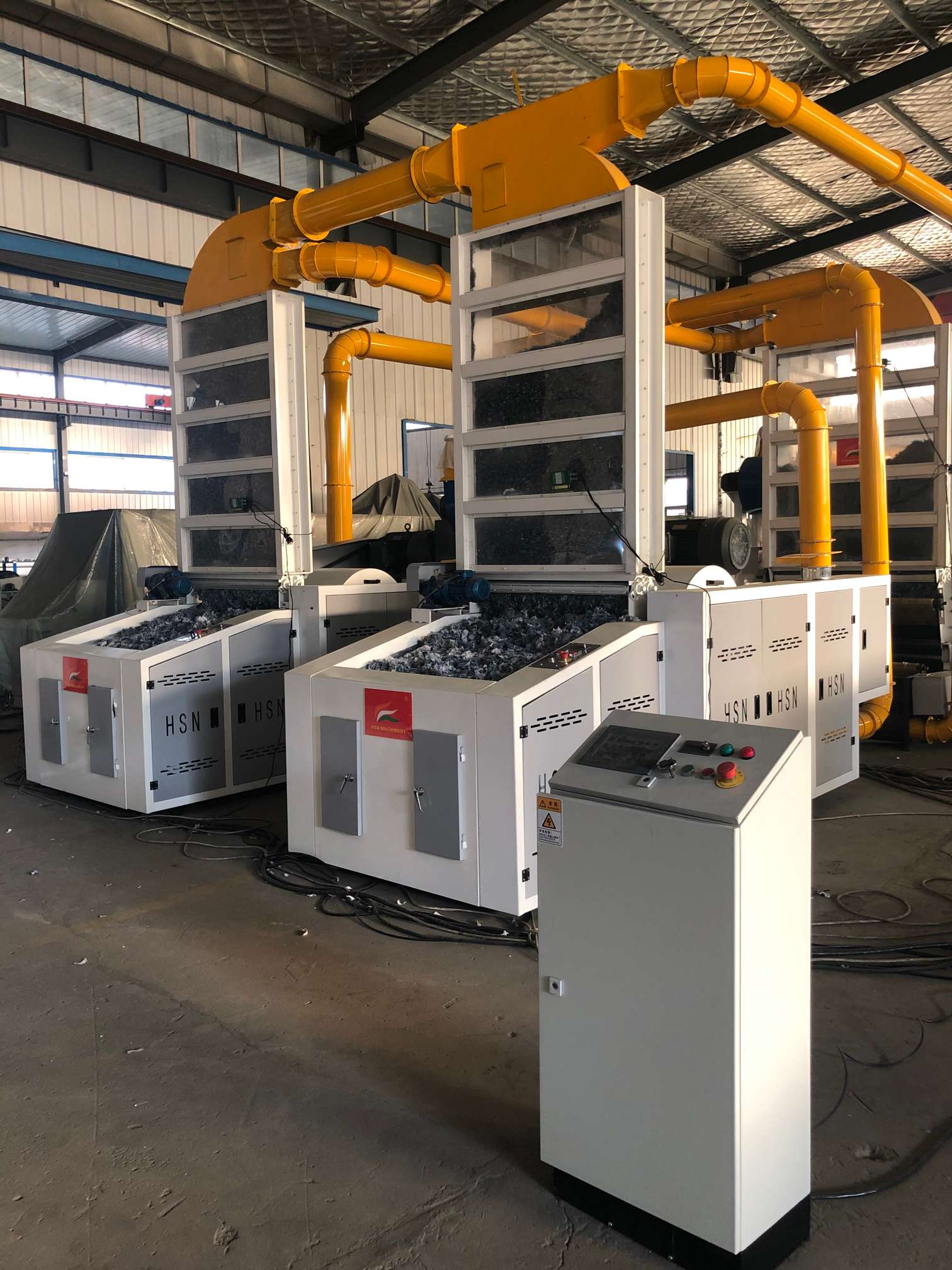

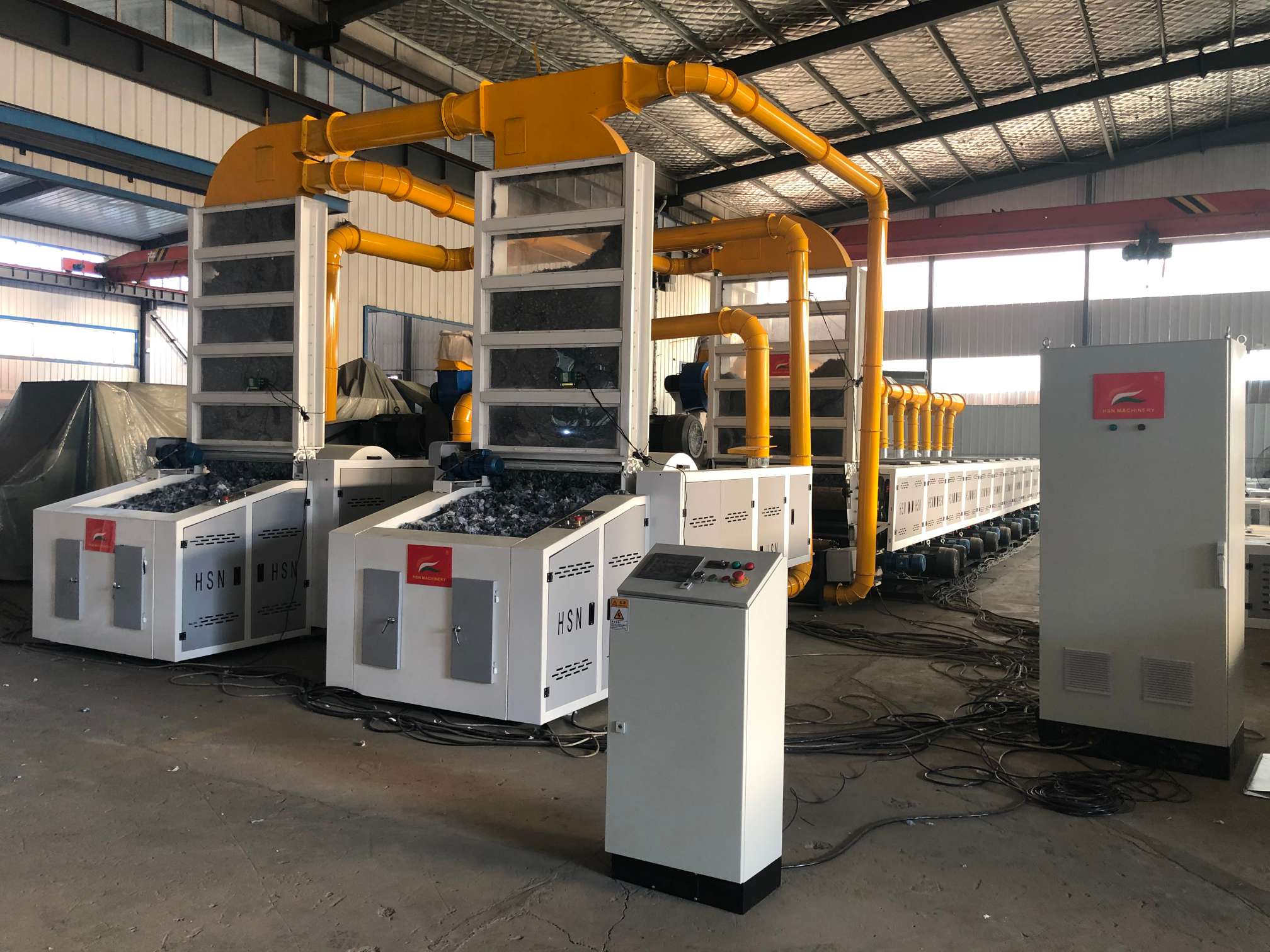

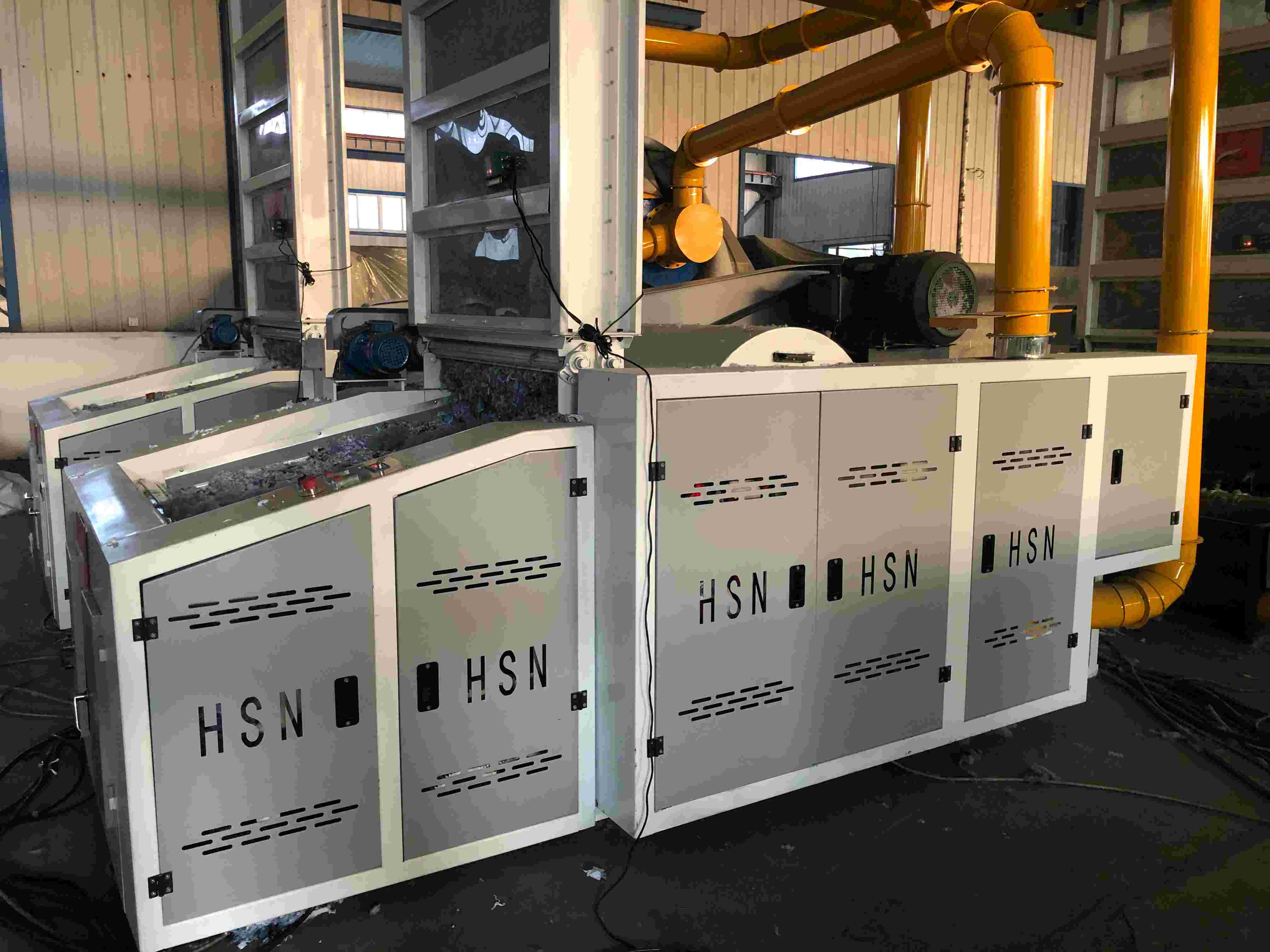

HSN212 Textile Waste Recycling Machine
Brief Introduction

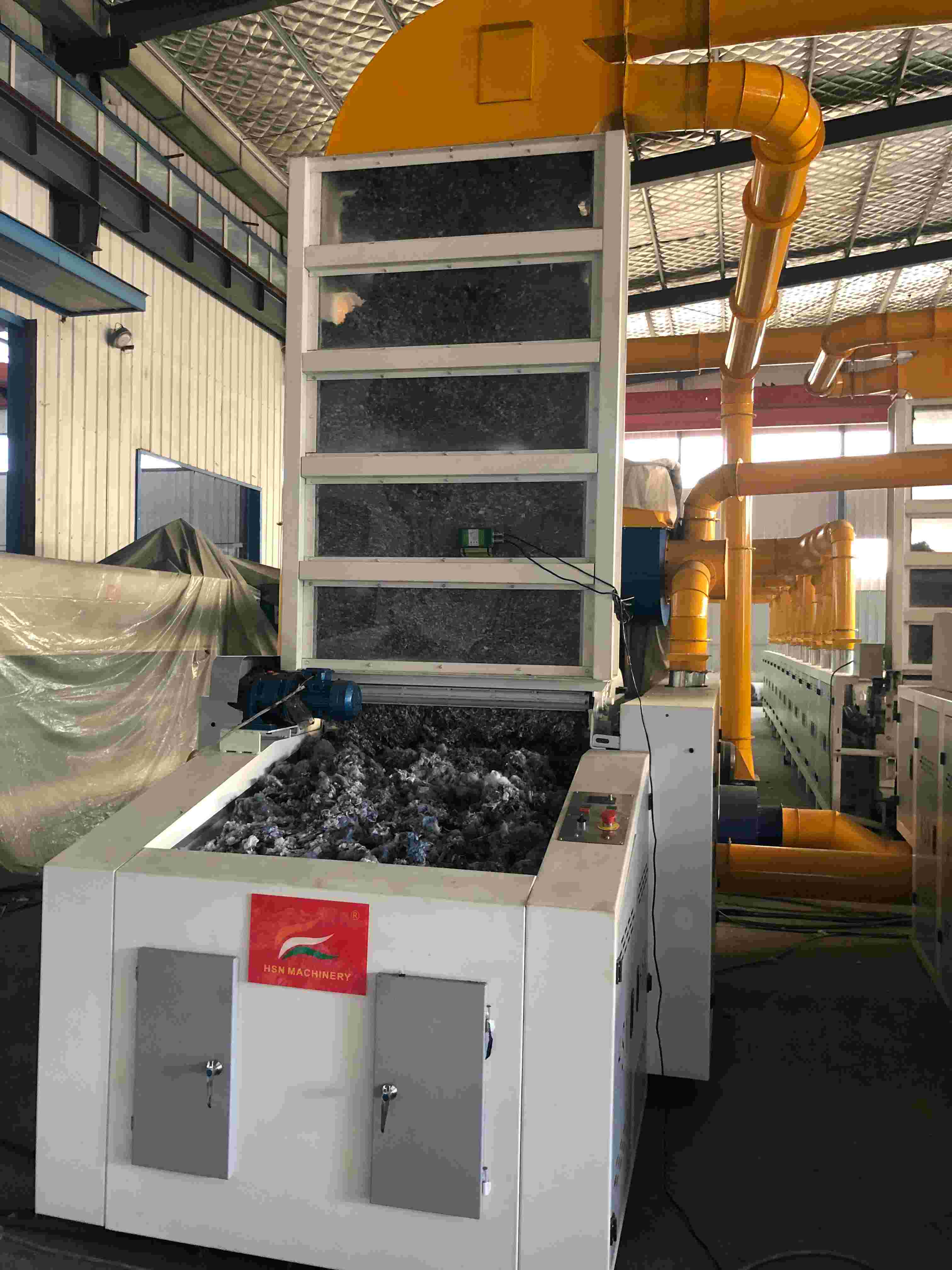

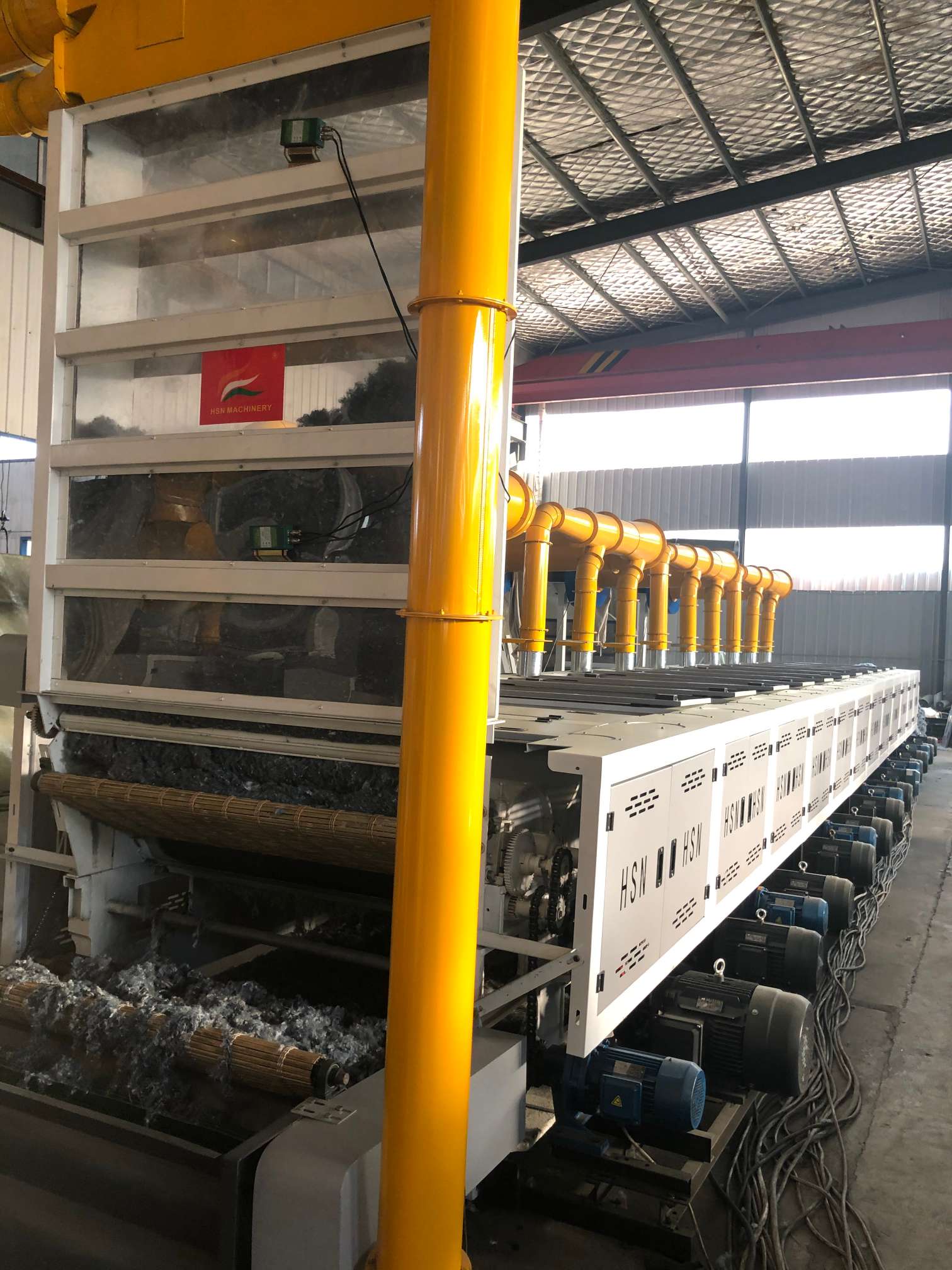

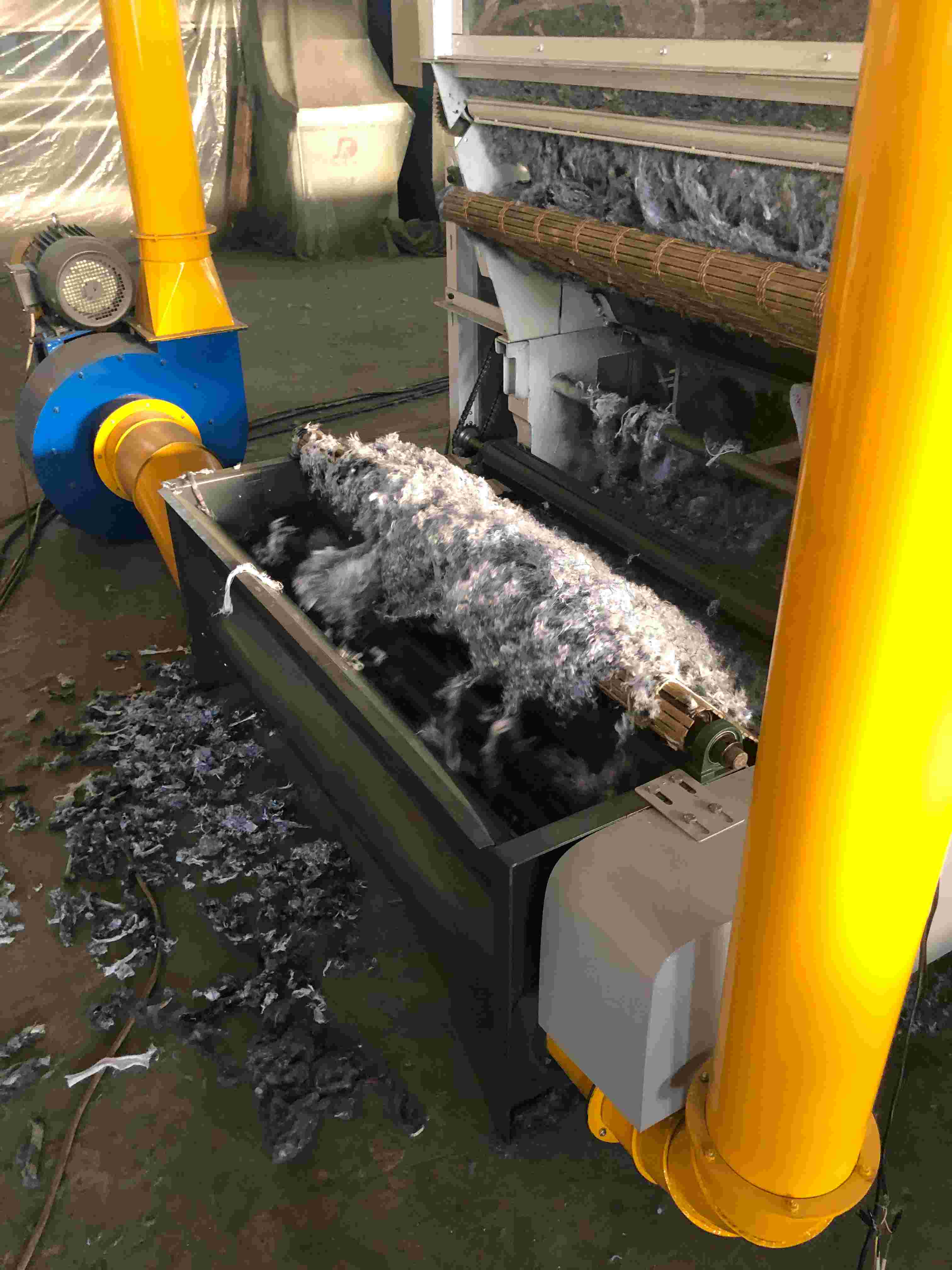

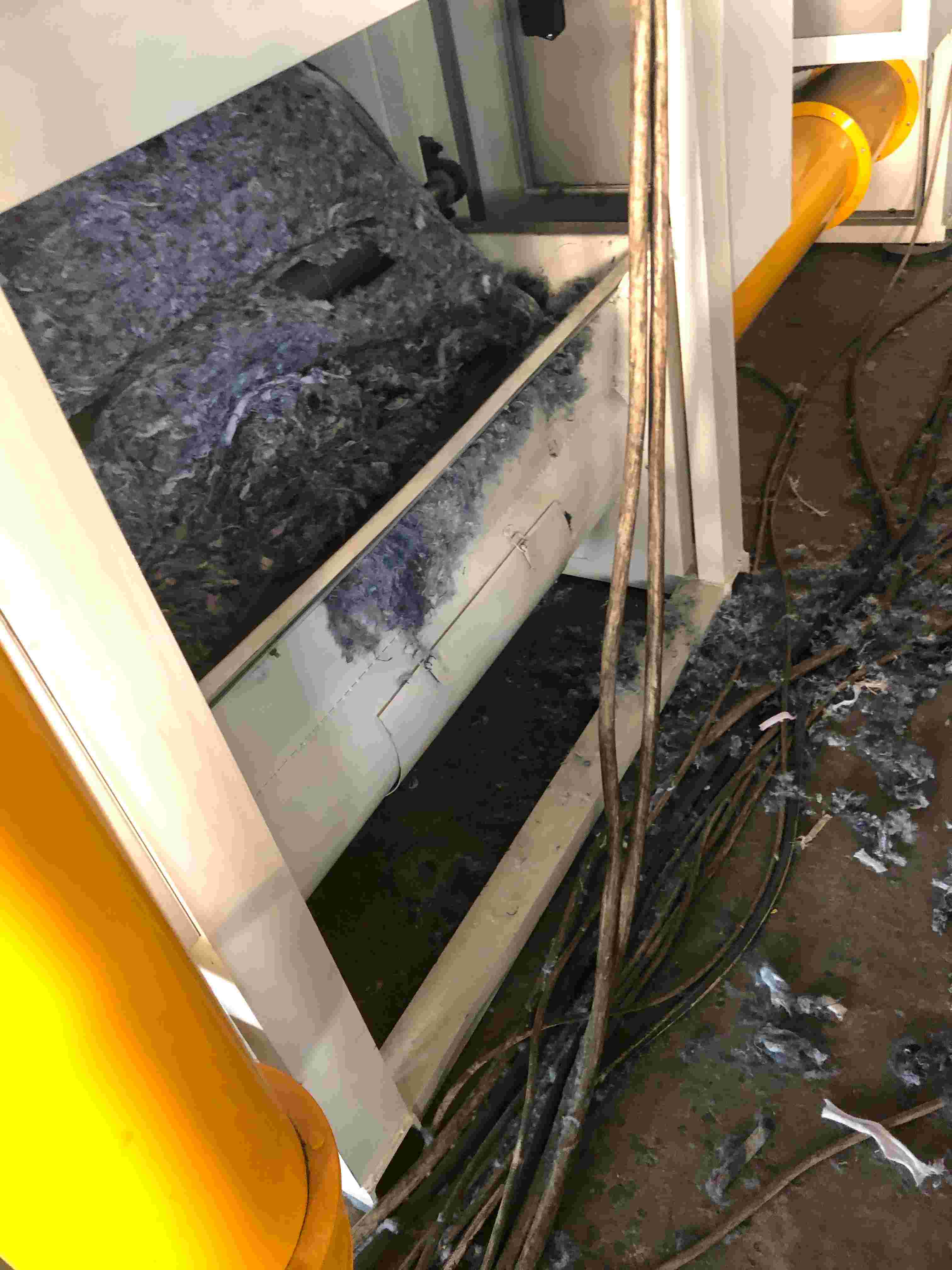

This is a new model based on our HSN62-1210W, we upgraded doffer of two 1.0m openers diameter from 600mm to 680mm, cotton feeding boxes with photoelectric control and one of twelve 1.3m cleaners with diameter 400mm roll, total 14 rolls machine per line, this machine is suitable mainly to recycle textile waste materials whatever fabrics or yarns into fibers for fine spinning purpose, Opening machine consists of a pair feeding roller and an opening doffer, the opening angle of nails mounted on the doffer or higher comb card clothing makes opening more completely, more cleaning machines improve mixing effects, the effects of obviously removing impurity, and also can increase running speed and production.
Mature technology and Economic investment
High efficiency and Low power consumption.
Technical Specifications
Specification | 2 x HSN680 Opener | 1xHSN400W+11xHSN250W Cleaner |
Roll Width / Diameter | 1.0m/680mm | 1.3m/400mm + 1.3m/250mm |
Output | 220~310kg/hour | 220~310kg/hour |
Main Motor | 22kw+22kw | 1x11.0kw+7x7.5kw+4x5.5kw |
Feeding gearbox with motor | 2 x 0.75kw | 6 x 1.5kw |
Dust Suction Fan | 1 x 4.0kw | 4 x 5.5kw |
Material Feeding Fan | 1 x 5.5kw | 1 x 5.5kw |
Dust cage Diameter | 500mm | 500mm |
Weight | 4580kgs | 10830kgs |
Dimension(mm) | 3600*5000*1330+2600 | 13650*1500*1150+2500 |
Application
HSN212 Textile Waste Recycling Machine can be used to recycle most kinds of textile waste ( cotton fabric, polyester fabric, knitting hosiery fabric, denim waste, hard waste tread yarn, clothing and garment rags) and get the fibers from these waste, recycled fibers can used for rotor spinning and other textile industrial to save costs, our HSN212 textile waste recycling machine, normally be installed in spinning mills, garment mills, weaving mills, cotton mills, non-woven mills and fabric cotton waste processing mills.
Layout HSN212
