15x18x40x 3R24-GB222
HSN
84490090
Precise dimensions & Fine tip profiles
Punching Machine in Nonwoven Industry
This product page lists 15x18x40x 3R24-GB222 for woolen felt needle punching. The supplied sample label includes a longer designation. Please provide the full code when requesting a replacement specification review.
| Reference source | Needle designation |
|---|---|
| Current product listing | 15x18x40x 3R24-GB222 |

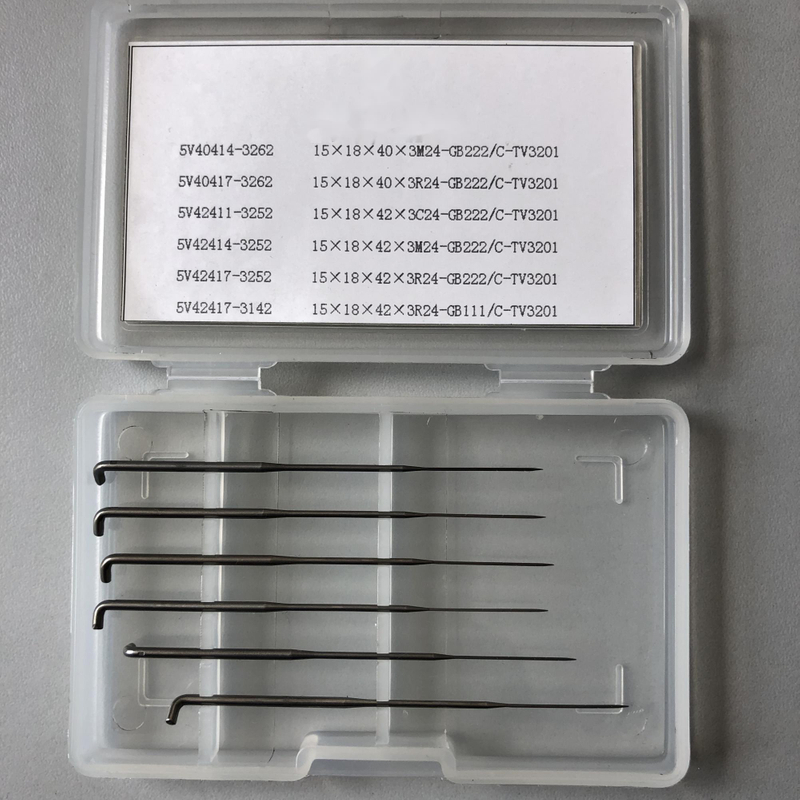

| Reference printed on the supplied sample label | 15x18x40x 3R24-GB222/C-TV3201 |
The listing and sample-label references are shown for identification, not as a declaration of interchangeability. Confirm the suffix, dimensions and working-part details for your machine and felt process before ordering.
| Review item | Information to provide |
|---|---|
| Complete needle designation | Full code including suffixes, label photos, and a sample or dimensioned drawing where available. |
| Machine and needle board | Machine model, mounting arrangement, needle-board details and specification currently in use. |
| Fiber and web | Wool or blended fiber composition, fiber fineness, web basis weight, thickness and any backing material. |
| Felt requirements | Intended felt construction, target thickness and density, surface appearance and acceptance requirements. |
| Process review | Current punching settings and any breakage, wear, fiber damage or surface-mark issues to be reviewed. |
| Order and trial details | Quantity, destination, repeat replacement or new-process trial, and any sample approval requirement. |
Needle suitability, service life and finished felt quality depend on the material, machine settings and operating conditions. A catalog reference alone does not establish finished-product compliance or a guaranteed needle life. Confirm any sample evaluation or trial requirements before bulk supply.
Request a needle specification review: Send HSN your complete code, sample or drawing, machine and board details, felt requirements, quantity and destination.
Brief Introduction
We provide METALLIC NEEDLES for application in the textile industry, such as nonwoven punching factories. Our products are manufactured with a high level of accuracy and in the required quality, particularly as far as accurate grinding and glossing of the points are concerned. Alloy steel and stainless steel Needles also available for applications requiring high wear resistance and non-corrosive properties.
Needles for Synthetic leather fabric
15x18x36x 3.5R30-G333
15x18x38x 3.15M24-G222/M-T2202
15x18x40x 3R24-GB222
15x18x42x 3R24-GB111
Needles for Woolen Felt
15x18x40x 3R24-GB222
15x18x42x 3C24-GB222
15x18x42x 3M24-GB222
15x18x42x 3R24-GB222
15x18x42x 3R24-GB111
Needles for Geotextile & Geosynthetic Clay Liner
15x18x36x 3.5R30-G333
15x18x38x 3.15M24-G222
15x18x40x 3M24-G222
15x18x40x 3R24-GB222
15x18x36x 3R24-LB222
15x16x23x 3.5M30-G333
Needles for Geotextile & Ceramic Fiber
15x16x23x 4C22-K1GB233
15x17x25x 4.5C22- K1GB233
15x16x23x 4.8C22- K1GB233
