Long Arm Quilting Machine

  • HSNL-3

  • HSN

  • 84522190

  • Automatic

  • Home Textile

Availability:
Quantity:

Long Arm Computerized Quilting Machine

Brief Introduction & Main Features
Easily operated by computer with screen at any time during working.

Real-time display the status of quilting and operation method, when finish quilting, needle will return to its start point in unloading area.

Automatic searching function for various patterns of sewing track, so can forward or withdraw needle through operating screen.

With automatic memory function when power is cut off, quilting will return to its normal function immediately after the power is resumed.

Four protection limits make the operation more safely.

Automatic detection function makes the inspection of machine signals easily and conveniently.


Technical Specifications

Model

HSNL-3

Overall Dimension (L x W x H)

4.65x3.2x1.3m

Max Quilting Size

2.3x2.5m (can be adjusted per customer’s requirement)

Type of Quilting

Single needle/Double locking sewing/ big Rotary Shuttle

Max thickness

1350g/m2

Max Rotating Needle Speed

2200PRM

Distance between needles

1.0-7.0mm

Needle

SINGER MR5 18~22#

Power

220V/50Hz   1.5KW

Driven Motor

Servo Motor

Weight

920KG



Application
Widely applied to all sorts of quilts, blankets, mattress covers, sleeping bags, bed covers and curtains etc.

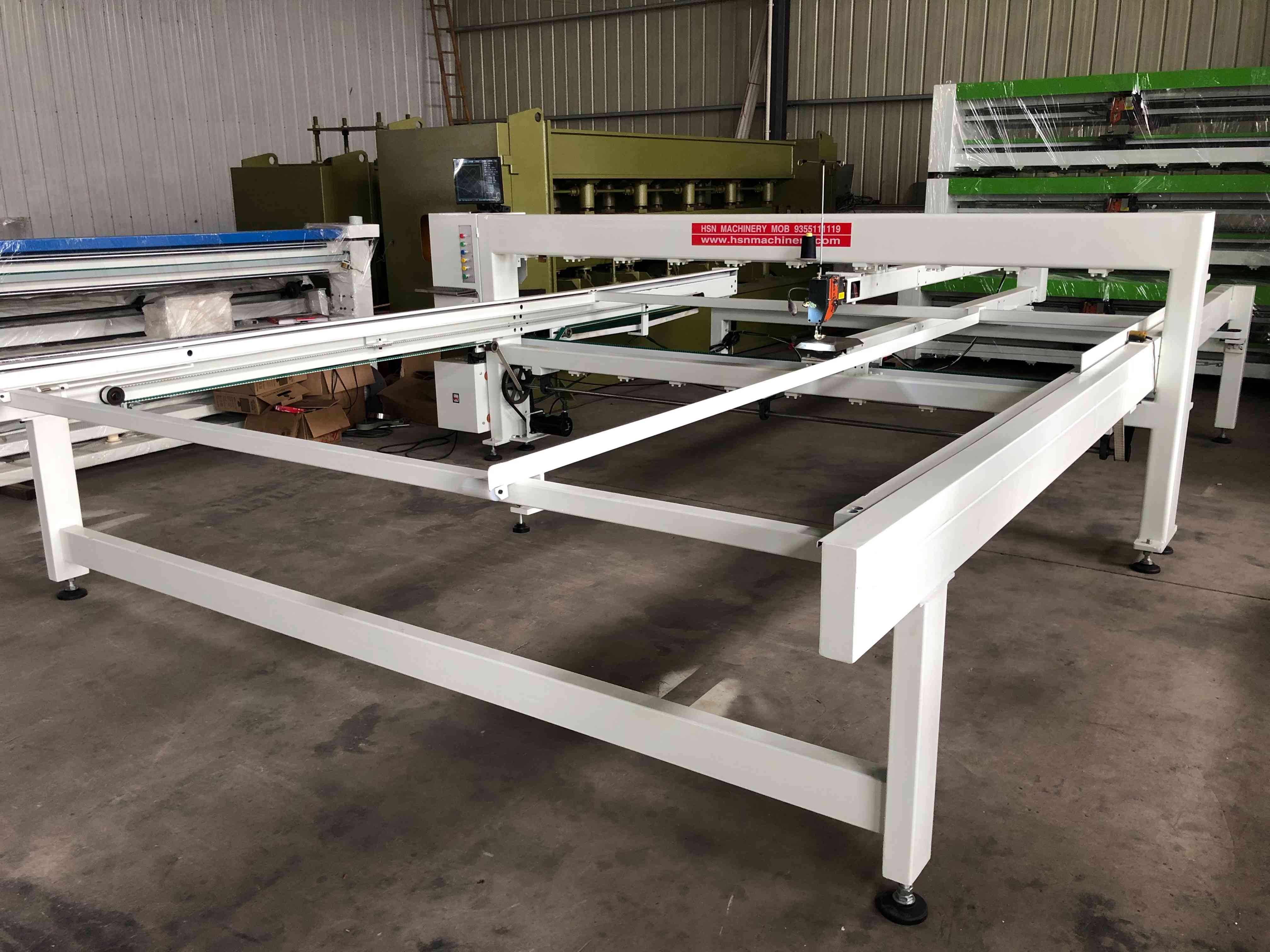

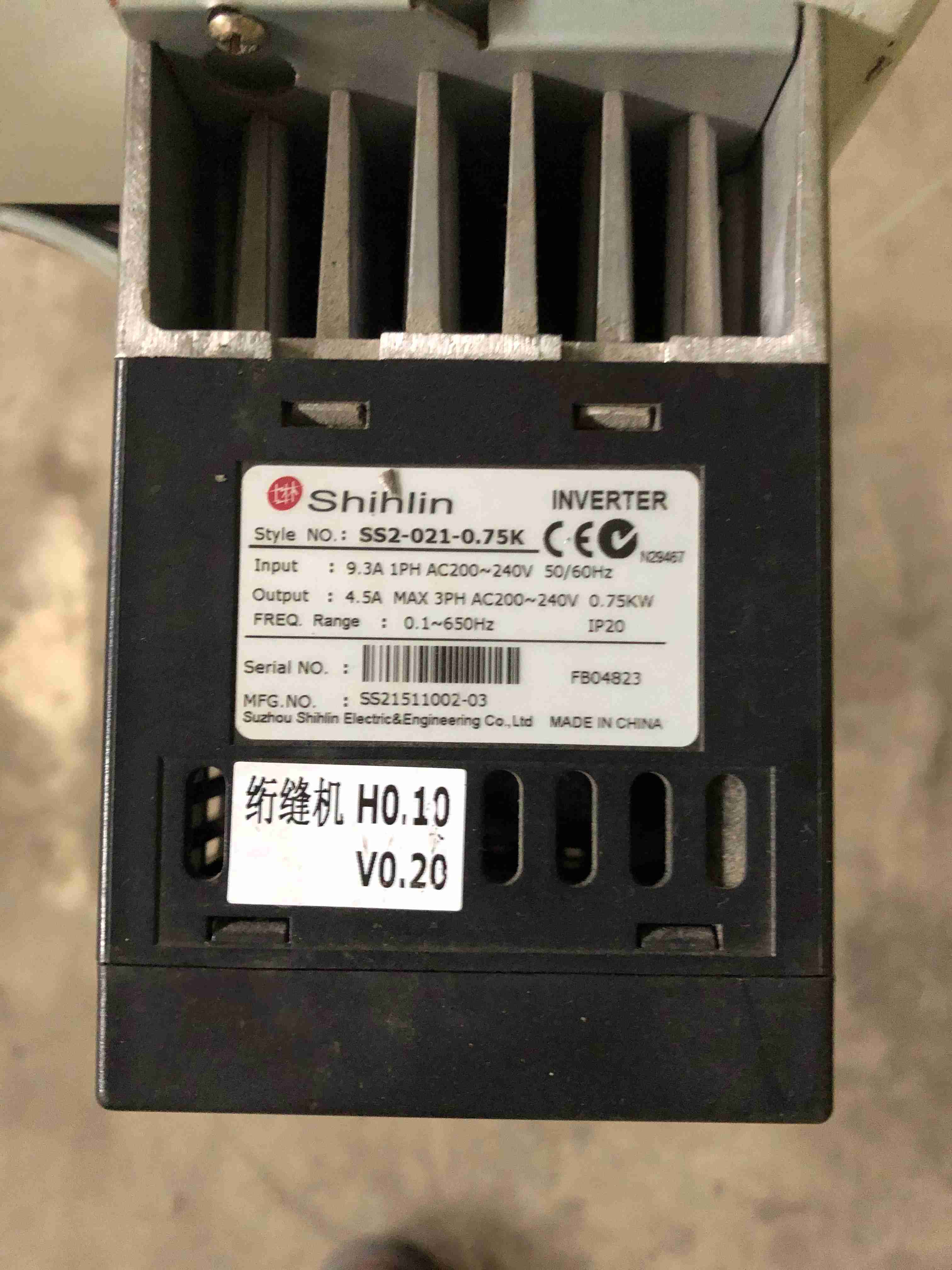

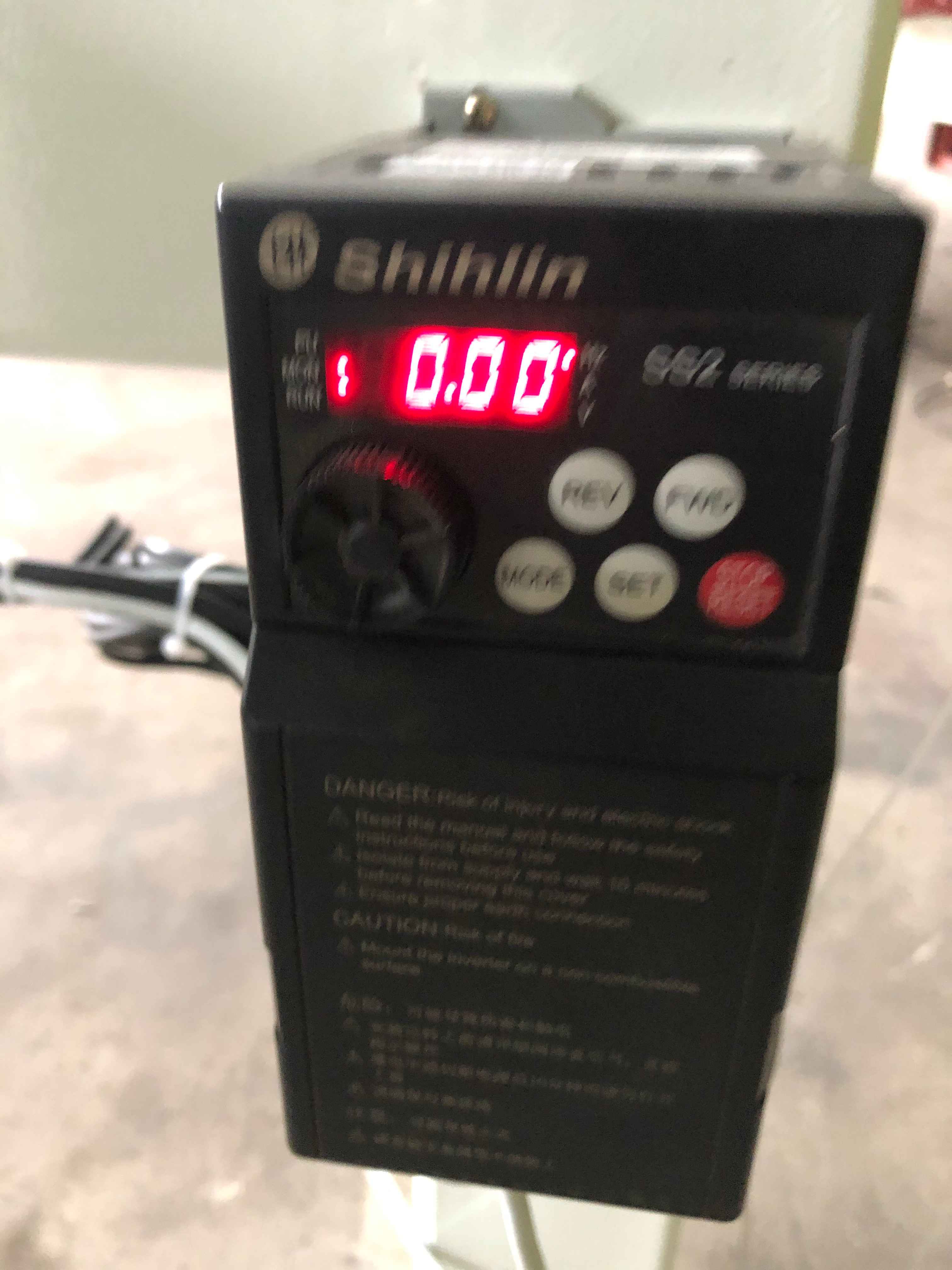

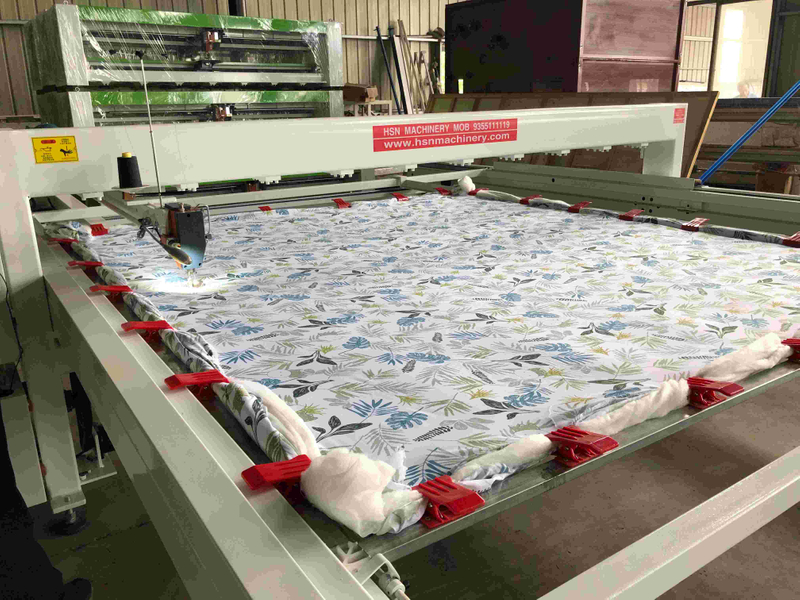

HSNL-3 Quilting (17)Details HSNL-3 (13)Details HSNL-3 (14)Details HSNL-3 (15)Details HSNL-3 (11)Details HSNL-3 (12)
