Long Arm Computerized Quilting Machine
Brief Introduction & Main Features

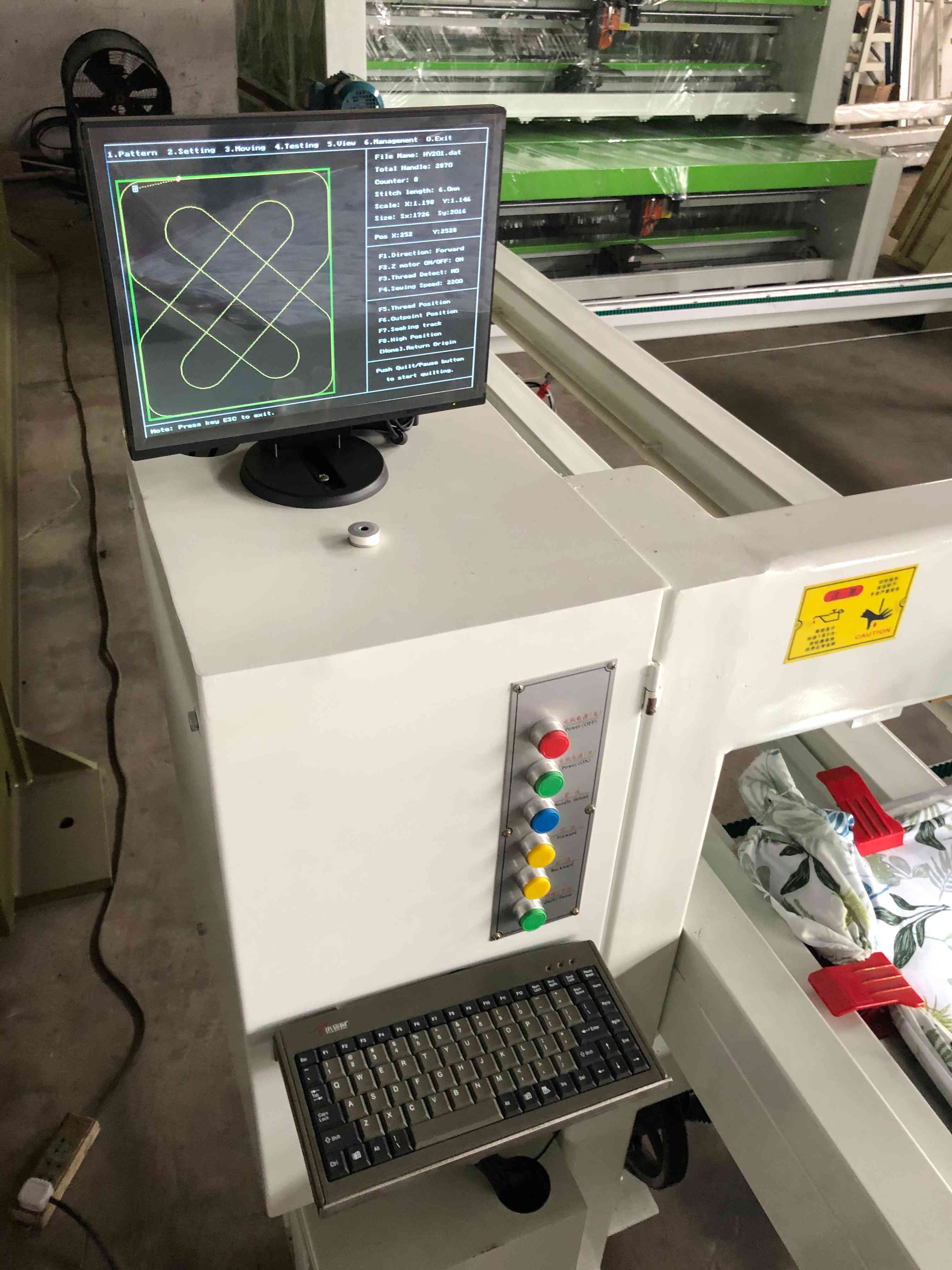

Easily operated by computer with screen at any time during working.
Real-time display the status of quilting and operation method, when finish quilting, needle will return to its start point in unloading area.
Automatic searching function for various patterns of sewing track, so can forward or withdraw needle through operating screen.
With automatic memory function when power is cut off, quilting will return to its normal function immediately after the power is resumed.
Four protection limits make the operation more safely.
Automatic detection function makes the inspection of machine signals easily and conveniently.
Technical Specifications
Model | HSNL-3 |
Overall Dimension (L x W x H) | 4.65x3.2x1.3m |
Max Quilting Size | 2.3x2.5m (can be adjusted per customer’s requirement) |
Type of Quilting | Single needle/Double locking sewing/ big Rotary Shuttle |
Max thickness | 1350g/m2 |
Max Rotating Needle Speed | 2200PRM |
Distance between needles | 1.0-7.0mm |
Needle | SINGER MR5 18~22# |
Power | 220V/50Hz 1.5KW |
Driven Motor | Servo Motor |
Weight | 920KG |
Application
Widely applied to all sorts of quilts, blankets, mattress covers, sleeping bags, bed covers and curtains etc.
