HSNZD600
HSN
84440050
Cutting size in uniform Size and adjustable
Textile Waste Recycling
| Quantity: | |
|---|---|
Brief Introduction

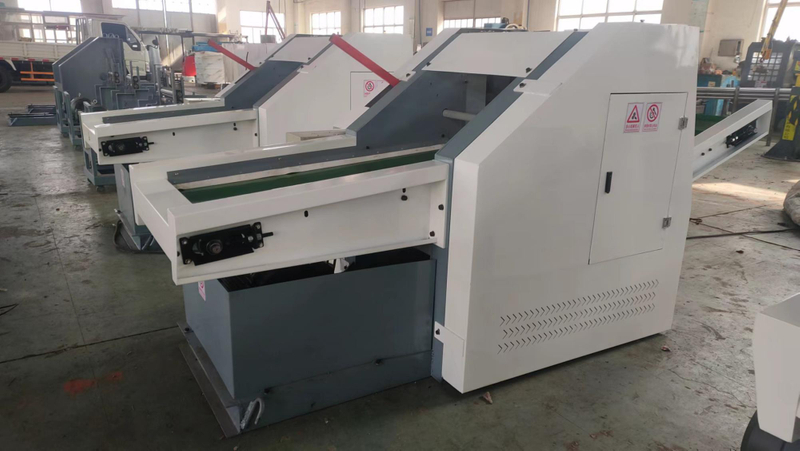

This Fabric Waste Chopping Machine is hay cutter type, through blade controlled by INVERTER shearing up and down, can cut the materials into a certain length, cutting size is uniform and adjustable. For reciprocating shear mechanism, this cutter uses the low-speed and large torque motor. Transmission uses cycloidal reducer with frequency conversion speed regularly. The installation of each component is easy to operate, easy maintenance, high strength, durability, reliability, safety in one. Will significantly improve the production efficiency.
Main Features
1. compact structure, with automatic feeding conveyor and discharging conveyor
2. with universal wheels, it is easy to move around
3. the raw materials can be cut into strips or small pieces, cutting size is uniform and adjustable
4. stable and reliable working performance, high efficiency and simple operation
Technical Specifications
Fabric Waste Chopping Machine | ||
MODEL | HSNZD600 | |
1 | Working Width | 620mm |
2 | Blade Lifting Height | 300mm |
3 | Cutting Frequency | 100times/minute |
4 | Cutting Length | 50-200mm adjustable |
5 | Cutting Length Tolerance | ±-0.1mm |
6 | Cutting Motor Power | 8P11kw |
7 | Input Motor Power | 4P1.5kw inverter |
8 | Output Motor Power | |
9 | Input Size | 3500*660mm |
10 | Output Belt | 2800*660mm |
11 | Production | 1500kg/hour |
12 | Machine size | 3160x1500x1500mm |
13 | Machine Weight | 1430kgs |
14 | Lead time | 20days |
Application
This Fabric Waste Chopping Machine is specially used for cutting cotton, hemp, silk, chemical fiber and textile goods section cutting, widely used in silk recycling, recycled cotton processing and paper making industry.
Brief Introduction
This Fabric Waste Chopping Machine is hay cutter type, through blade controlled by INVERTER shearing up and down, can cut the materials into a certain length, cutting size is uniform and adjustable. For reciprocating shear mechanism, this cutter uses the low-speed and large torque motor. Transmission uses cycloidal reducer with frequency conversion speed regularly. The installation of each component is easy to operate, easy maintenance, high strength, durability, reliability, safety in one. Will significantly improve the production efficiency.
Main Features
1. compact structure, with automatic feeding conveyor and discharging conveyor
2. with universal wheels, it is easy to move around
3. the raw materials can be cut into strips or small pieces, cutting size is uniform and adjustable
4. stable and reliable working performance, high efficiency and simple operation
Technical Specifications
Fabric Waste Chopping Machine | ||
MODEL | HSNZD600 | |
1 | Working Width | 620mm |
2 | Blade Lifting Height | 300mm |
3 | Cutting Frequency | 100times/minute |
4 | Cutting Length | 50-200mm adjustable |
5 | Cutting Length Tolerance | ±-0.1mm |
6 | Cutting Motor Power | 8P11kw |
7 | Input Motor Power | 4P1.5kw inverter |
8 | Output Motor Power | |
9 | Input Size | 3500*660mm |
10 | Output Belt | 2800*660mm |
11 | Production | 1500kg/hour |
12 | Machine size | 3160x1500x1500mm |
13 | Machine Weight | 1430kgs |
14 | Lead time | 20days |
Application
This Fabric Waste Chopping Machine is specially used for cutting cotton, hemp, silk, chemical fiber and textile goods section cutting, widely used in silk recycling, recycled cotton processing and paper making industry.
