HSN918W610W
HSN
84451190
2 HSN918W openers + 6 HSN250W cleaners; reference capacity 220-280 kg/hour; configuration confirmed per project
Textile waste, cotton fabric, denim, knitting waste and garment rags recycling

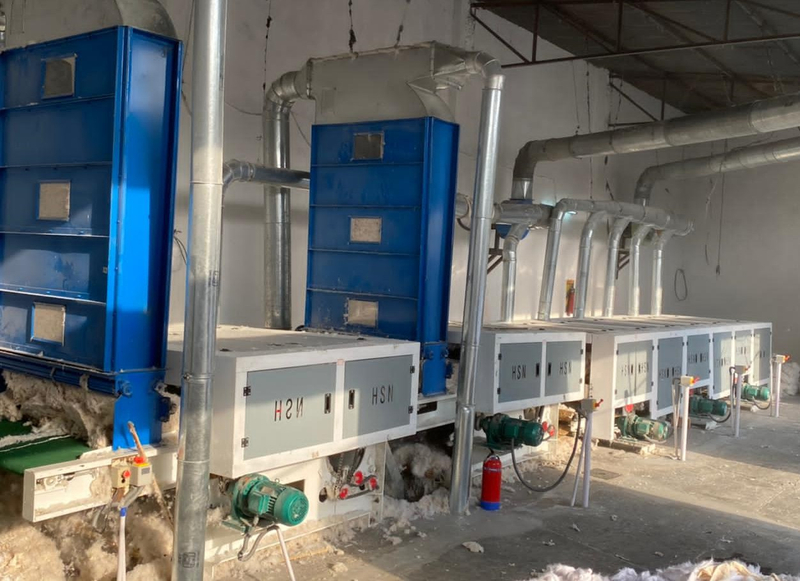

The HSN918W610W is an eight-roll textile waste recycling line with two HSN918W openers and six HSN250W cleaners. It combines continuous opening and six-stage cleaning for cotton fabric scraps, garment cutting waste, knitting waste and denim.
Cotton fabric and garment cutting waste
Denim and cotton fabric scraps
Knitting waste, garment rags and selected polyester textile waste
Material suitability, required pre-cutting and recovered fiber quality depend on fiber composition, fabric structure and contamination. Please send material photos and your intended fiber application before selecting a line.
| Section | Quantity | Purpose |
|---|---|---|
| HSN918W opener | 2 sets | Opening and loosening textile waste with chute feeding |
| HSN250W cleaner | 6 sets | Further opening and cleaning recovered fiber |
| Cutting and auxiliary equipment | Project-specific | Pre-cutting, dust collection, conveying and baling according to the agreed supply scope |
| Specification | Opening Section | Cleaning Section |
|---|---|---|
| Working roll diameter x width | 600 x 1300 mm | 250 x 1300 mm |
| Roll speed | 1178 rpm | 1851 rpm |
| Dust cage diameter | 500 mm | 500 mm |
| Main motors, reference configuration | 2 x 22 kW | 1 x 7.5 kW + 5 x 5.5 kW |
| Material transfer fans | 2 x 4.0 kW / 1440 rpm | To suit line configuration |
| Suction fans | 2 x 1.5 kW / 2880 rpm | 6 x 1.5 kW / 2880 rpm |
| Reference section weight | 3250 kg | 4310 kg |
| Reference section dimensions (L x W x H) | 6060 x 1540 x 3800 mm | 6800 x 1540 x 3350 mm |
| Complete line capacity | 220-280 kg/hour, depending on material and operating conditions | |
Specifications are reference values. Motor powers, feeding drives, voltage and control arrangements may vary with the ordered configuration. The final quotation and approved layout define the supplied equipment and installation requirements.
The HSN918W510W uses two openers and five cleaners, with reference capacity of 200-260 kg/hour. The HSN918W610W adds a sixth cleaner, with reference capacity of 220-280 kg/hour. Select the configuration according to input material, recovered fiber requirements and the complete project layout.
Cutting machines, dust filter units, baling presses and conveying arrangements can be selected to suit the project. Please confirm electrical supply, available floor space and control requirements when requesting a quotation.
Recovered fiber may be considered for rotor spinning, nonwoven production or filling applications after assessment. Yarn count and fiber quality must be evaluated for the actual input material.
Please provide your country, raw material photos or videos, target capacity in kg/hour, final fiber application and whether you require a single machine or a complete line.
