HSN918W510W Textile Waste Recycling Machine

  HSN918W510W Textile Waste Recycling Machine  is a complete recycling line designed for opening, cleaning and recovering fibers from cotton fabric waste, polyester waste, denim scraps, knitting waste, hard waste yarn and garment rags.

 The line is equipped with  2 HSN918W openers  and  5 HSN250W cleaners . The openers use 600 mm licker-in rolls and chute feeding systems for efficient material opening, while the cleaners use 250 mm licker-in rolls to further clean the fiber and remove dust, short fibers and impurities.

 The whole line can be adjusted by inverters, allowing operators to match the processing speed with different raw materials. A magnetic zig-zag tunnel is also equipped to improve safety and help protect the recycling system during operation.

 Key Features

   Complete textile waste recycling line with 2 openers and 5 cleaners

   Suitable for cotton fabric waste, polyester waste, denim waste, knitting waste, garment rags and hard waste yarn

   600 mm licker-in rolls for efficient waste material opening

   250 mm cleaner rolls for further fiber cleaning and dust removal

   Adjustable line speed controlled by inverters

   Magnetic zig-zag tunnel for safer material flow

   Output capacity: 200-260 kg/hour, depending on material type and fiber condition

   Suitable for recycling plants, spinning mills and textile waste processing factories

 Applications

 HSN918W510W can recycle many kinds of textile waste materials, including:

   Cotton fabric waste

   Polyester fabric waste

   Knitting and hosiery waste

   Denim waste

   Hard waste yarn

   Clothing and garment rags

   Cutting waste from garment factories

 The recycled fiber can be used for rotor spinning and other textile industrial applications. For suitable raw materials, the final fiber can support spinning value of 16 count and above.

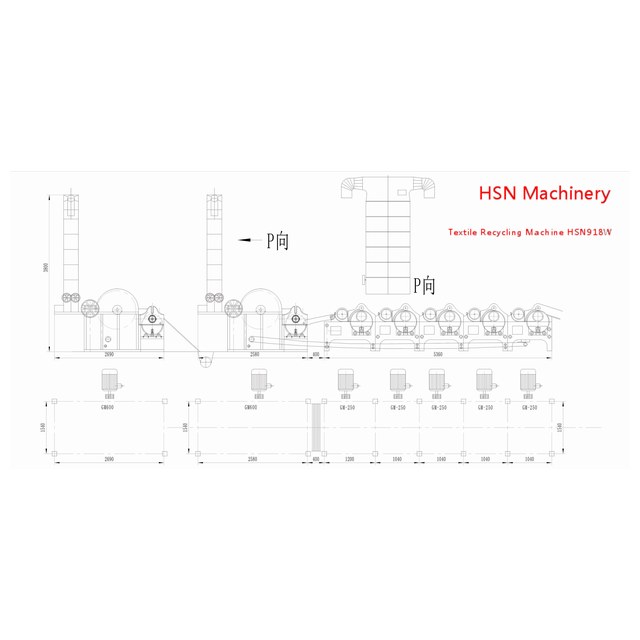

 Line Configuration

        Machine Section

        Quantity

        Function

       HSN918W Opener

       2 sets

       Opening textile waste and feeding material evenly

       HSN250W Cleaner

       5 sets

       Cleaning opened fiber and removing dust, short fibers and impurities

       Magnetic Zig-Zag Tunnel

       1 system

       Improving safety and protecting the recycling line

 Technical Specifications

        Specification

        2 x HSN918W Opener

        5 x HSN250W Cleaner

       Working Roll Size / Type

       D600 x 1300 mm / Iron and Wire

       D250 x 1300 mm / Iron and Wire

       Roll Rotation Speed

       1178 rpm

       1851 rpm

       Dust Cage Diameter

       500 mm

       500 mm

       Main Motor

       2 x 22 kW

       1 x 7.5 kW + 4 x 5.5 kW

       Feeding Roller Gearbox

       2 x 2.2 kW

       3 x 2.2 kW

       Material Transferring Fan

       2 x 4.0 kW / 1440 rpm

       -

       Suction Fan

       2 x 1.5 kW / 2880 rpm

       5 x 1.5 kW / 2880 rpm

       Output Capacity

       200-260 kg/hour

       200-260 kg/hour

       Weight

       3250 kg

       3610 kg

       Dimension

       6060 x 1540 x 3800 mm

       5780 x 1540 x 3350 mm

 Optional Equipment

 According to the customer's raw material and final fiber requirement, the recycling line can be matched with optional equipment such as textile waste cutting machine, dust filter unit, bale press machine and customized conveying system.

 How to Get the Right Solution

 To recommend the most suitable recycling solution, please send us the following information:

   What material do you want to recycle?

   What is your required capacity in kg/hour?

   What is the final application of the recycled fiber?

   Do you need a single machine or a complete recycling line?

   Can you send photos or videos of your raw material?
