HSN912
HSN
84451190
Easy operation and Safe production
Textile Waste Recycling
| Quantity: | |
|---|---|

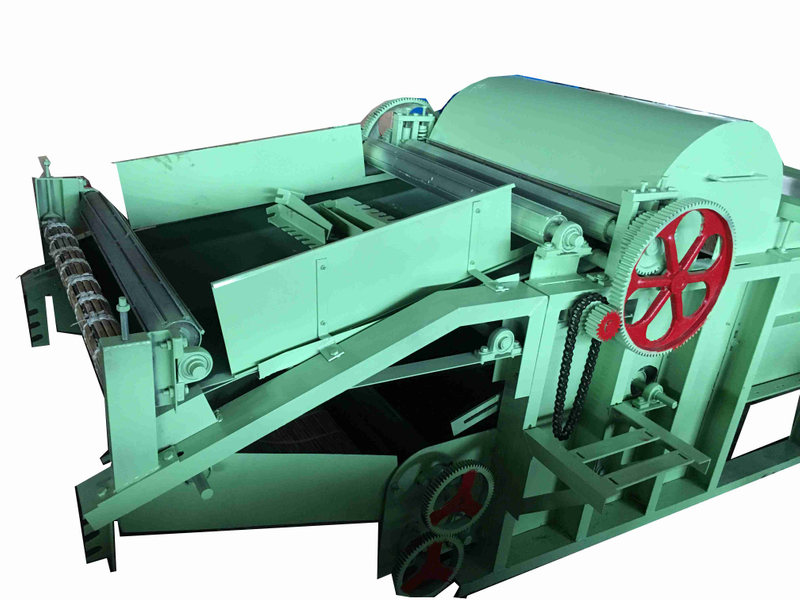

HSN912 OPENER / Automatic Refeeding Opening Machine
Brief introduction
HSN912 Opener / Automatic Refeeding Opening Machine equipped with 600mm wooden doffer for opening, ratio of fiber opened can be up to 95%, it keeps fiber good frizzy and smooth, that is best for filling the products in fluffy, resilience. HSN912 Opener with high automation, it can auto continuously recycle of un-opened fabrics waste that are carried out till the waste (yarn/chindi) convert into fibers. HSN912 Opener adopts gear-worm type gearbox with inverter motor to control feeding speed, the iron doffer is mounted high quality card clothing.
Technical specifications
Model | HSN912 |
Working width | 1000mm |
Wooden Roll Diameter | 24inch/600mm |
Roller rotation speed | 1178rpm |
Card Clothing (teeth / inch) | 3.5 or 4.5 |
Suction fan power/ rotation speed | 1x1.5kw / 2900rpm |
Main Motor Power | 22kw |
Overall Dimension | 2660x1500x1200mm |
Weight | 1500kg |
Output | 120 - 160kg/hour |
Application
HSN912 Opener is used for opening textile waste/chindi/fabric waste/yarn waste, the recycled fibers are suitable for mattress, bedding, gaddi, quilts, pillow, sofa filling etc.
HSN912 OPENER / Automatic Refeeding Opening Machine
Brief introduction
HSN912 Opener / Automatic Refeeding Opening Machine equipped with 600mm wooden doffer for opening, ratio of fiber opened can be up to 95%, it keeps fiber good frizzy and smooth, that is best for filling the products in fluffy, resilience. HSN912 Opener with high automation, it can auto continuously recycle of un-opened fabrics waste that are carried out till the waste (yarn/chindi) convert into fibers. HSN912 Opener adopts gear-worm type gearbox with inverter motor to control feeding speed, the iron doffer is mounted high quality card clothing.
Technical specifications
Model | HSN912 |
Working width | 1000mm |
Wooden Roll Diameter | 24inch/600mm |
Roller rotation speed | 1178rpm |
Card Clothing (teeth / inch) | 3.5 or 4.5 |
Suction fan power/ rotation speed | 1x1.5kw / 2900rpm |
Main Motor Power | 22kw |
Overall Dimension | 2660x1500x1200mm |
Weight | 1500kg |
Output | 120 - 160kg/hour |
Application
HSN912 Opener is used for opening textile waste/chindi/fabric waste/yarn waste, the recycled fibers are suitable for mattress, bedding, gaddi, quilts, pillow, sofa filling etc.
