HSN550N
HSN
84451190
Easy operation and Safe production
Textile Waste Recycling
| Quantity: | |
|---|---|

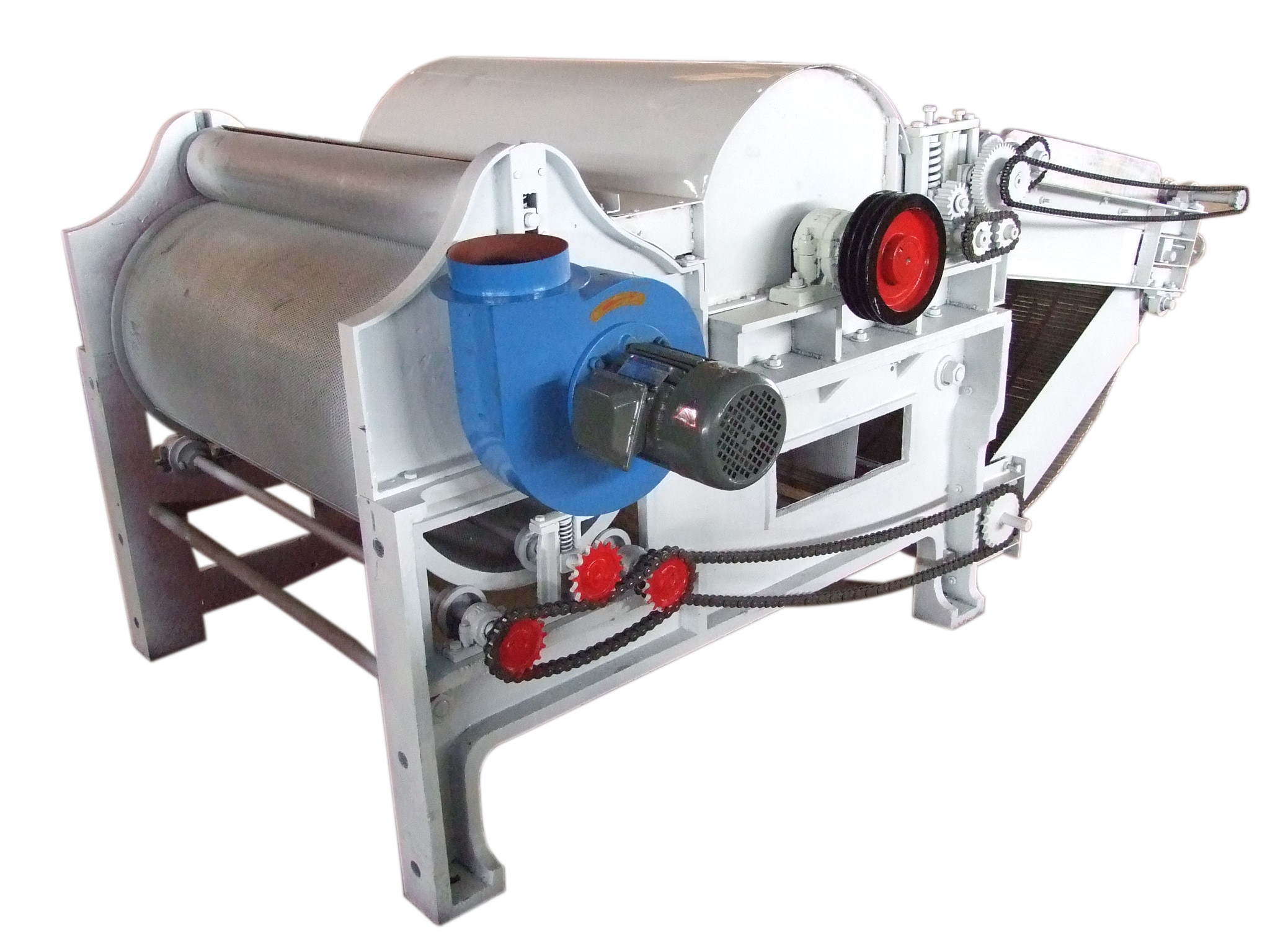

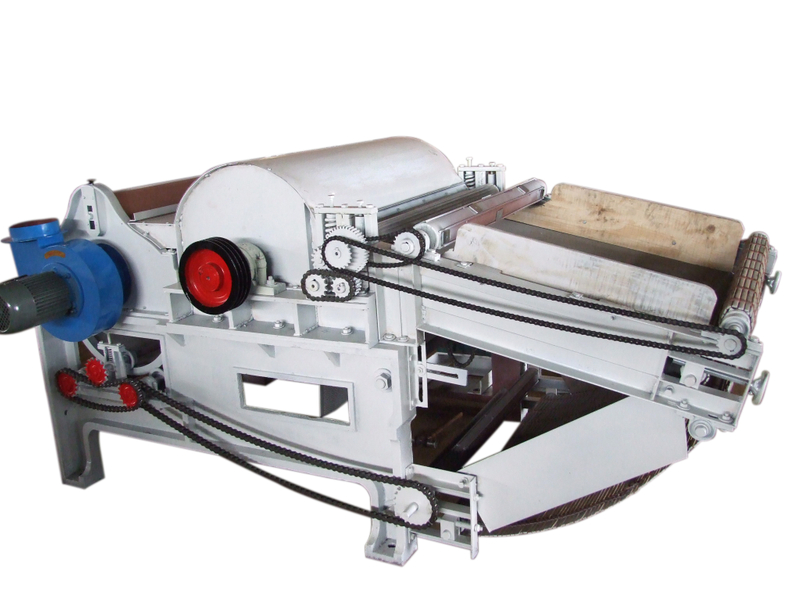

HSN550N Opener / Automatic Refeeding Opening Machine
Brief introduction
The 22 inch iron doffer for opening, ratio of fiber opened can be up to 95%, keeps fiber good frizzy and smooth, filling the products in fluffy, resilience.
High automation, auto continuous recycling of un-opened fiber is carried out till the waste (yarn/chindi) convert into fibers. This opener adopts gear box for speed control which Model number is YL120.
The doffer roller mounted high quality card clothing.
Main features
Reasonable structure and collocation, high productive efficiency
Less labor cost and working strength
Easy operation and safe production
Technical specifications
Model | HSN550N |
Working width | 1000mm |
Licker-in Roll Diameter | 22inch/550mm |
Roller rotation speed | 1178rpm |
Card Clothing (teeth / inch) | 3.5 or 4.5 |
Suction fan power/ rotation speed | 1x1.5kw / 2900rpm |
Main Motor Power | 15kw |
Overall Dimension | 2570x1500x1200mm |
Weight | 1200kg |
Output | 100 - 150kg/hour |
Application
This opener is used for opening textile waste/chindi/fabric waste/yarn waste.
The fiber will be used for mattress, bedding, gaddi, quilts, pillow, sofa filling etc.
HSN550N Opener / Automatic Refeeding Opening Machine
Brief introduction
The 22 inch iron doffer for opening, ratio of fiber opened can be up to 95%, keeps fiber good frizzy and smooth, filling the products in fluffy, resilience.
High automation, auto continuous recycling of un-opened fiber is carried out till the waste (yarn/chindi) convert into fibers. This opener adopts gear box for speed control which Model number is YL120.
The doffer roller mounted high quality card clothing.
Main features
Reasonable structure and collocation, high productive efficiency
Less labor cost and working strength
Easy operation and safe production
Technical specifications
Model | HSN550N |
Working width | 1000mm |
Licker-in Roll Diameter | 22inch/550mm |
Roller rotation speed | 1178rpm |
Card Clothing (teeth / inch) | 3.5 or 4.5 |
Suction fan power/ rotation speed | 1x1.5kw / 2900rpm |
Main Motor Power | 15kw |
Overall Dimension | 2570x1500x1200mm |
Weight | 1200kg |
Output | 100 - 150kg/hour |
Application
This opener is used for opening textile waste/chindi/fabric waste/yarn waste.
The fiber will be used for mattress, bedding, gaddi, quilts, pillow, sofa filling etc.
