HSN416
HSN

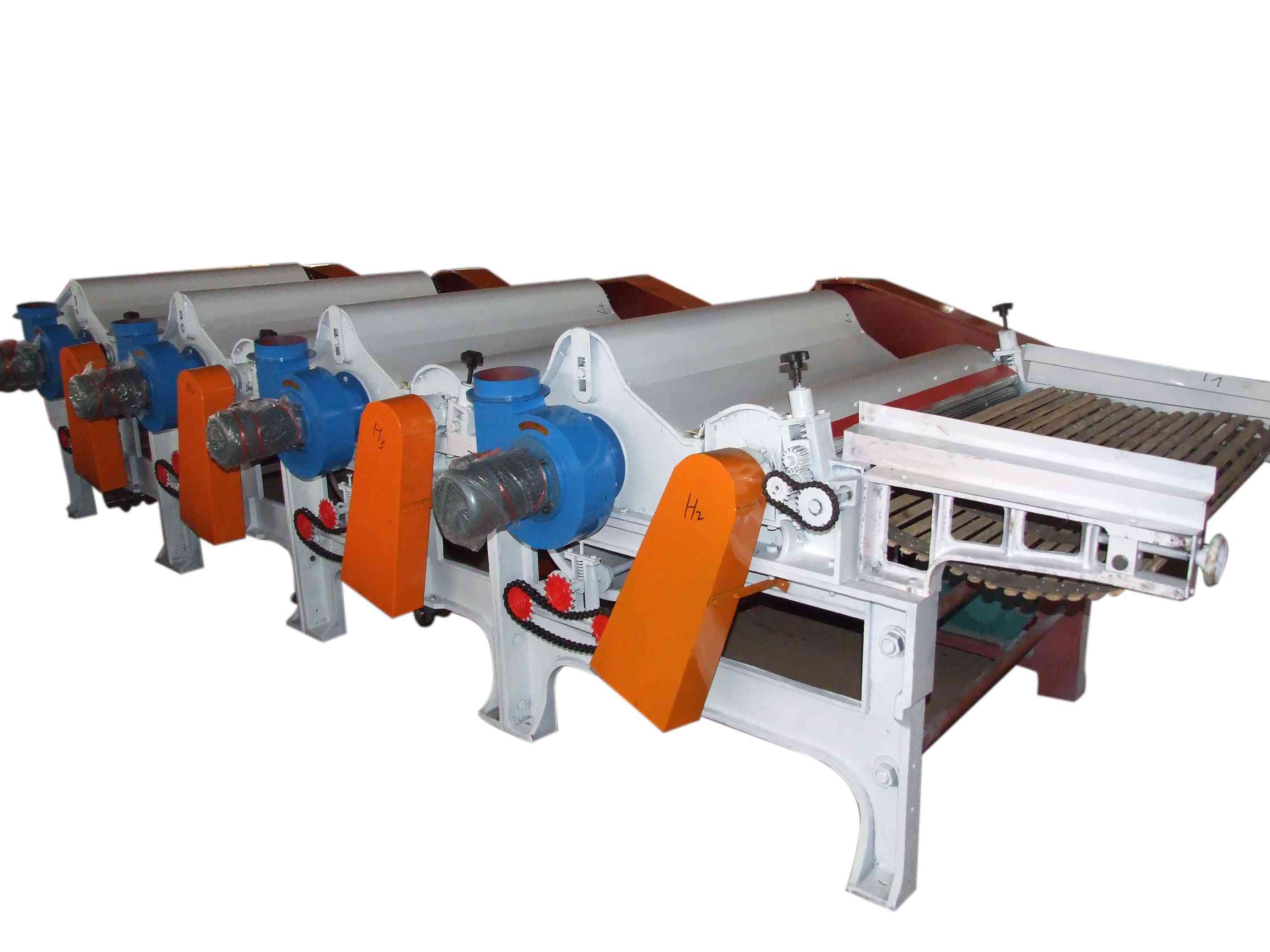

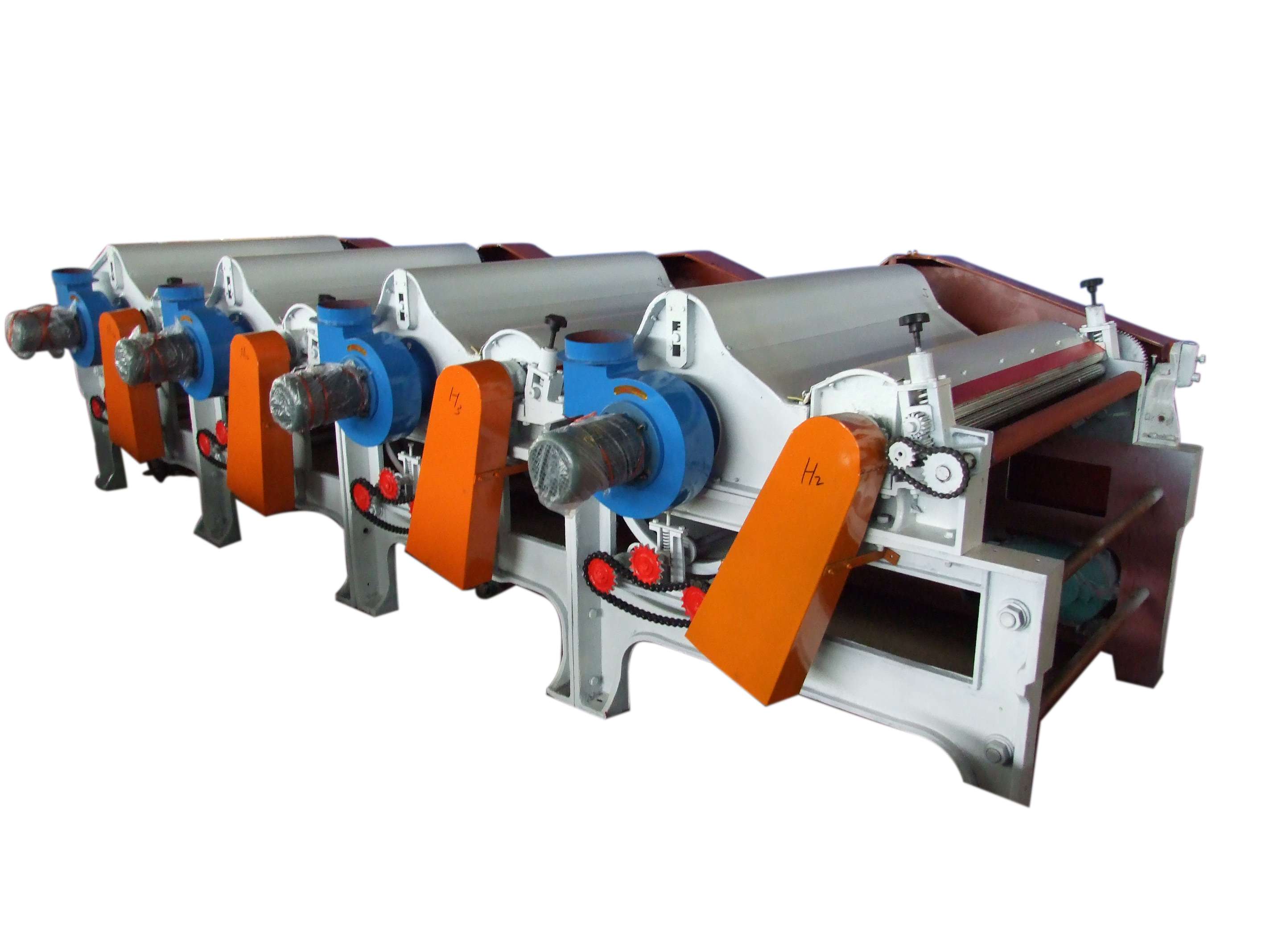

The HSN416 processes cotton waste through four barbed rollers to loosen fibers and help separate dust and impurities. The opened material is then pressed into flakes for subsequent processing.
For cotton waste cleaning and blending projects, including blowroom waste and carding droppings. Material suitability should be assessed using representative samples and the intended application of the recovered fiber.
Item | HSN416 |
|---|---|
Number of cleaning rolls | 4 |
Roll diameter | 400 mm (16 inch) |
Reference output | 110-150 kg/h |
First roll speed | 1900 rpm |
Second to fourth roll speed | 2100 rpm |
First roll motor | 7.5 kW |
Second to fourth roll motors | 5.5 kW each |
Fan speed | 2900 rpm per roll |
Dimensions per cleaner unit (L x W x H) | 1150 x 1500 x 1700 mm |
Approximate weight per cleaner unit | 750 kg |
Reference specifications are based on the available HSN416 product documentation. Production output and recovered fiber quality depend on raw material and operating conditions. Confirm the final configuration and installation layout before ordering.
Please send your raw material photos or samples, target hourly output, intended fiber application, destination country and available workshop space. HSN Machinery will review your requirements and recommend a suitable configuration.
