HSN410
HSN
84451190
Four-roller mechanical fiber opening and cleaning
Blow room / card drops Recycling

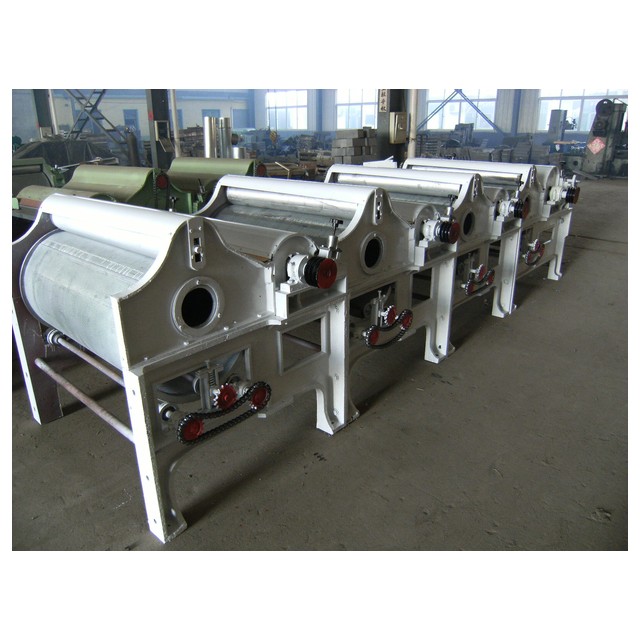

The HSN410 is a four-roller machine for reviewing mechanical opening and cleaning of suitable cotton waste. Rotating pinned rollers provide opening and cleaning action. The process arrangement should be selected for the incoming material and intended recovered-fiber application.
Potential feedstocks include suitable blowroom and carding waste. Review fiber composition, contamination, incoming fiber condition and preparation requirements before equipment selection. Recovered fiber may be evaluated for wadding or other defined uses through representative material trials.
Final fiber length, cleanliness, short-fiber content and end-use suitability depend on material and operating conditions. A fixed final fiber-length range or universal cleaning result is not guaranteed.
| Item | HSN410 reference specification |
|---|---|
| Number of opening rollers | 4 |
| Roller diameter | 250 mm |
| Working width | 1000 mm |
| First roller speed | 1900 rpm |
| Second, third and fourth roller speeds | 2100 rpm each |
| First roller main motor | 7.5 kW |
| Second, third and fourth roller main motors | 5.5 kW each |
| Suction fans | 4 x 1.5 kW / 2900 rpm |
| Dimensions per roller unit (L x W x H) | 1150 x 1500 x 1600 mm |
| Gross weight per roller unit | 550 kg |
| Reference production rate | 100-130 kg/h |
These are listed HSN410 reference values. Dimensions and gross weight above are stated per roller unit, not for the complete installed line. Actual throughput depends on material, preparation, feeding and settings. Confirm the complete line layout, motor and fan arrangement, total installed power, electrical supply, guards, extraction connections, accessories and supply scope in the formal quotation and approved drawing.
Send your country, feedstock photos and composition, contamination details, target hourly output and intended fiber use. Include site power supply, available floor space and existing upstream or downstream equipment. Agree trial objectives and acceptance criteria for the actual material.
Equipment price, delivery, installation support and warranty terms are quoted for the agreed project configuration and confirmed in the contract.
