HSN400C410
HSN

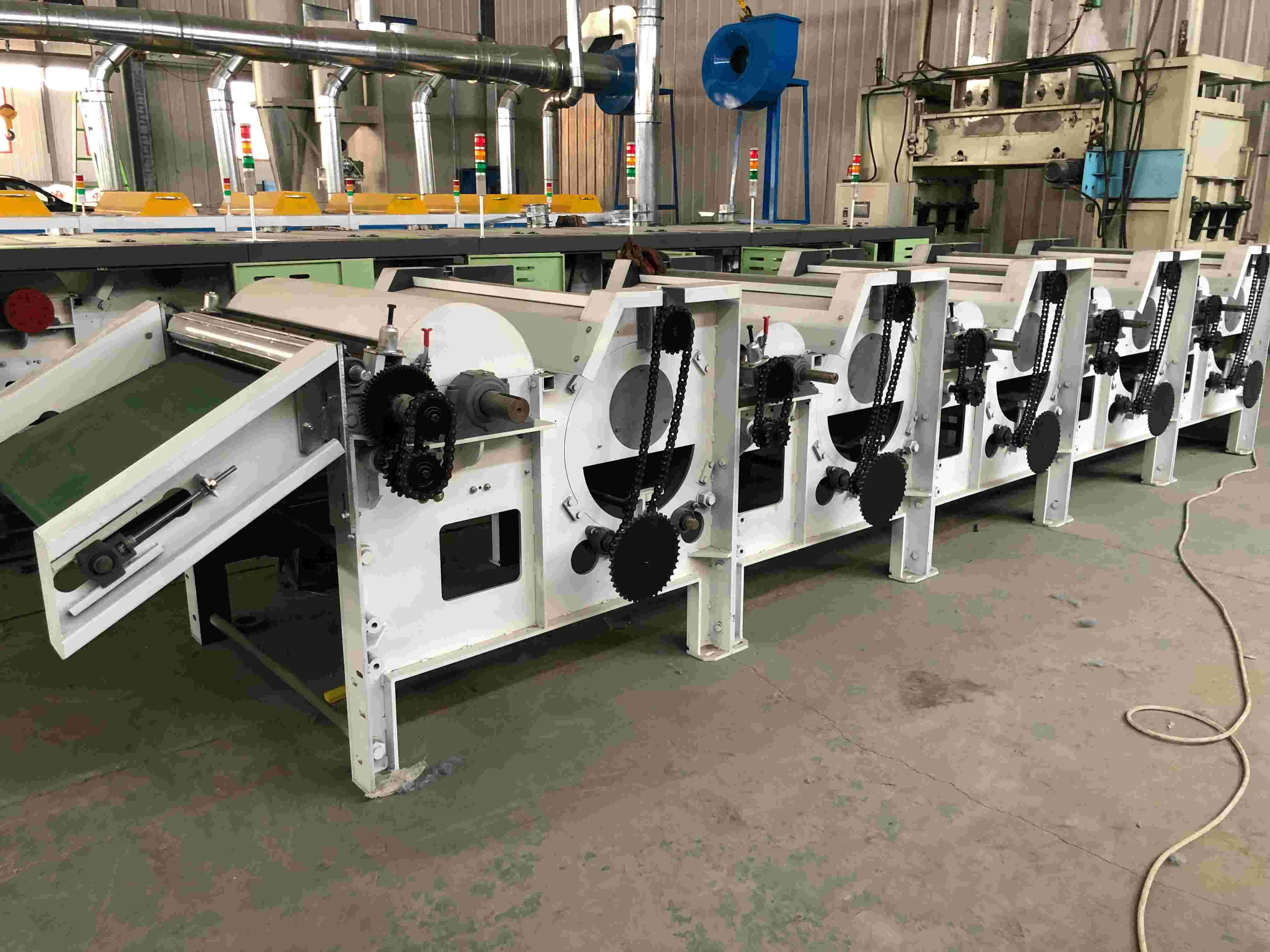

The HSN400C410 uses five cleaning stages to open cotton waste and help separate dust and impurities. A 400 mm first roll is followed by four 250 mm cleaning rolls. The processed fiber is pressed into flakes for subsequent use.
Designed for cotton waste cleaning and fiber blending projects, including blowroom waste and carding droppings. Suitability for a particular material and end use should be assessed using representative samples.
Item | HSN400C410 |
|---|---|
Number of cleaning stages | 5 |
Reference output | 110-150 kg/h |
Working width | 1000 mm |
First roll diameter / speed | 400 mm / 1440 rpm |
Second to fifth roll diameter / speed | 250 mm / 2100 rpm |
First cleaner motor | 11 kW |
Second to fifth cleaner motors | 5.5 kW each |
Dust extraction fan | 1 x 7.5 kW |
Total installed power | 40.5 kW |

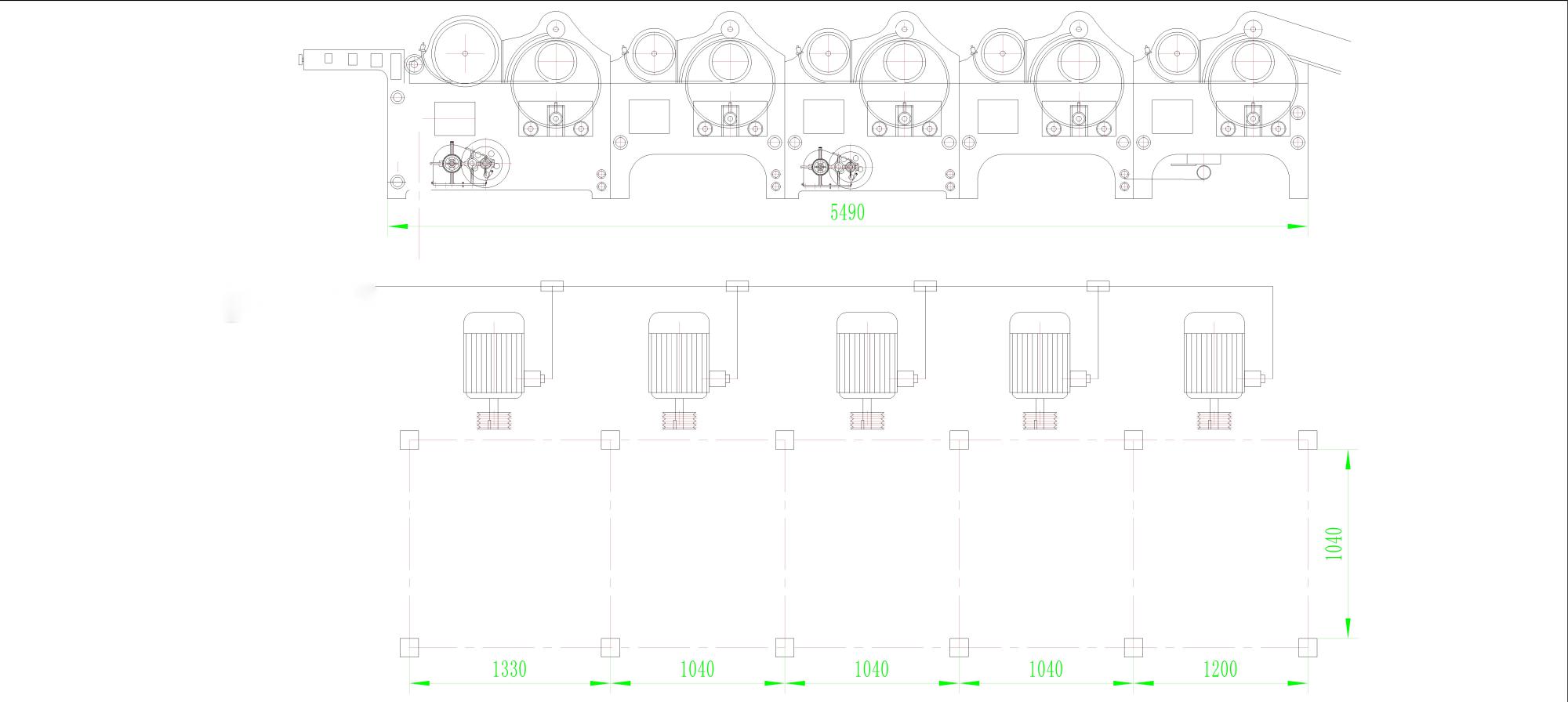

Overall dimensions (L x W x H) | 5490 x 1040 x 1540 mm |
Approximate net weight | 2950 kg |
Reference specifications are based on the available HSN400C410 documentation. Actual output and recovered fiber quality depend on raw material and operating conditions. Confirm the final equipment configuration, dimensions and installation layout before ordering.
Send your raw material photos or samples, target hourly output, intended recovered fiber application, available workshop space and destination country. HSN Machinery will review your requirements and recommend a suitable configuration.
