HSNZD1100B
HSN
84440050
Stable and reliable working performance
Textile Waste Recycling
| Quantity: | |
|---|---|
Brief Introduction

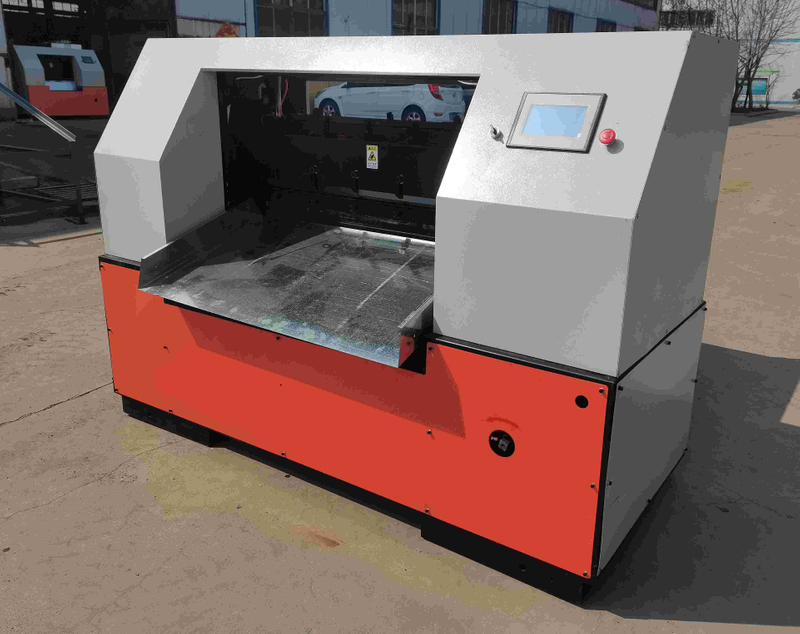

This cutting machine is hay cutter type, through blade controlled by PLC shearing up and down, can cut the materials into a certain length, cutting size is uniform and adjustable.
Technical Specifications
HAY Cutting Machine | ||
MODEL | HSNZD1100B | |
1 | Working Width | 1000mm |
2 | Blade Lifting Height | 100/150mm |
3 | Cutting Frequency | 80times/minute |
4 | Cutting Length | 1-100mm |
5 | Cutting Length Tolerance | ±-0.1mm |
6 | Total Power | 10kw |
7 | Control Type | PLC |
8 | Input Size | 1000*1100mm |
9 | Output Belt | 1000*1100mm |
10 | Production | 200-300kg/hour |
11 | Machine size | 2350x1200x1600mm |
12 | Machine Weight | 2790kgs |
13 | Price FOB Qingdao | |
14 | Lead time | 25days |
Application
This HAY cutting machine is specially used for cutting glass fiber, carbon fiber, terylene fiber, polypropylene fiber and aramid fiber into a certain length that in field of construction material making, special paper making, paint making and other process.
