HSNZD800
HSN
84440050
High efficiency and Simple operation
Textile Recycling
| Quantity: | |
|---|---|
Brief Introduction

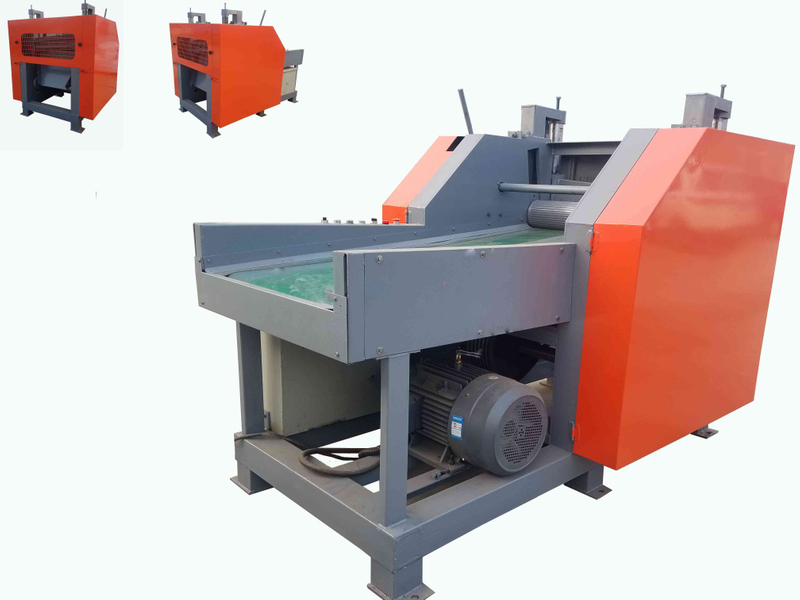

This cutting machine is hay cutter type, through blade controlled by INVERTER shearing up and down, can cut the materials into a certain length, cutting size is uniform and adjustable.
Features
1. compact structure, with automatic feeding conveyor and discharging conveyor
2. with universal wheels, it is easy to move around
3. the raw materials can be cut into strips or small pieces, cutting size is uniform and adjustable
Technical Specifications
HAY Cutting Machine | ||
MODEL | HSNZD800 | |
1 | Working Width | 800mm |
2 | Blade Lifting Height | 100/150mm |
3 | Cutting Frequency | 120times/minute |
4 | Cutting Length | adjustable |
5 | Cutting Length Tolerance | ±-0.1mm |
6 | Cutting Motor Power | 6P15kw |
7 | Input Motor Power | 4P2.2kw inverter |
8 | Output Motor Power | 4P1.5kw |
9 | Input Size | 1800*830mm |
10 | Output Belt | 3000*520mm |
11 | Production | 200-300kg/hour |
12 | Machine size | 4850x1500x1750mm |
13 | Machine Weight | 2100kgs |
14 | Lead time | 25days |
Application
This cutter is specially used for cutting carbon fiber, metal fiber, dacron fiber, Terylene Fiber, Polypropylene fiber, glass fiber, and the aramid fiber to make construction material, special paper making, paint making and other process.
Brief Introduction
This cutting machine is hay cutter type, through blade controlled by INVERTER shearing up and down, can cut the materials into a certain length, cutting size is uniform and adjustable.
Features
1. compact structure, with automatic feeding conveyor and discharging conveyor
2. with universal wheels, it is easy to move around
3. the raw materials can be cut into strips or small pieces, cutting size is uniform and adjustable
Technical Specifications
HAY Cutting Machine | ||
MODEL | HSNZD800 | |
1 | Working Width | 800mm |
2 | Blade Lifting Height | 100/150mm |
3 | Cutting Frequency | 120times/minute |
4 | Cutting Length | adjustable |
5 | Cutting Length Tolerance | ±-0.1mm |
6 | Cutting Motor Power | 6P15kw |
7 | Input Motor Power | 4P2.2kw inverter |
8 | Output Motor Power | 4P1.5kw |
9 | Input Size | 1800*830mm |
10 | Output Belt | 3000*520mm |
11 | Production | 200-300kg/hour |
12 | Machine size | 4850x1500x1750mm |
13 | Machine Weight | 2100kgs |
14 | Lead time | 25days |
Application
This cutter is specially used for cutting carbon fiber, metal fiber, dacron fiber, Terylene Fiber, Polypropylene fiber, glass fiber, and the aramid fiber to make construction material, special paper making, paint making and other process.
