HSNZD520B
HSN
84440050
Stable and reliable working performance
Fiber Recycling
| Quantity: | |
|---|---|
Brief Introduction

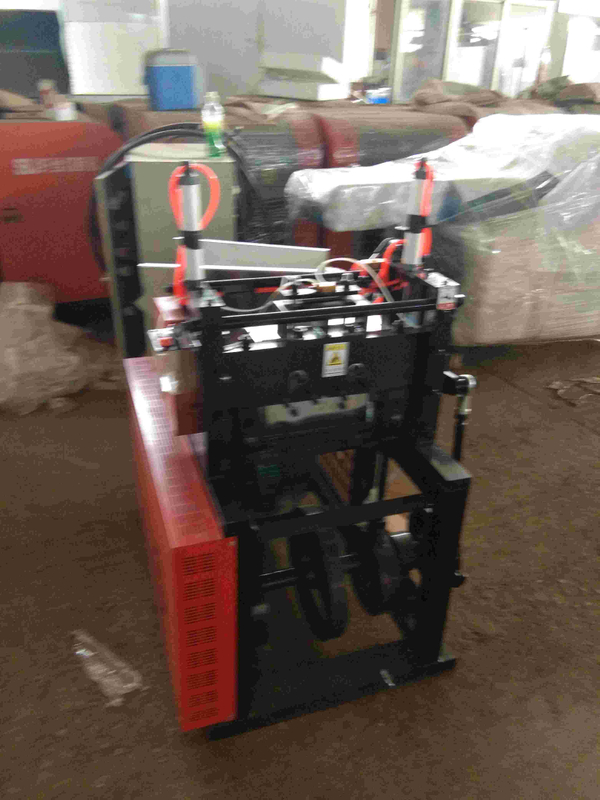

This cutting machine is hay cutter type, through blade controlled by Relay shearing up and down, can cut the materials into a certain length, cutting size is uniform and adjustable.
Technical Specifications
HAY Cutting Machine | ||
MODEL | HSNZD520B | |
1 | Working Width | 520mm |
2 | Blade Lifting Height | 100/130mm |
3 | Cutting Frequency | 60times/minute |
4 | Cutting Length | 1-100mm |
5 | Cutting Length Tolerance | ±-0.1mm |
6 | Total Power | 6.6kw |
7 | Control Type | PLC |
8 | Input Size | 500*1100mm |
9 | Output Belt | 500*1100mm |
10 | Production | 100-150kg/hour |
11 | Machine size | 1850x1000x1500mm |
12 | Machine Weight | 1590kgs |
13 | Price FOB Qingdao | |
14 | Lead time | 25days |
Application
This HAY cutting machine is specially used for cutting glass fiber, carbon fiber, terylene fiber, polypropylene fiber and aramid fiber into a certain length that in field of construction material making, special paper making, paint making and other process.
Brief Introduction
This cutting machine is hay cutter type, through blade controlled by Relay shearing up and down, can cut the materials into a certain length, cutting size is uniform and adjustable.
Technical Specifications
HAY Cutting Machine | ||
MODEL | HSNZD520B | |
1 | Working Width | 520mm |
2 | Blade Lifting Height | 100/130mm |
3 | Cutting Frequency | 60times/minute |
4 | Cutting Length | 1-100mm |
5 | Cutting Length Tolerance | ±-0.1mm |
6 | Total Power | 6.6kw |
7 | Control Type | PLC |
8 | Input Size | 500*1100mm |
9 | Output Belt | 500*1100mm |
10 | Production | 100-150kg/hour |
11 | Machine size | 1850x1000x1500mm |
12 | Machine Weight | 1590kgs |
13 | Price FOB Qingdao | |
14 | Lead time | 25days |
Application
This HAY cutting machine is specially used for cutting glass fiber, carbon fiber, terylene fiber, polypropylene fiber and aramid fiber into a certain length that in field of construction material making, special paper making, paint making and other process.
