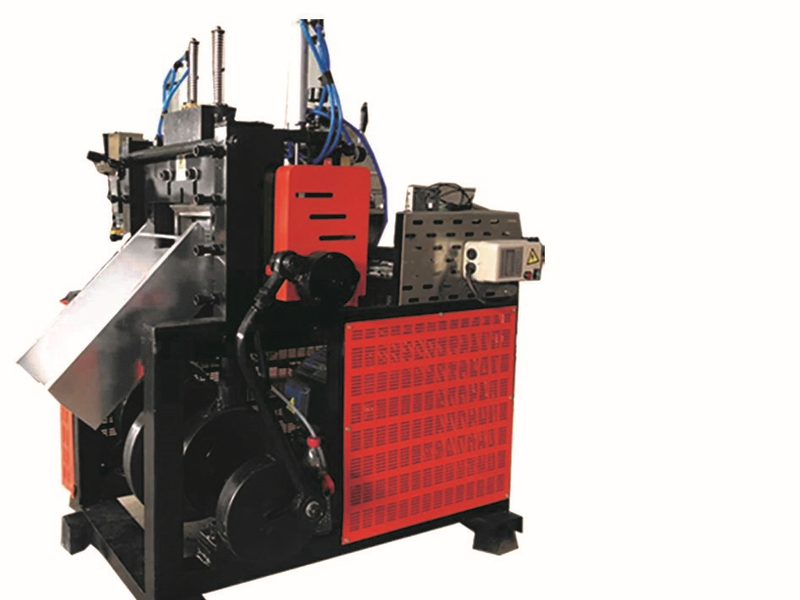

HSNZD220
HSN
84440050
Guillotine shearing; 220 mm working width; adjustable cutting length
Textile Waste Recycling
The HSNZD220 uses a reciprocating blade to shear suitable fiber feedstock to an adjustable length. Equipment selection and the required cut result are confirmed for the actual fiber and downstream process through material trials.
Send the fiber composition and form, bundle or strand dimensions, incoming length, sizing or coatings, and required cut length. Blade selection, feeding preparation and operating settings must be assessed for the actual material. Glass, carbon, polyester, polypropylene and aramid feedstocks require material-specific assessment; the same blade arrangement and operating settings must not be assumed suitable for every fiber or resin-containing composite.
The listed cutting range, frequency and hourly output are reference values, not a guarantee of the same accuracy or production rate for every fiber and cut length. Agree trial acceptance criteria before ordering.
| Item | Reference Specification |
|---|---|
| Model | HSNZD220 |
| Cutting action | Reciprocating guillotine shearing |
| Working width | 220 mm |
| Blade lifting height | 90 mm |
| Listed cutting frequency | 60 cuts/min |
| Listed adjustable cutting length | 0.5-120 mm; material trials required |
| Total power | 3.0 kW |
| Input size | 220 x 1000 mm |
| Output conveyor | None in the listed configuration |
| Reference production rate | 30-60 kg/h; material and cut-length dependent |
| Machine dimensions (L x W x H) | 860 x 780 x 1250 mm |
| Net machine weight | 470 kg |
| Control system | PLC |
| Cutting-length tolerance | ±0.2 mm |
Confirm blade arrangement, feeding method, guarding, interlocks, dust extraction requirements and site electrical supply before equipment selection.
Allow suitable access for feeding, discharge and maintenance. The listed machine dimensions do not include operating clearances. Packing size and shipping gross weight are confirmed for the actual shipment, separately from net machine weight.
Provide your country, material photos and samples, target cut length, required hourly output, downstream application, power supply and available space. Price, delivery, installation support and warranty terms depend on the agreed project scope and are confirmed in the formal quotation and contract.
Request an HSNZD220 Quote | Discuss a Fiber Cutting Trial
