HSNZD220
HSN
84440050
Cutting size in uniform Size and adjustable
Textile Waste Recycling
| Quantity: | |
|---|---|
Brief Introduction

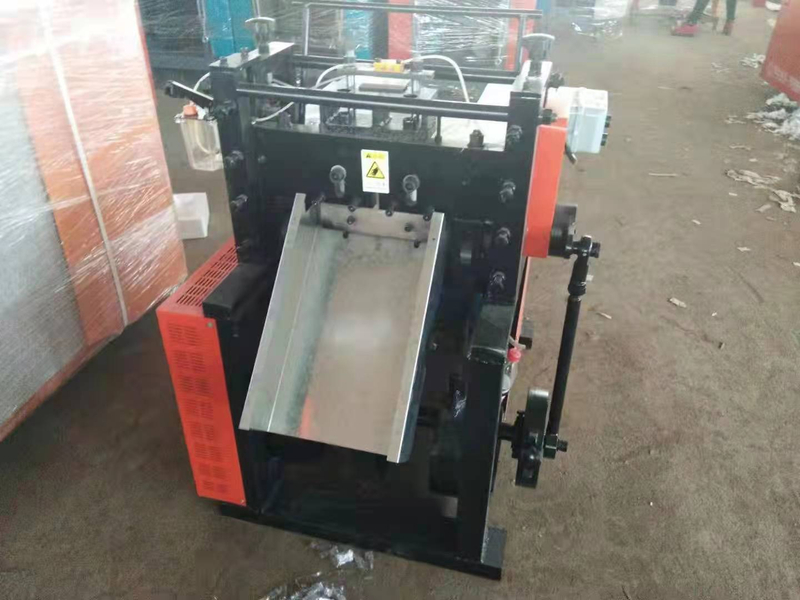

This cutting machine is hay cutter type, through blade controlled by PLC shearing up and down, can cut the materials into a certain length, cutting size is uniform and adjustable.
Main Features
Stable and reliable working performance High efficiency and easy operation
Technical Specifications
HAY Cutting Machine | ||
MODEL | HSNZD220 | |
1 | Working Width | 220mm |
2 | Blade Lifting Height | 90mm |
3 | Cutting Frequency | 60times/minute |
4 | Cutting Length | 0.5-120mm |
5 | Cutting Length Tolerance | ±-0.2mm |
6 | Total Power | 3.0kw |
7 | Control Type | Relay |
8 | Input Size | 220*1000mm |
9 | Output Belt | None |
10 | Production | 30-60kg/hour |
11 | Machine size | 860x780x1250mm |
12 | Machine Weight (GW/NW) | 550kgs/470kgs |
13 | Packing Size: | 1000*850*1430mm |
13 | Price FOB Qingdao | |
14 | Lead time | 35days |
Application
This Guillotine cutting machine is specially used for cutting glass fiber, carbon fiber, terylene fiber, polypropylene fiber and aramid fiber into a certain length that in field of construction material making, special paper making, paint making and other process.
