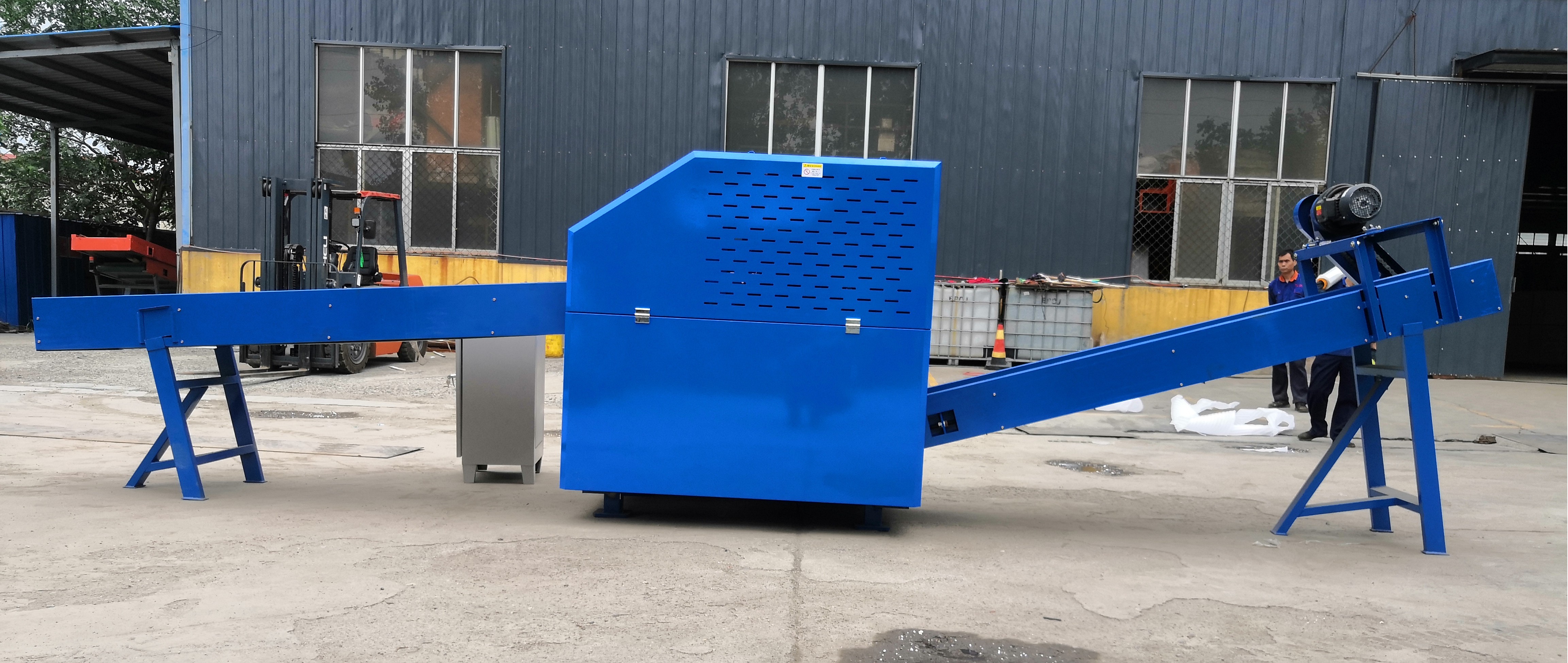

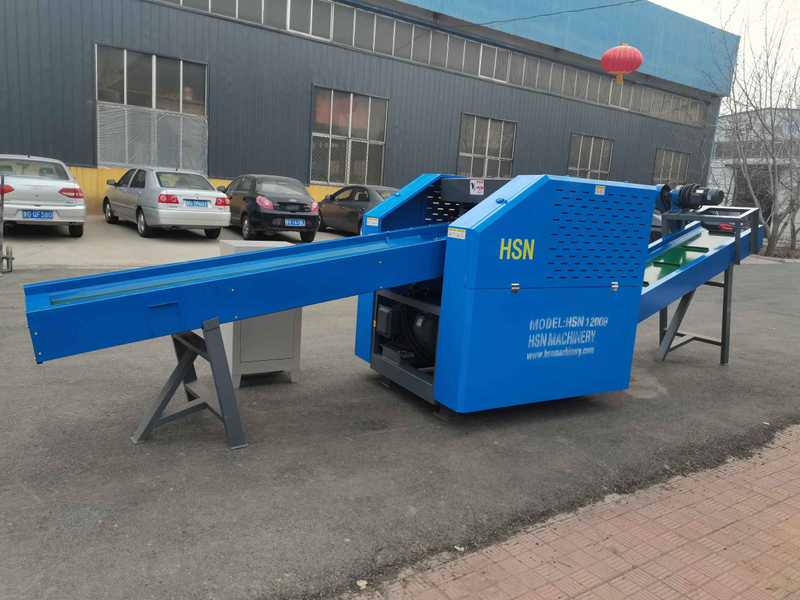

HSN1200B
HSN
84440050
Rotary shearing with four moving blades and two fixed blades
Textile Waste Recycling
The HSN1200B uses rotating moving blades and fixed blades to shear suitable fishing-net waste for a defined recycling process. Assess the proposed net material and preparation requirements before equipment selection.
Provide net polymer composition, cord or twine size, mesh construction, tangling condition and contamination details. Review removal of floats, weights, metal parts and other unsuitable hard objects before trials. Do not assume unsorted recovered nets can be fed directly into the machine.
Agree sorting and removal of unsuitable hard objects before trials. Cut size, throughput and downstream suitability depend on the actual feedstock, preparation, feeding and settings; the reference output is not a guarantee for every material.
| Item | HSN1200B reference specification |
|---|---|
| Cutting motor | 15 kW, 8-pole |
| Transfer motor | 2.2 kW, 4-pole inverter motor |
| Gearbox model | 120# |
| Listed gearbox ratios | 20:1 / 31:1; confirm supplied drive arrangement |
| Cutting motor pulley diameter | 140 mm |
| Moving-blade roller | 400 mm diameter x 600 mm |
| Control box | Separate control box |
| Input conveyor belt | 3000 x 520 mm |
| Output conveyor belt | 3000 x 520 mm |
| Moving blades | 4 alloy-steel blades |
| Fixed blades | 2 alloy-steel blades |
| Machine dimensions (L x W x H) | 6250 x 1414 x 1578 mm |
| Machine weight | 1800 kg |
| Cut size | Adjustable; confirm for the material and project |
| Reference production rate | 800-1200 kg/h, subject to material and operating conditions |
Reference values are based on the available HSN1200B product document, with the 1800 kg machine weight confirmed for this series. Confirm motor and drive arrangements, blade selection, guards, interlocks, electrical supply, complete dimensions, maintenance clearances and final supply scope in the formal quotation and approved drawing.
Packing dimensions, packing method and shipping gross weight are confirmed for the actual shipment. Machine weight is not shipping gross weight. Price, delivery, installation support and warranty terms are quoted for the agreed project configuration and confirmed in the contract.
Send your country, material photos and samples, composition, incoming size, required cut size, target hourly output, downstream process, site power supply and available space. Agree trial acceptance criteria before final equipment selection.
Request an HSN1200B Fishing Net Cutting Quote | Discuss Material Cutting Trials
Confirm supplied equipment, controls, guards and layout against final project documents.
