Fiber Cutting Machine

  • HSN2400B
  • HSN
  • 84440050
  • High efficiency and easy operation
  • Textile Waste Recycling
Availability:
Quantity:

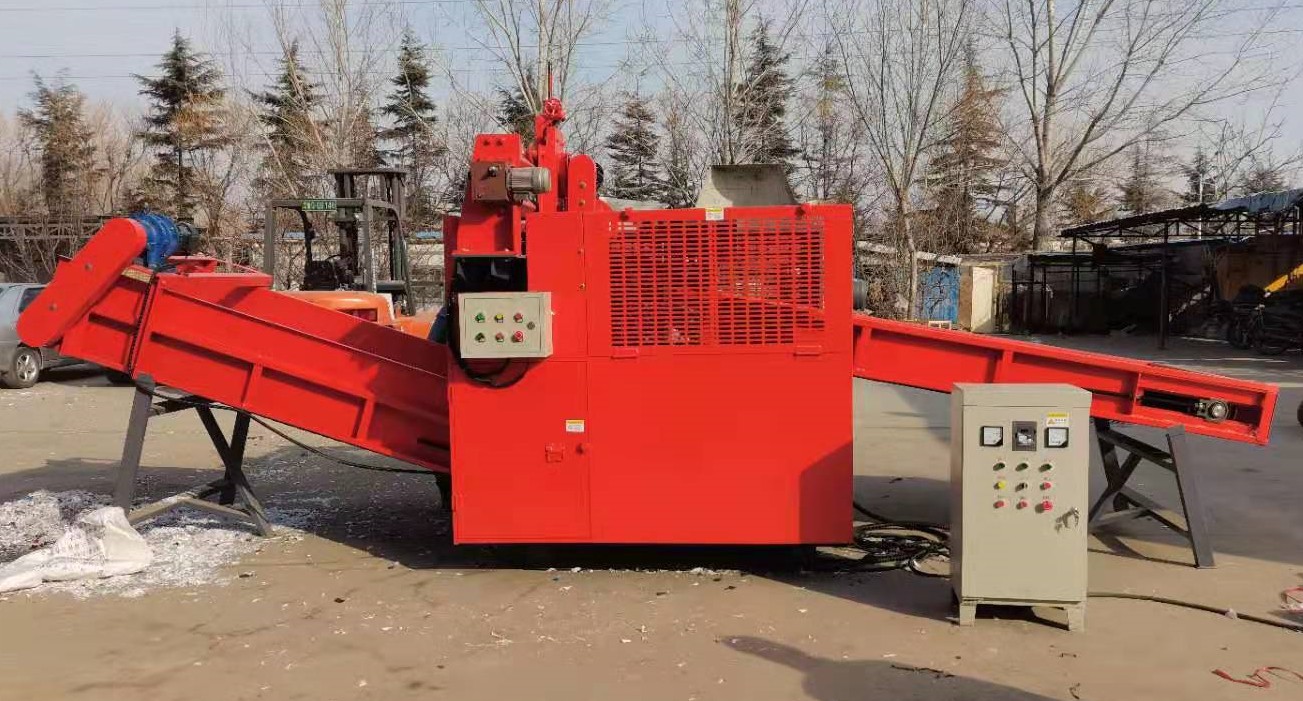

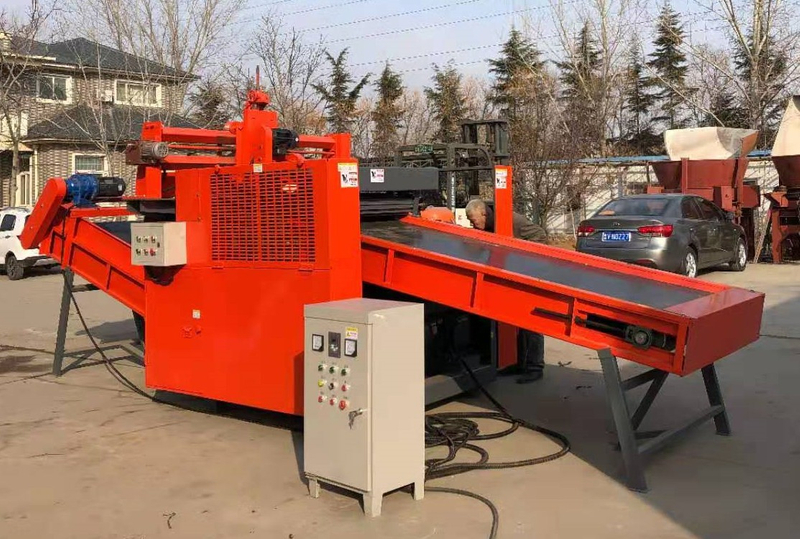

HSN2400B Textile Waste Cutter

Cutting Machine CE Certificate

Brief Introduction
HSN2400B TEXTILE WASTE CUTTER with high-speed rotary blades, which also be known as shredding machine or shearing machine, is one of our latest developed products, adopted the international leading design of oblique torsional rolling knifes moving & shearing onto the fixed-point of the fixed blade to realize continuous high-speed shear.


Technical Specifications

HSN CUTTING MACHINE FOR TEXTILE WASTE CUTTING

NO

MODEL

HSN2400B

1

Motor for cutting

8P 22kw 2sets

2

Motor for transferring

4P 4.0kw inverter motor

3

Gear box Model

135#

4

Ratio of gear box

55:01:00

5

Pulley of motor of cutting

Φ180

6

Moving blade Roller

Φ600*1200mm

7

Control box

individual

8

Input belt

3000*1100mm

9

output belt

3000*1100mm

10

Moving blade

Alloy steel 8pcs

11

Fixed blade

Alloy steel 2pcs

12

Machine size

6400*2080*1630

13

Cutting Size

Adjustable

14

Feeding Thickness

3-20cm

15

Production

3000-5000kg/h

Application
HSN2400B TEXTILE WASTE CUTTER is used for cutting and recycling waste clothes, cotton yarn, discarded clothing cotton, waste hemp, chemical fiber, linen, leather, plastic film, paper, fabric, textiles, nonwoven fabrics and so on.

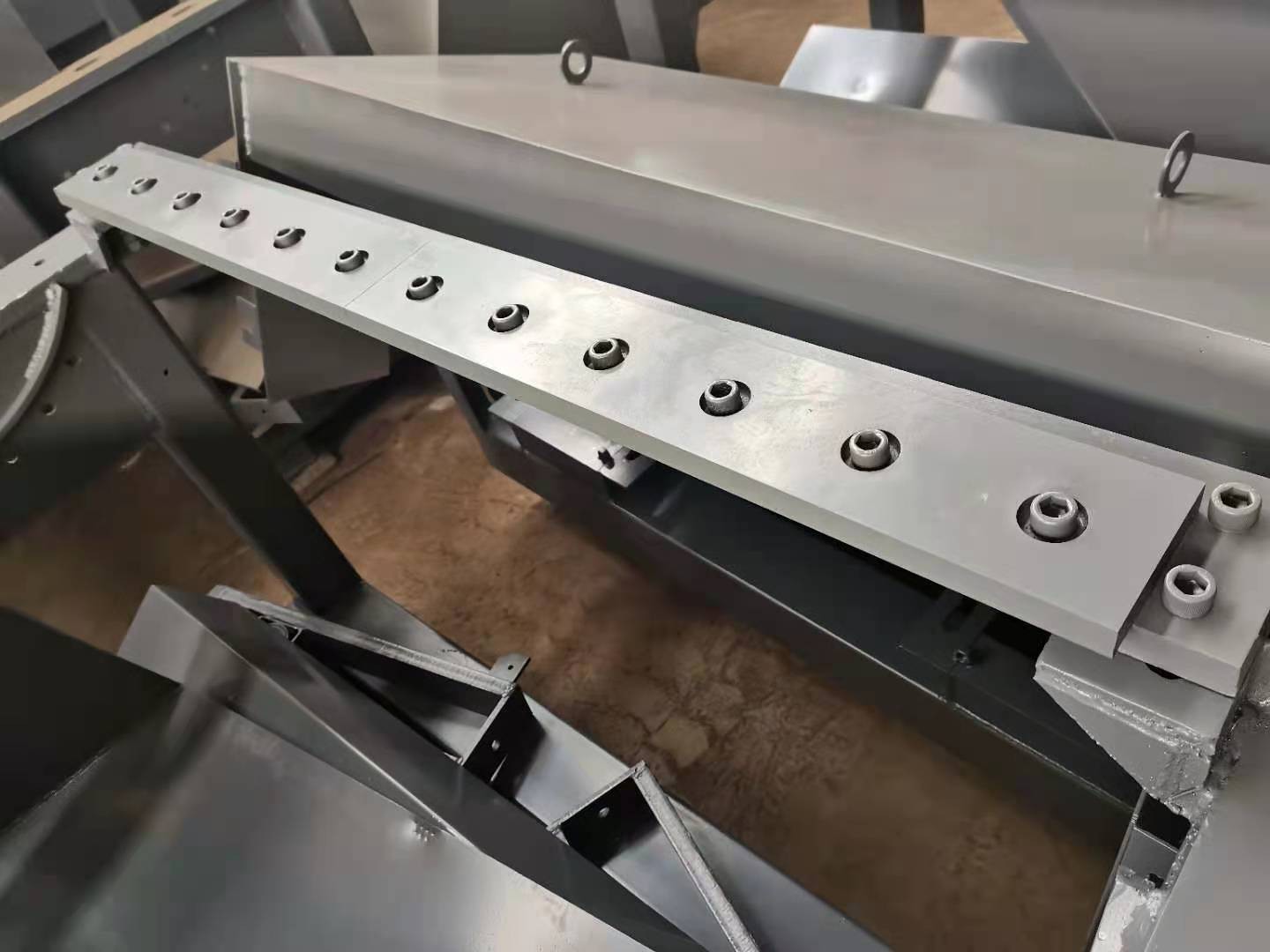

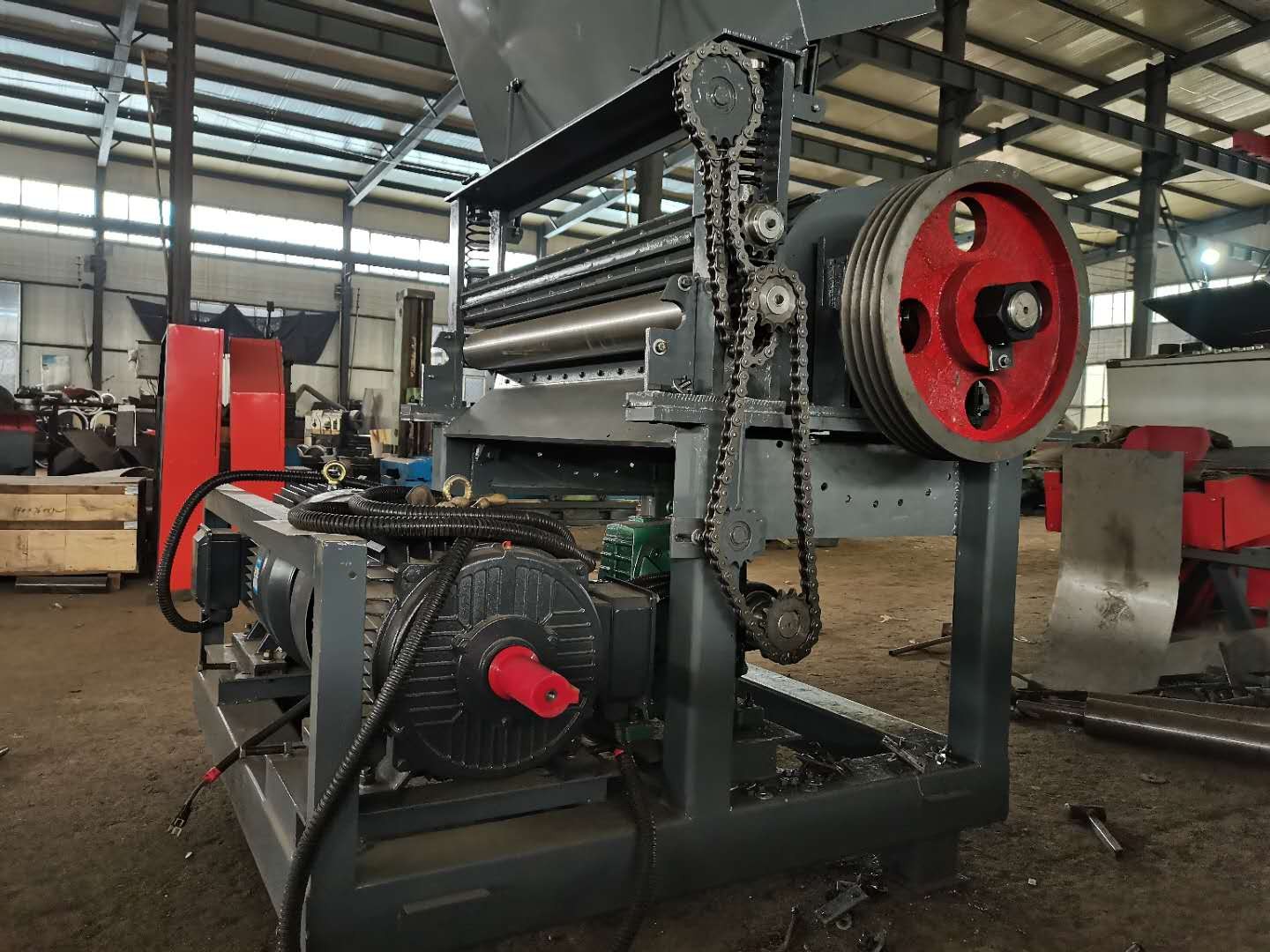

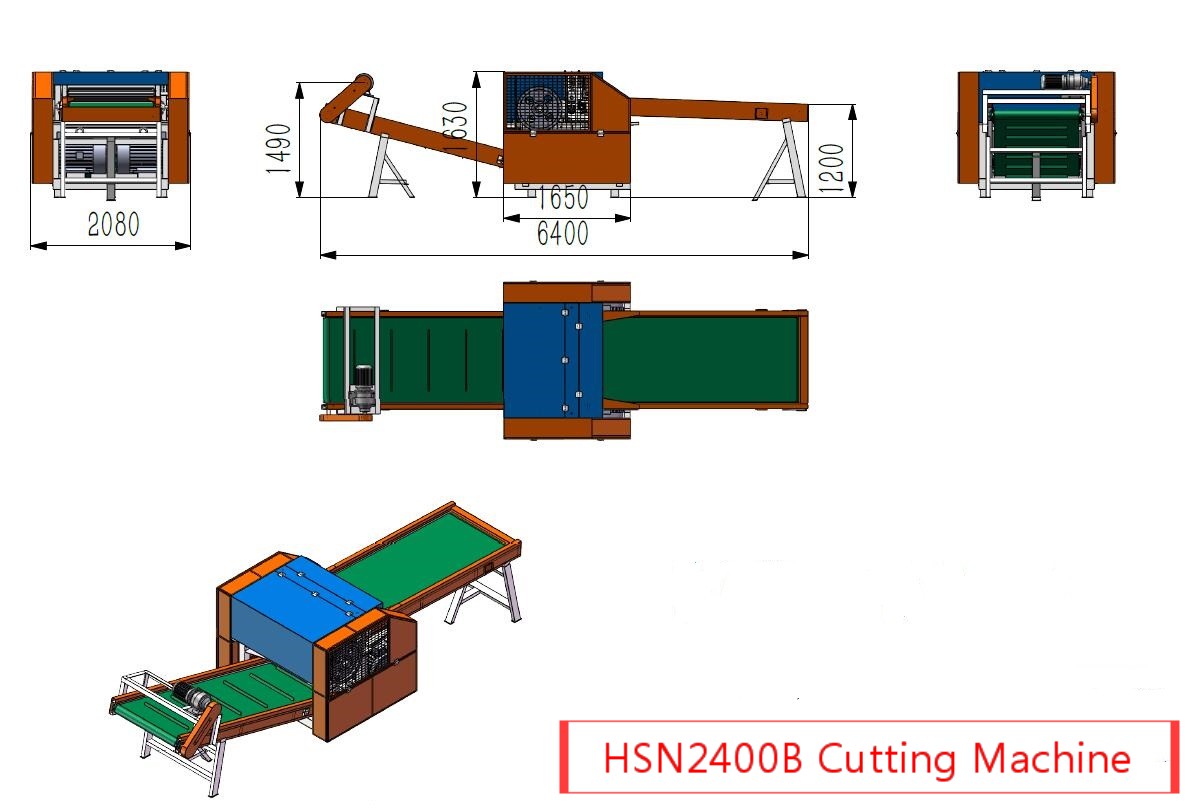

Layout Cutter HSN2400BDetails Cutter HSN2400B (7)Details Cutter HSN2400B (8)Details Cutter HSN2400B (1)
