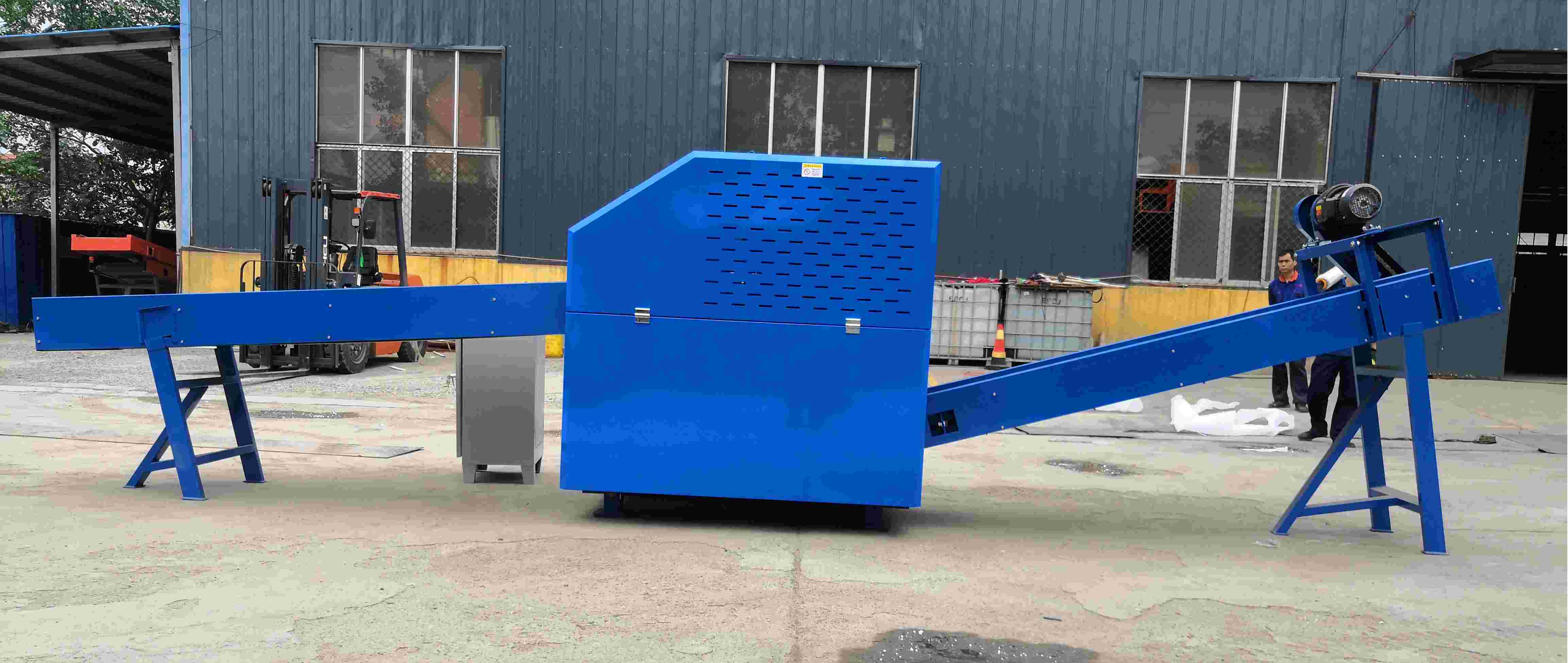

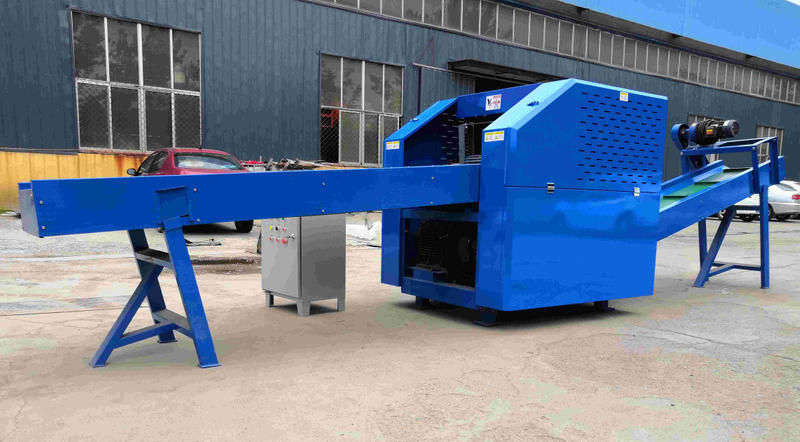

HSN1200B
HSN
84440050
Rotary shearing with four moving blades and two fixed blades
Textile Waste Recycling
The HSN1200B cuts suitable fabric offcuts and textile waste by rotary shearing as preparation for a defined recycling process. Review feedstock and required cut size before final equipment selection.
Provide fabric fiber blend, woven or knitted construction, thickness, coatings, elastane content, incoming size and contamination details. Identify seams, hard accessories or other unsuitable objects that require preparation or removal. Evaluate the proposed feeding condition and cut result through representative trials.
Agree sorting and removal of unsuitable hard objects before trials. Cut size, throughput and downstream suitability depend on the actual feedstock, preparation, feeding and settings; the reference output is not a guarantee for every material.
| Item | HSN1200B reference specification |
|---|---|
| Cutting motor | 15 kW, 8-pole |
| Transfer motor | 2.2 kW, 4-pole inverter motor |
| Gearbox model | 120# |
| Listed gearbox ratios | 20:1 / 31:1; confirm supplied drive arrangement |
| Cutting motor pulley diameter | 140 mm |
| Moving-blade roller | 400 mm diameter x 600 mm |
| Control box | Separate control box |
| Input conveyor belt | 3000 x 520 mm |
| Output conveyor belt | 3000 x 520 mm |
| Moving blades | 4 alloy-steel blades |
| Fixed blades | 2 alloy-steel blades |
| Machine dimensions (L x W x H) | 6250 x 1414 x 1578 mm |
| Machine weight | 1800 kg |
| Cut size | Adjustable; confirm for the material and project |
| Reference production rate | 800-1200 kg/h, subject to material and operating conditions |
Reference values are based on the available HSN1200B product document, with the 1800 kg machine weight confirmed for this series. Confirm motor and drive arrangements, blade selection, guards, interlocks, electrical supply, complete dimensions, maintenance clearances and final supply scope in the formal quotation and approved drawing.
Packing dimensions, packing method and shipping gross weight are confirmed for the actual shipment. Machine weight is not shipping gross weight. Price, delivery, installation support and warranty terms are quoted for the agreed project configuration and confirmed in the contract.
Send your country, material photos and samples, composition, incoming size, required cut size, target hourly output, downstream process, site power supply and available space. Agree trial acceptance criteria before final equipment selection.
Request an HSN1200B Fabric Cutting Quote | Discuss Material Cutting Trials
Confirm supplied equipment, controls, guards and layout against final project documents.
