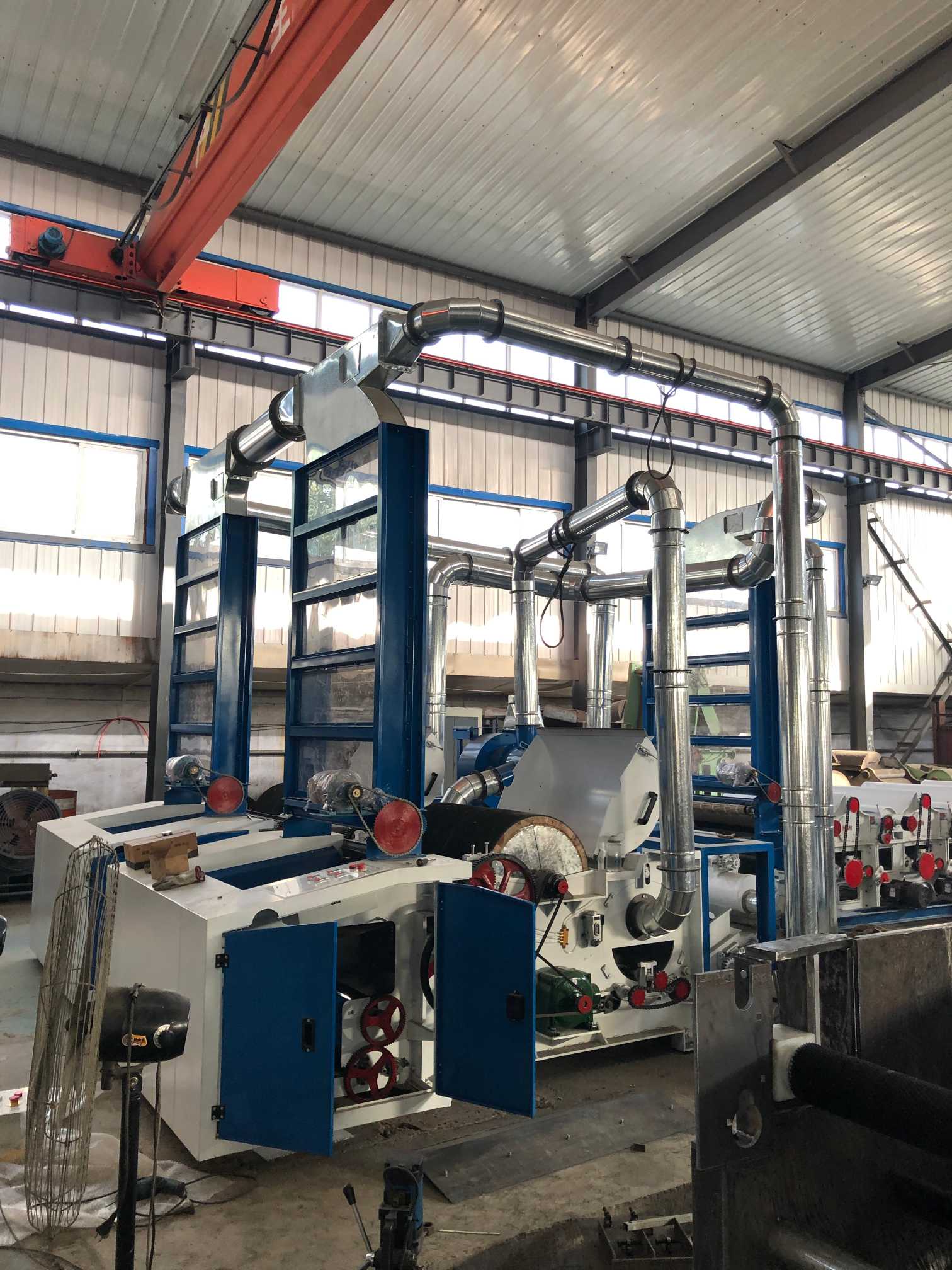

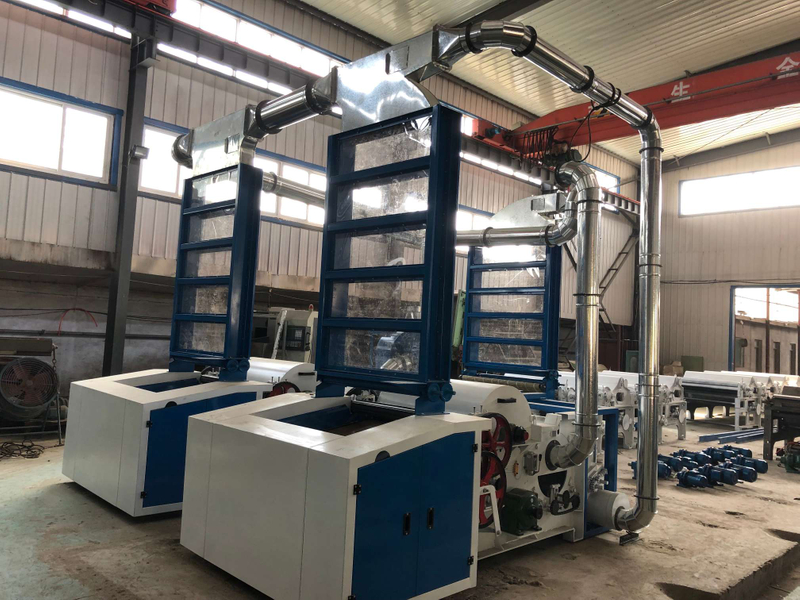

HSN62-1210W Fabric Waste Recycling Machine
Brief Introduction
2 openers of 600mm rolls 1.0m width with cotton boxes and 12 cleaners of 250mm rolls 1.3m width, Total 14 rolls machine per line, mainly recycle textile waste materials for fine spinning purpose, Opening machine consists of a pair feeding roller and an opening of cylinder, the opening Angle of nails mounted on the cylinder or comb card clothing for opening more completely, more cleaning machines improve mixing effects, the effects of obviously removing impurity, Also can increase running speed and production.
Main Features
Mature technology and economic investment
High efficiency and low power consumption.
Technical Specifications
Specification | 2 x HSN600 | 12 x HSN250W |
Roll Diameter | 600mm | 250mm |
Output | 160~300kg/hour | 160~300kg/hour |
Main Motor | 22kw+22kw | 6 x 11.0kw |
Feeding gearbox with motor | 2 x 1.5kw | 6 x 2.2kw |
Dust Suction Fan | 1 x 4.0kw | 4 x 4.0kw |
Material Feeding Fan | 1 x 7.5kw | 1 x 4.0kw |
Dust cage Diameter | 500mm | 500mm |
Weight | 2980kgs | 8360kgs |
Dimension(mm) | 3600*5000*1330 | 13150*1500*1150 |
Application
HSN62-1210W Textile Waste Recycling Machine can be used to recycle most kinds of textile waste ( cotton fabric, polyester fabric, knitting hosiery fabric, denim waste, hard waste tread yarn, clothing and garment rags) and get the fibers from these waste, recycled fibers can used for rotor spinning and other textile industrial to save costs, our HSN62-1210W textile waste recycling machine, normally be installed in spinning mills, garment mills, weaving mills, cotton mills, non-woven mills and fabric cotton waste processing mills.
