HSN3200
HSN
84440050
High efficiency and easy operation
Textile Waste Recycling
| Quantity: | |
|---|---|
Brief Introduction

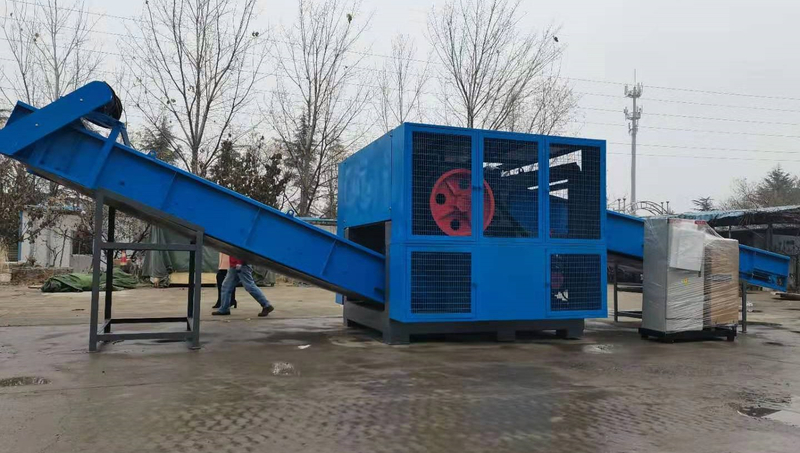

HSN3200 Fabric Waste Cutting Machine with high-speed rotary blades, which also be known as shredding machine or shearing machine, is one of our latest products, adopted the international leading design of oblique torsional rolling knifes moving & shearing onto the fixed-point of the fixed blade to realize continuous high-speed shear.
Technical Specifications
HSN CUTTING MACHINE FOR TEXTILE WASTE CUTTING | ||
MODEL | HSN3200 | |
1 | Motor for cutting | Two sets 8P45kw |
2 | Motor for transferring | 4P5.5kw inverter motor |
3 | Gear box Model | XWD5-23-7.5KW |
4 | Ratio of gear box | 23:01 |
5 | Pulley of motor of cutting | Φ220mm |
6 | Moving blade Roller | Φ1000*1600mm |
7 | Control box | individual |
8 | Input belt | 4000*1500mm |
9 | output belt | 4000*1500mm XWD5-43-5.5KW |
10 | Moving blade | Alloy steel 16pcs |
11 | Fixed blade | Alloy steel 4pcs |
12 | Machine size | 10000*3300*2400 |
13 | Cutting Size | 30cm Adjustable |
14 | Feeding Thickness | 3-20cm |
15 | Feeding Roller system | BWD3-87-2.2KW |
16 | Production | 8000kg/h |
Application
HSN3200 Fabric Waste Cutting Machine is used for cutting and recycling waste clothes, cotton yarn, discarded clothing cotton, waste hemp, chemical fiber, linen, leather, plastic film, paper, fabric, textiles, nonwoven fabrics and so on.
Brief Introduction
HSN3200 Fabric Waste Cutting Machine with high-speed rotary blades, which also be known as shredding machine or shearing machine, is one of our latest products, adopted the international leading design of oblique torsional rolling knifes moving & shearing onto the fixed-point of the fixed blade to realize continuous high-speed shear.
Technical Specifications
HSN CUTTING MACHINE FOR TEXTILE WASTE CUTTING | ||
MODEL | HSN3200 | |
1 | Motor for cutting | Two sets 8P45kw |
2 | Motor for transferring | 4P5.5kw inverter motor |
3 | Gear box Model | XWD5-23-7.5KW |
4 | Ratio of gear box | 23:01 |
5 | Pulley of motor of cutting | Φ220mm |
6 | Moving blade Roller | Φ1000*1600mm |
7 | Control box | individual |
8 | Input belt | 4000*1500mm |
9 | output belt | 4000*1500mm XWD5-43-5.5KW |
10 | Moving blade | Alloy steel 16pcs |
11 | Fixed blade | Alloy steel 4pcs |
12 | Machine size | 10000*3300*2400 |
13 | Cutting Size | 30cm Adjustable |
14 | Feeding Thickness | 3-20cm |
15 | Feeding Roller system | BWD3-87-2.2KW |
16 | Production | 8000kg/h |
Application
HSN3200 Fabric Waste Cutting Machine is used for cutting and recycling waste clothes, cotton yarn, discarded clothing cotton, waste hemp, chemical fiber, linen, leather, plastic film, paper, fabric, textiles, nonwoven fabrics and so on.
