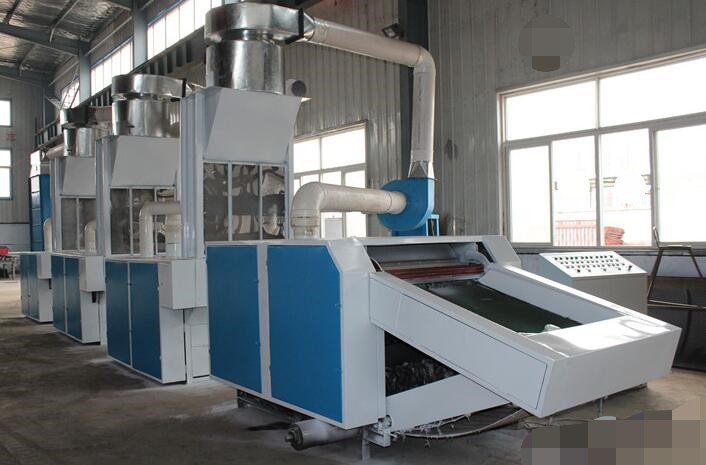

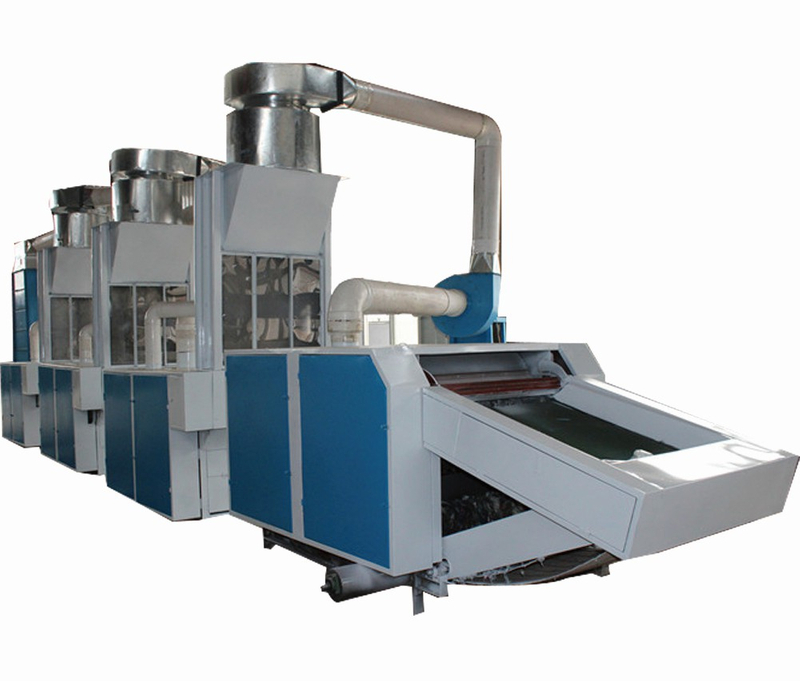

Fabric Recycling Machine for Nonwoven Industrial
Model No. HSNRL6153
Brief Introduction
One unit HSNRL6153 there are one opener with 600mm licker in roll, and three openers with 500mm licker in roll, this machine is specially designed for nonwoven industrial, with big capacity, more safety and reliability.
Technical Specifications
No | Item | Description | |
1 | Main Machines | HSN600 Opener + HSN500 Opener + HSN500 Opener + HSN500 Opener | |
For spinning industrial | For non-woven industrial | ||
2 | Size Per Machine | HSN600: 3600*1700*3900mm/HSN500: 2160*1700*4300mm | |
3 | Width of Working | 1000mm | |
4 | Working Roller | HSN600 Opener: φ600mm/Teeth wire or Steel Pins HSN500 Opener: φ500mm/Teeth wire | |
5 | Main Motor | 30kw 6 winding +22kw 6winding+22kw 6 winding +18.5kw 4 winding Siemens/ Or other high-quality Motor | |
6 | Capacity | 350-500kg/h(affected by operating, feeding and raw materials etc.) | |
7 | Feeding Gearbox | HSN600 Opener: 3.0KW/ HSN500 Opener: 3x2.2KW | |
8 | Transfer Fan | HSN600 Opener: 5.5KW / HSN500 Opener: 5.5KW HSN500 Opener: 4.0KW / HSN500 Opener: 4.0KW | |
9 | Dust Suction Fan | One big fan for four openers: 7.5kw | |
10 | Dust Collector system | One group of 39 roots dust collector bag type | |
11 | Control Box | Main motors soft start, all motors overload protection, PLC, Photoelectric sensor feedback control and frequency converter control. Siemens/ Or other high- quality electronics | |
12 | Bearing | KOYO/ Or other high-quality Bearing | |
13 | Installation Size | 12600*5800*4600(mm) | |
14 | Total Weight | 8160KG | |
15 | Lead Time | 35 days |
