HSN1800EP
HSN
84490090
Mature technology and Economic investment
Non Woven Industry
| Quantity: | |
|---|---|

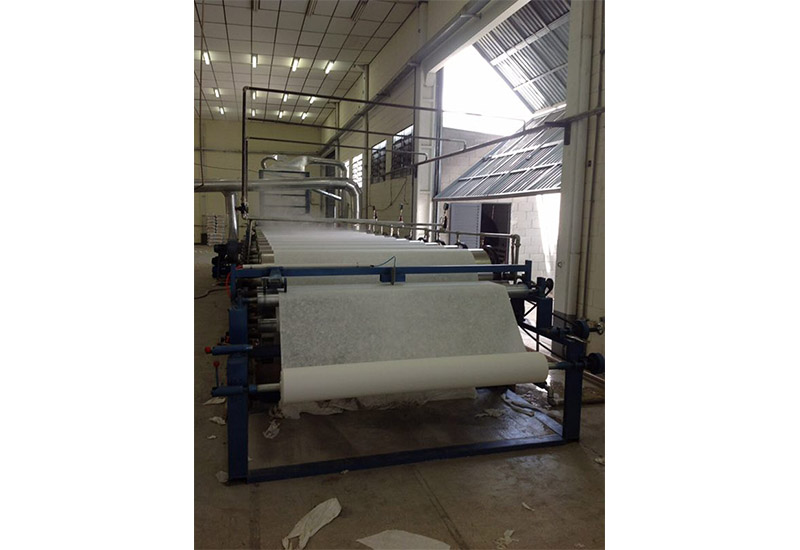

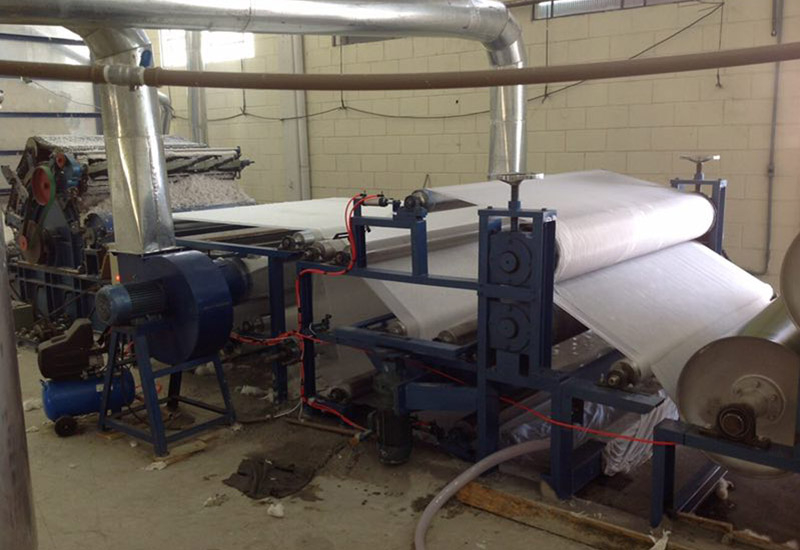

Embroidery lining Production Line
Name List of Production line layout Sketch
Sequence | Name | Sequence | Name |
1 | Feeding mouth of cotton recycled | 12 | Web Dryer |
2 | Soften Machine | 13 | Suction Fan |
3 | Ron Catcher | 14 | Air-Out Pipe |
4 | Suction Fan | 15 | Slash box and flatting machine |
5 | Outgoing Air Pipe | 16 | Rubber roller |
6 | Cotton -in pipe | 17 | Drying cylinder |
7 | Cotton basket | 18 | Drying reel |
8 | Cotton feeding roller | 19 | Drying rack |
9 | Carding machine | 20 | Counter |
10 | Lifting roller | 21 | Final Product |
11 | Web-Former | 22 |
FOB Price for 1.00m width final felt production line: USD60800.00
including installation fee USD1500.00
Packing: nude packing in 1x40’HQ
FOB Price for 2.00m width final felt production line: USD95800.00
including installation fee USD2300.00
Packing: nude packing in 1x20’ + 1x40’HQ
Specification and Performance of Production Line
1.product width: 80-220cm
2.GSM range:18-120GSM
3.Capacity: above 60kg/h
4.Mechanical Speed: 900m/h---1800m/h
5.Product quality: with a cross and machine direction ratio1:1, even surface, no fuzz-like appearance
6.Total power: 38kw
7.Floor space: 25m(L)*10m(W)*4M(H)
8.Worker needed: 3 to 4 workers for every shift
Installation | The seller is responsible for installation and debugging. The whole installation, debugging and training will take about 7 days, and the seller will send 2 engineers or installation, and the installation fee is 0USD/day/person. The buyer is responsible for the round-trip airplane tickets, accommodation, medical treatment, safety and relative fees. In addition the buyers should assign 1 interpreter and 2-4 workers, electrical wire outside the box and tools for installation to cooperate with the work. |
Guarantee | The seller is responsible for changing the parts which have the quality problem of the machines in one year, but except from the wearing parts and the quality problem were leaded by wrong operation and other man-made factors, and the quality problem should be confirmed by two sides. |
WEARING AND SPARE PARTS LIST
1.Wearing Parts
Sequence | Name | Type |
1 | Bearing of finishing roller(with copper cover) | |
2 | Bearing of drying cylinder | |
3 | Bearing of guide roller | |
4 | Bearing of cotton feeding roller | |
5 | Bearing cover of cotton feeding roller | |
6 | Drain valve | |
7 | Rubber ring of finishing roller | |
8 | Nylon mesh | |
9 | Cloth of finishing roller |
2.Spare Parts
Sequence | Name | Type | Quantity |
1 | Bearing of finishing roller(with copper cover) | ||
2 | Bearing of drying cylinder | ||
3 | Bearing of guide roller | ||
4 | Frictiong plate of winder | ||
5 | Rubber ring of finishing roller | ||
6 | Nylon mesh | ||
7 | Cloth of finishing roller |
