Denim Waste Recycling Machine

Denim Waste Recycling Machine

MODEL NO.: HSN600T-810W

Applications and Main Features:

HSN600T-810W textile machinery for cotton cleaning is one kind of textile recycling line that is engraved with high quality, efficiency and low power consumption.

This machine is suitable for banyan waste cotton, poly fabric waste and yarn waste.
Its output product has better spin value for spinning yarn above 10s counts.

This machine has one 1.0m HSN600T dual doffers opener and eight 1.3m HSN810W Cleaners for thread less cotton fiber.

Output is 180 to 220kg per hour

Staple length of fiber is 14 to 22mm.

Specification:

Input feeding material manual by conveyer of opener, then after auto continuous recycling/opening, the unopened waste which are dropped in bottom of the machinery will be carried by bamboo conveyer and that unopened material will return the feeding and recycling again. Auto continuous cycling with opening is carried out till the waste convert into fibers.
In HSN600T810W, there are total nine opening points. First is dual doffers opener with 600mm iron doffer mounted thick wire 10010*110216 and 250mm doffer mounted wire 5610*56119, after that 8 cleaning point of 250mm with fine metallic card clothing for thread less fibers.

Main technical parameter:

1.  1^st Opener with output fan transferring system

Doffer A diameter: iron 600 mm /Speed: 1178rpm

Doffer B diameter: iron 250 mm /Speed: 1178rpm

   2^nd Cleaner: doffer diameter: iron 250 mm /Speed: 2160rpm

 3^rd Cleaner: doffer diameter: iron 250 mm /Speed: 2160rpm

   4^th Cleaner: doffer diameter: iron 250 mm /Speed: 2160rpm

 5^th Cleaner: doffer diameter: iron 250 mm /Speed: 2160rpm

 6^th Cleaner: doffer diameter: iron 250 mm /Speed: 2160rpm

 7^th Cleaner: doffer diameter: iron 250 mm /Speed: 2160rpm

 8^th Cleaner: doffer diameter: iron 250 mm /Speed: 2160rpm

 9^th Cleaner: doffer diameter: iron 250 mm /Speed: 2160rpm

2. Individual Dust Fan: 9x1.5kw

3. Motor: 22kw for 1^st opener, 4x7.5kw for 2^nd – 5^th cleaner, 4x5.5kw for 6^th – 9^th cleaner.

4. Material Fan: 1x7.5kw

4. Total Power: 83.70kw

5. Outside dimension: 12590x1500x4100mm ( L x W x H ) working width is 1300 mm

6. Net weight: 8550kg  Approx

7. Workshop required:  6 meter by 18 meter and height 5 meter

8. Operator required: two persons for one line/shift

Layout

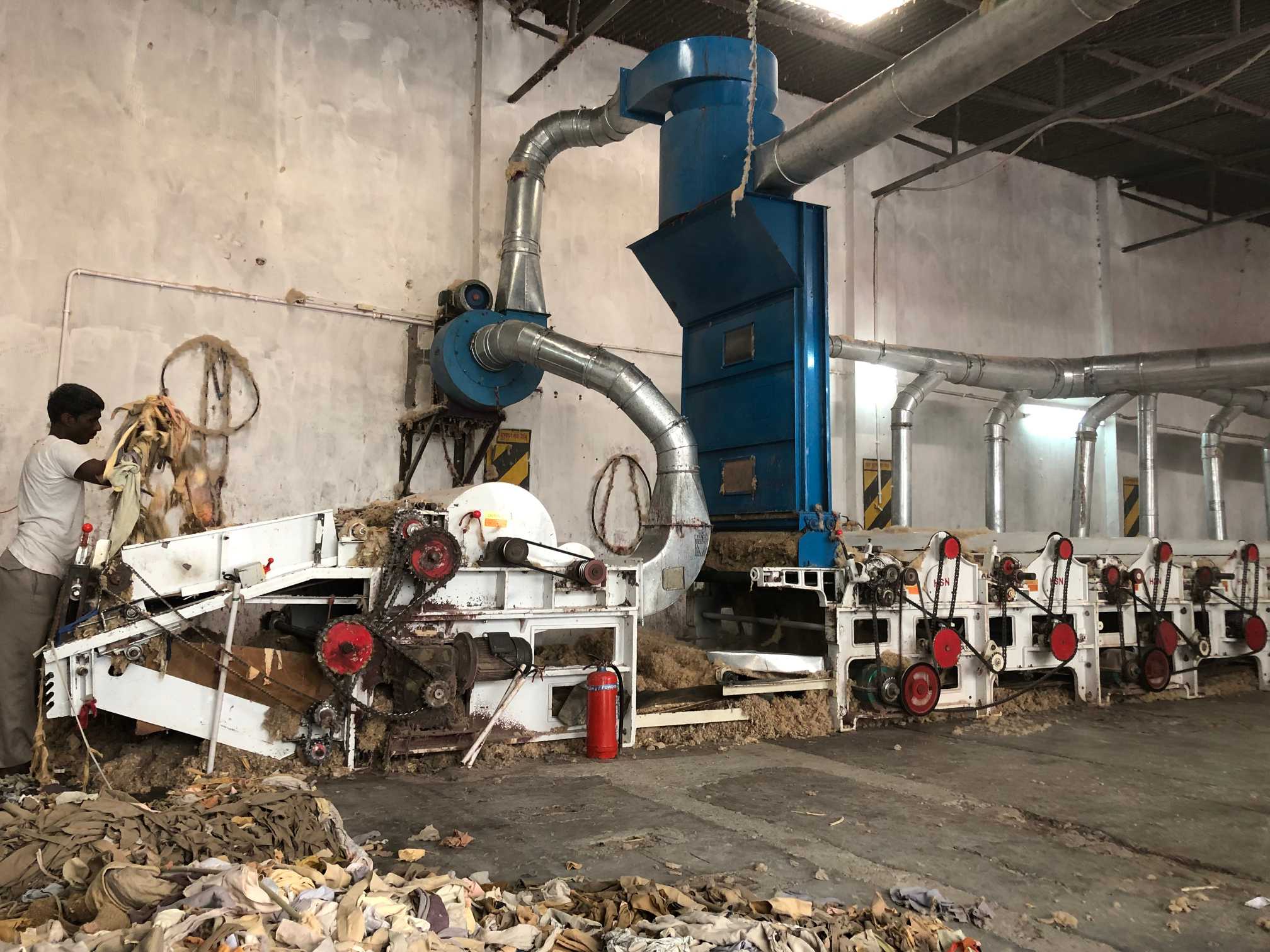

Pictures
