HSN1200B
HSN
84440050
Stable and reliable working performance
Textile Waste Recycling
| Quantity: | |
|---|---|
Brief Introduction

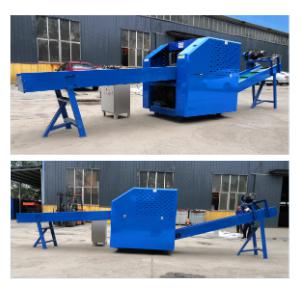

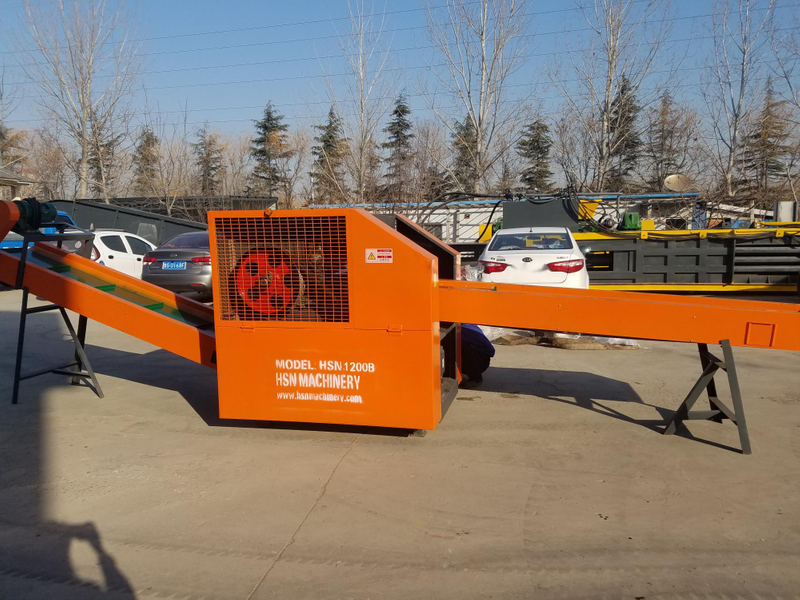

HSN1200B Cutting Machine with high-speed rotary blades, which also be known as shredding machine or shearing machine, is one of our latest products, adopted the international leading design of oblique torsional rolling knifes moving & shearing onto the fixed-point of the fixed blade to realize continuous high-speed shear.
Technical Specifications
HSN Series Textile Cutting Machine | ||
NO. | MODEL | HSN1200B |
1 | Motor for cutting | 8P15kw |
2 | Motor for transferring | 4P2.2kw inverter motor |
3 | Gear box Model | 120# |
4 | Ratio of gear box | 20:1 & 31:1 |
5 | Pulley of motor of cutting | D140mm |
6 | Moving blade Roller | D400x600mm |

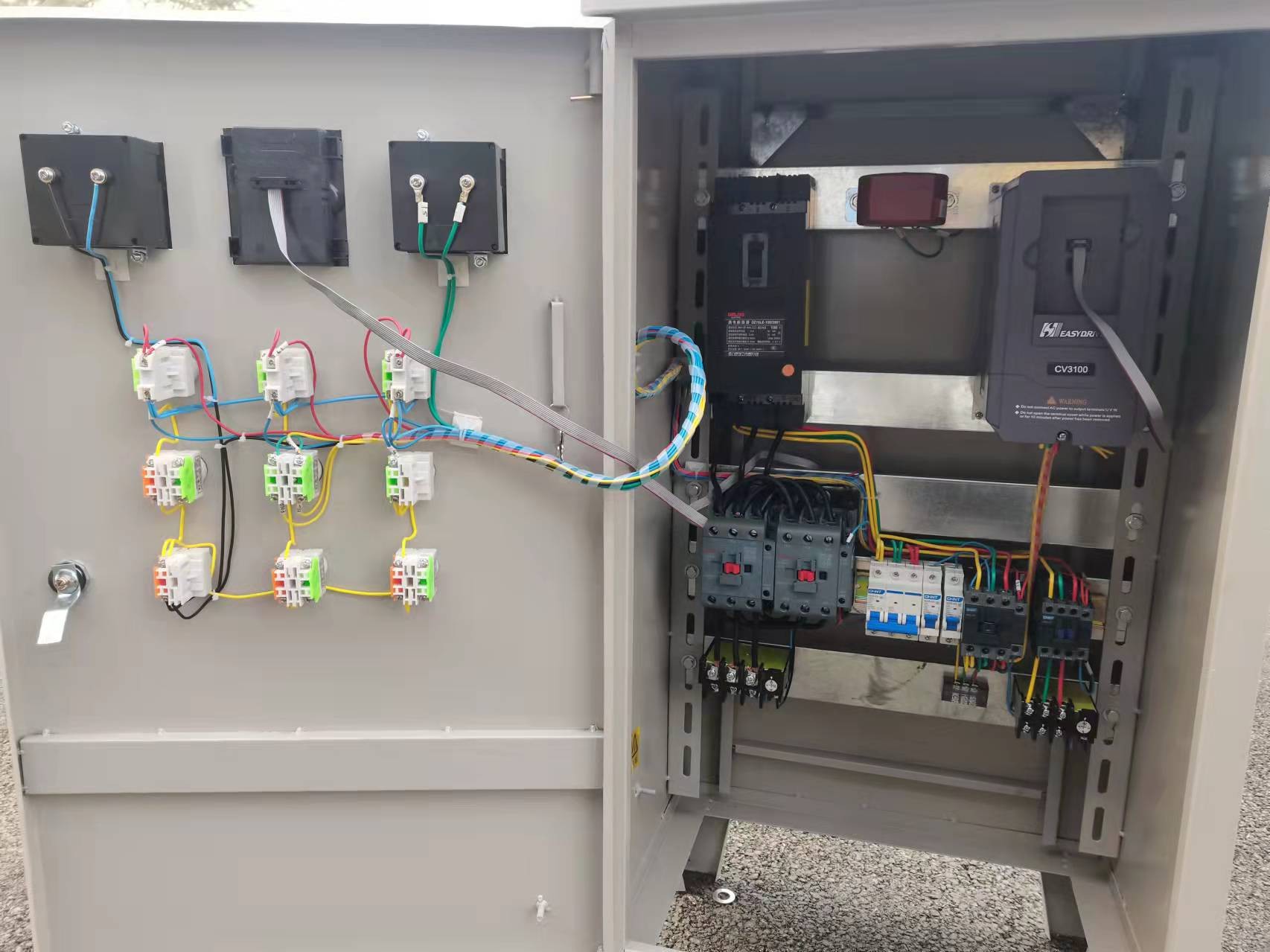

7 | Control box | Individual box |
8 | Input belt | 3000*520mm |
9 | Output belt | 3000*520mm |
10 | Moving blade | Alloy steel 4pcs |
11 | Fixed blade | Alloy steel 2pcs |
12 | Machine size | 6250*1414*1578mm |
13 | Machine Weight | 2150kg |
14 | Cutting Size | Adjustable |
15 | Production | 800-1200kg/h |
16 | Packing | 3220x1015x1150mm / Wooden Case / GW: 2000kg 2160x1710x1720mm / Wooden Case / GW: 410kg |
Application
HSN1200B Cutting Machine is used for cutting and recycling waste clothes, cotton yarn, discarded clothing cotton, waste hemp, chemical fiber, linen, leather, plastic film, paper, fabric, textiles, nonwoven fabrics and so on.
Brief Introduction
HSN1200B Cutting Machine with high-speed rotary blades, which also be known as shredding machine or shearing machine, is one of our latest products, adopted the international leading design of oblique torsional rolling knifes moving & shearing onto the fixed-point of the fixed blade to realize continuous high-speed shear.
Technical Specifications
HSN Series Textile Cutting Machine | ||
NO. | MODEL | HSN1200B |
1 | Motor for cutting | 8P15kw |
2 | Motor for transferring | 4P2.2kw inverter motor |
3 | Gear box Model | 120# |
4 | Ratio of gear box | 20:1 & 31:1 |
5 | Pulley of motor of cutting | D140mm |
6 | Moving blade Roller | D400x600mm |
7 | Control box | Individual box |
8 | Input belt | 3000*520mm |
9 | Output belt | 3000*520mm |
10 | Moving blade | Alloy steel 4pcs |
11 | Fixed blade | Alloy steel 2pcs |
12 | Machine size | 6250*1414*1578mm |
13 | Machine Weight | 2150kg |
14 | Cutting Size | Adjustable |
15 | Production | 800-1200kg/h |
16 | Packing | 3220x1015x1150mm / Wooden Case / GW: 2000kg 2160x1710x1720mm / Wooden Case / GW: 410kg |
Application
HSN1200B Cutting Machine is used for cutting and recycling waste clothes, cotton yarn, discarded clothing cotton, waste hemp, chemical fiber, linen, leather, plastic film, paper, fabric, textiles, nonwoven fabrics and so on.
