Cotton Waste Recycling Machine

  • HSN918W

  • HSN

  • 84451190

  • Mature technology with advance Safty Protection

  • Textile Waste Recycling

Availability:
Quantity:

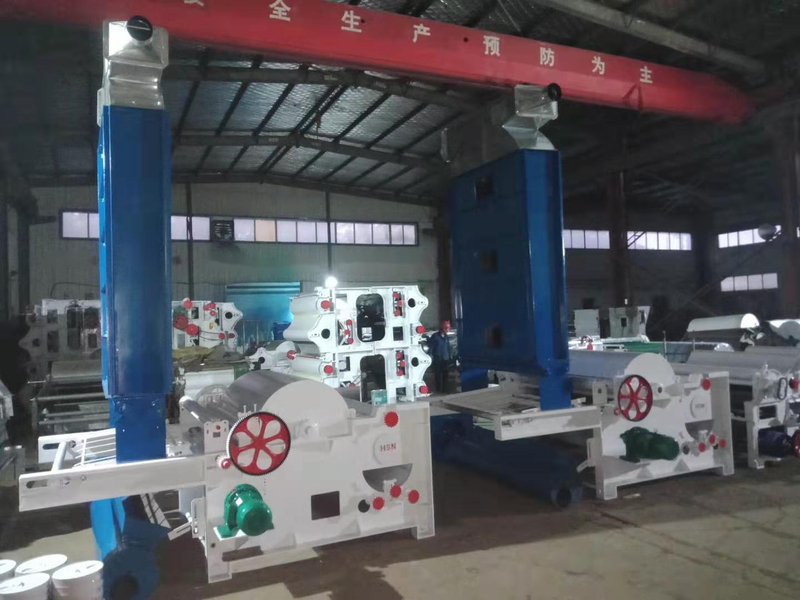

HSN918W Textile Waste Recycling Machine


Brief Introduction
In one textile waste recycling line HSN918W there are two openers with 600mm licker roll & two chute feed systems for efficient opening of waste materials, and five cleaners with 250mm licker roll, the whole line can be adjusted by inverters, equipped magnet Zig Zag tunnel to ensure safety.

Technical Specifications

Specification

2 x HSN918W   Opener

5 x HSN250W   Cleaner

Working Roll Size/Type

D600x1300mm/Iron   and Wire

D250x1300mm/Iron   and Wire

Roll   Rotation speed

1178rpm

1851rpm

Dust cage Diameter

500mm

500mm

Main Motor

2 x 22kw

1 x   7.5kw + 4 x 5.5kw

Feeding Roller Gearbox

2 x 2.2kw

3 x 2.2kw

Material Transferring Fan

2 x 4.0kw/1440rpm


Suction Fan

2 x 1.5kw/2880rpm

5 x 1.5kw/2880rpm

Output

200-260kg/hour

200-260kg/hour

Weight

3250kgs

3610kgs

Dimension(mm)

6060x1540x3800

5780x1540x3350


Application

HSN918W seven rolls textile waste recycling line can be used to recycle most kinds of textile waste ( cotton fabric polyester, knitting hosiery fabric, denim waste, hard waste tread yarn, clothing and garment rags) and get the fibers from these waste, recycled fibers can used for rotor spinning and other textile industrial purpose to save costs, the final product is thread less & having spin value 16 count and above, this machine is one of our best selling for India, Pakistan, Bangladesh based textile industry.


Layout Recycling Machine HSN918W


Textile Waste Recycling Machine CE-MD Certificate

Details HSN918W (2)Details HSN918W (1)
