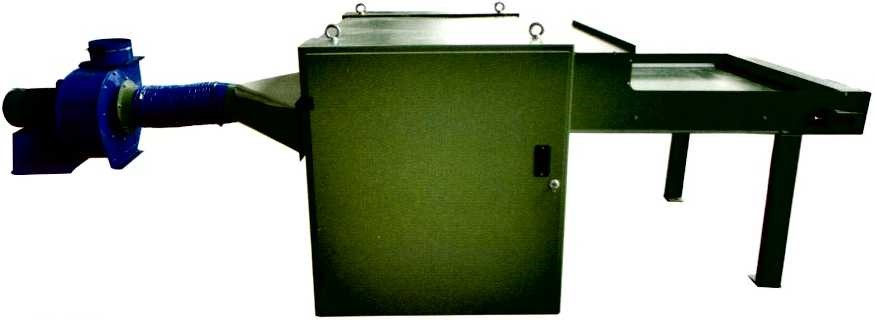

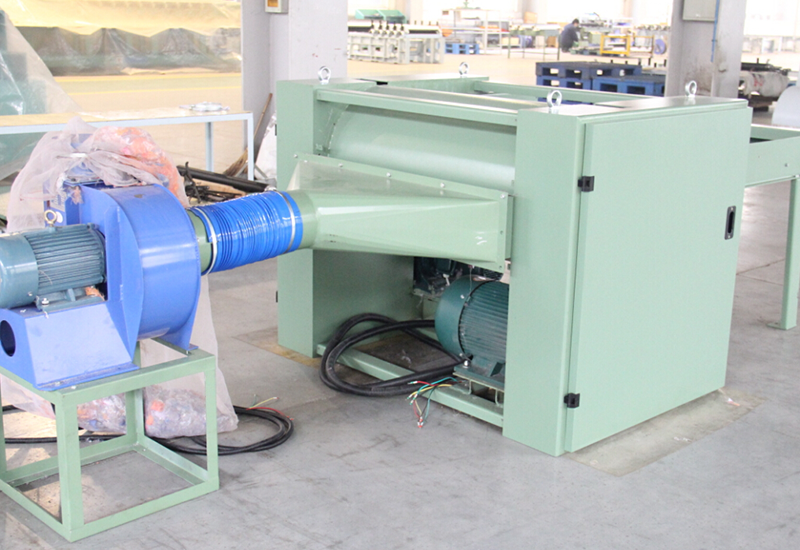

HSN1050B Opening Machine
Brief introduction
HSN1050B opening machine feeding part consists of the roller mounted card clothing and feed plate to form a holding system, the grip force can be adjusted by the distance of the roller with feed plate, the feeding amount can be adjusted randomly by the inverter. The high-speed swinging opening roller and feed plate both make the leftovers material fully torn and loose. The output pipe by a powerful fan and can take over the channel to a specified position.
Features
Opened fiber feel fluffy and soft.
Feed roller speed is controlled and adjusted by inverter according to different kinds of leftover material.
Enclosed cover and protective device to ensure safety to operator.
Standard and common parts used on the machine make it easy and convenient for maintenance; sheet metal processed by laser and CNC, surface by electrostatic spraying, and thus the machine is durable with its beautiful appearance.
Technical specifications
Working Width 1000mm
Input Voltage 380V, 50Hz, 3 Phase
Power 11.25Kw
Production 90~140Kg/h
Opening Ratio 95% or more
Dimension (Lx W x H) 2700x1450x15500mm
Net Weight 800Kg
Application
HSN1050B opening machine is specialized in opening various leftover material coming from manufacturers which to produce textile, yarn, wool, knitting and garments. After opening it into fiber by this machine, the leftover material can be recycled in rotor spinning. It will reduce cost, save energy and improve efficiency.
