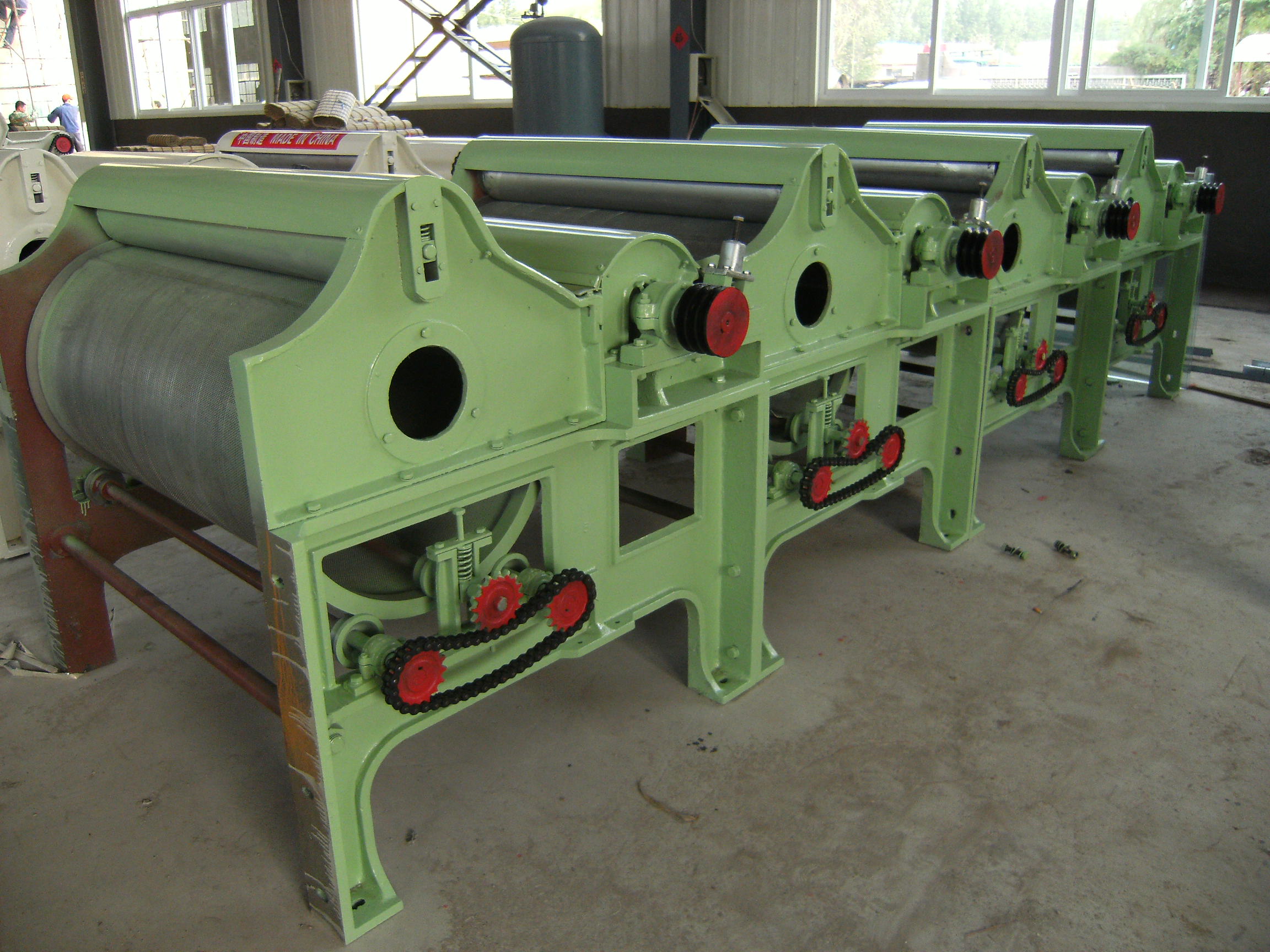

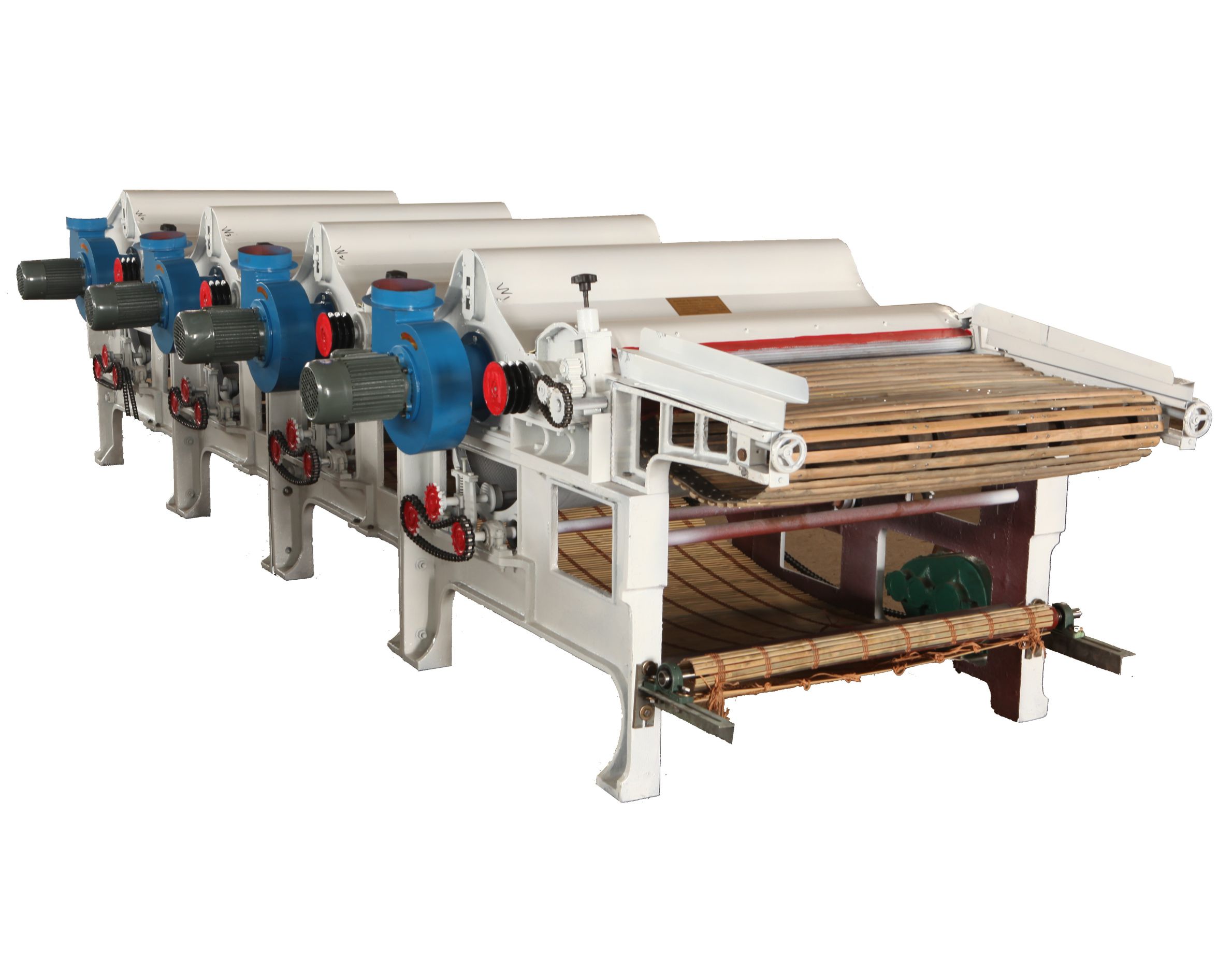

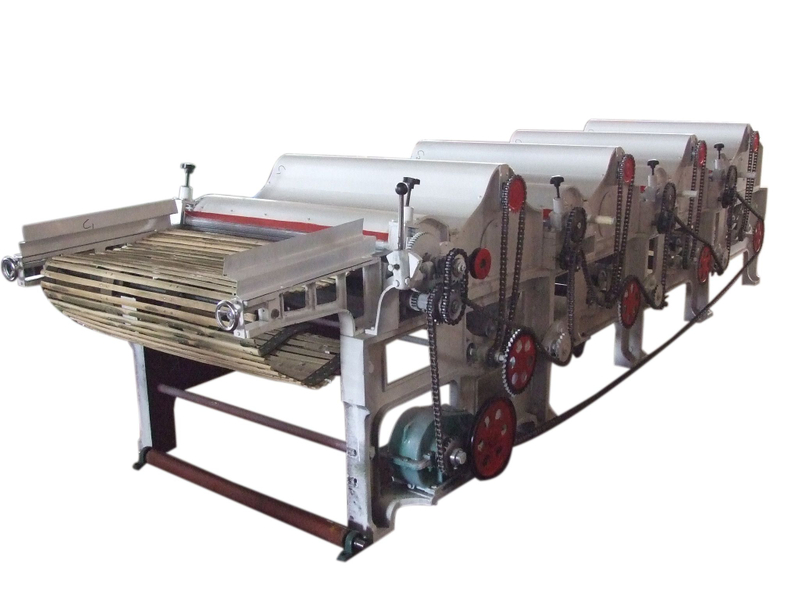

Cotton Fiber Blending Machine

The HSN410 four-roll machine combines cotton waste opening, cleaning and blending. Rotating barbed rollers help loosen fibers and separate impurities, with the processed fiber pressed into flakes. Suitable applications described for this model include blowroom and carding waste. Share your material photos and production target to discuss the configuration and request a quotation.
  • HSN410

  • HSN

  • 84451190

  • Mature technology and Economic investment

  • Blow room / card drops Recycling

Availability:

Textile Cotton Waste Blending Machine


MODEL NO.: HSN410



HSN610 (6*10inch Roll Blending Machine)

HSN510 (5*10inch Roll Blending Machine)

HSN410 (4*10inch Roll Blending Machine)

HSN310 (3*10inch Roll Blending Machine)

HSN210 (2*10inch Roll Blending Machine)



Applications and Main Features:

Textile cotton waste blending machine is engraved with high quality, efficiency and low power consumptions. This machine removes impurities in the cotton using mechanical centrifugal force emerged by high speed revolving of barbed rollers and fluffs cotton, then presses to flakes, it can be used to processing fiber blending, cleaning, cotton waste recycling, quilts wadding. It can remove dust, short floss, broken or ungined cotton, waste yarn, and so on, and keep health fiber which length is about 12-18mm. Best suitable for-Blow room/card dropping.


Main technical parameter:


Model No.

HSN610

HSN510

HSN410

HSN310

HSN210

Working   Width

1000 mm

1000 mm

1000 mm

1000 mm

1000 mm

Beater   Diameter

10inch/250   mm

10inch/250   mm

10inch/250   mm

10inch/250   mm

10inch/250   mm

Beater   Speed

1st-1900rpm   Others-2000rpm

1st-1900rpm   Others-2000rpm

1st-1900rpm   Others-2000rpm

1st-1900rpm   Others-2000rpm

1st-1900rpm   Others-2000rpm

Main Motor

1st-7.5kw        Others-5.5kw

1st-7.5kw        Others-5.5kw

1st-7.5kw        Others-5.5kw

1st-7.5kw        Others-5.5kw

1st-7.5kw        Others-5.5kw

Suction Fan

6x 1.1kw

5x1.1kw

4x 1.1kw

3x 1.1kw

2x 1.1kw

Fan Speed

2900rpm

2900rpm

2900rpm

2900rpm

2900rpm

Output

100-120   kg/h

100-120   kg/h

100-120   kg/h

100-120 kg/h

100-120   kg/h

Outer   Dimension

810*172*117cm

706*172*117cm

610*172*117cm

461*172*117cm

345*172*117cm

Weight

3400 KG

2800 KG

2250 KG

1650 KG

1150 KG


Main Features:

Mature technology and economic investment

High efficiency and low power consumption.



Blow room/card dropping
