HSNQ400S01
HSN
84440050
Easy operation and safe production, Less electric cost
Copper Waste Recycling
| Quantity: | |
|---|---|

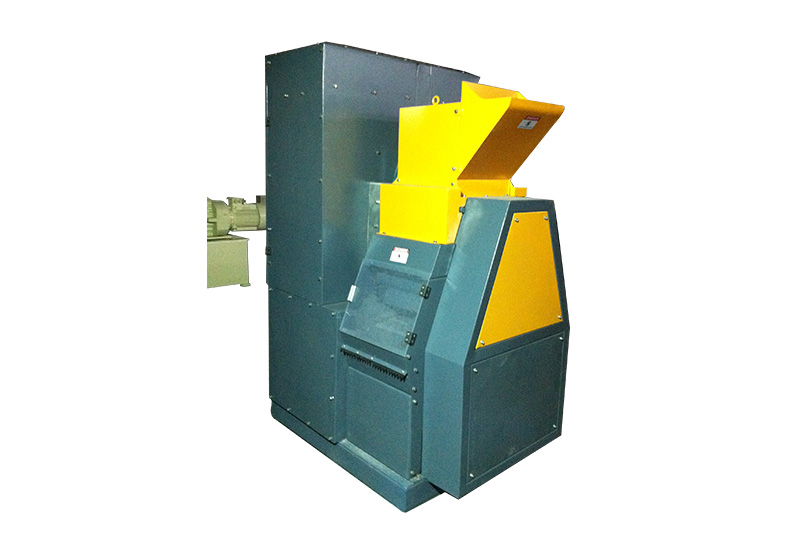

HSNQ400S01 Waste Copper Cable Recycling Machine
Brief Introduction
HSNQ400S01 Waste Copper Cable Recycling Machine, also called copper granulator, had been developing and manufacturing since 2008. It can deal with car cable, communications cable and miscellaneous cables. It consists of crusher, conveyor and separator, which is integrated on one compact unit, also has dust collection system, vibrator, air cleaner, suction fan inside.
this copper wire recycling machine adopts PLC control system.
Plastic & copper is different in density, the crusher can stripe the plastic and smash the copper (by high quality blade), then the plastic and copper can be separated by vibrator & suction fun together, the copper comes out from front outlet, plastic comes out in the other side, dusts will be sent by dust fan to dust collector.
We have different capacity machine for you choose. And we also offer customized service.
Main Features
Reasonable structure and collocation, less space but high productive efficiency.
Easy operation and safe production, Less electric cost.
Technical Specifications
Model | Power | Voltage | Cable Range | Blades | Output | Size | Weight |
HSNQ400S01 | 11.92kw | 380V | 0.5-20mm | 10+2 | 80-120kg/h | 1.45x1.33 x2.1m | 900kg |
Application
This machine is used for separating copper from all kinds of waste copper cable, telephone cable. (It can deal with 0.5-20MM scrap cable, single conductor diameter of 0.2-0.3mm best.)
HSNQ400S01 Waste Copper Cable Recycling Machine
Brief Introduction
HSNQ400S01 Waste Copper Cable Recycling Machine, also called copper granulator, had been developing and manufacturing since 2008. It can deal with car cable, communications cable and miscellaneous cables. It consists of crusher, conveyor and separator, which is integrated on one compact unit, also has dust collection system, vibrator, air cleaner, suction fan inside.
this copper wire recycling machine adopts PLC control system.
Plastic & copper is different in density, the crusher can stripe the plastic and smash the copper (by high quality blade), then the plastic and copper can be separated by vibrator & suction fun together, the copper comes out from front outlet, plastic comes out in the other side, dusts will be sent by dust fan to dust collector.
We have different capacity machine for you choose. And we also offer customized service.
Main Features
Reasonable structure and collocation, less space but high productive efficiency.
Easy operation and safe production, Less electric cost.
Technical Specifications
Model | Power | Voltage | Cable Range | Blades | Output | Size | Weight |
HSNQ400S01 | 11.92kw | 380V | 0.5-20mm | 10+2 | 80-120kg/h | 1.45x1.33 x2.1m | 900kg |
Application
This machine is used for separating copper from all kinds of waste copper cable, telephone cable. (It can deal with 0.5-20MM scrap cable, single conductor diameter of 0.2-0.3mm best.)
