Computerized Quilting Machine

  • HSNQ-2

  • HSN

  • 84522190

  • Automatic

  • Home Textile

Availability:
Quantity:

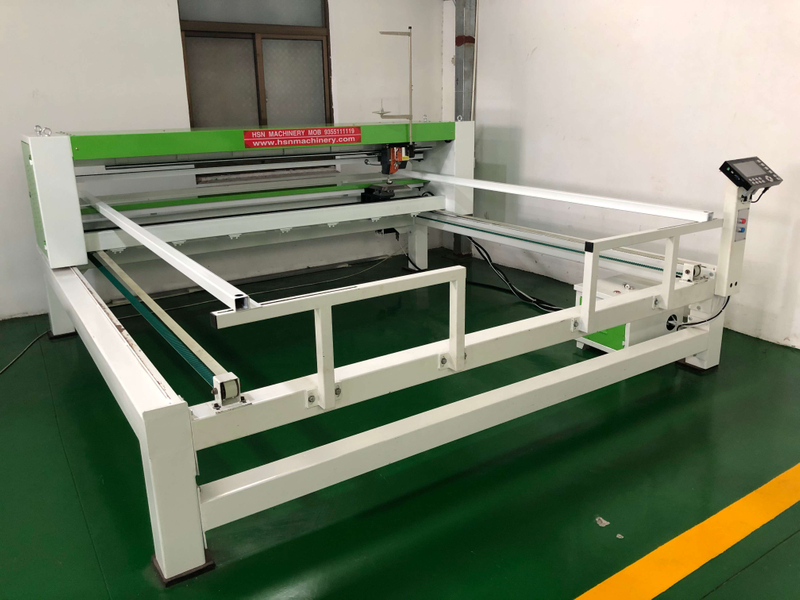

HSNQ-2 Fully Automatic Computerized Quilting Machine



Brief Introduction & Main Features
Overall Dimension is small, HSNQ-2 fully automatic Computerized Quilting Machine only takes 3/5 area of other quilting machines, working table occupying limited space, highly saving working space, it is suitable specially to install at small shop.

High precision: Machine structure is totally different from traditional quilting machine, quilting and sewing driven by stepping motor, and all are needle head moving, so quilting with high precision.

Adopt big stroke quilting needle head, improved stability on quilting or sewing thicker materials.

Optimized the whole machine combination, use of precise steel polyurethane stepping belt.


Technical Specifications

Model

HSNQ-2

Overall Dimension (L x W x H)

2.8x2.8x1.2m

Max Quilting Size

2.2x2.4m (can be adjusted per customer’s requirement)

Type of Quilting

Single needle/Double locking sewing/ big Rotary Shuttle

Max thickness

     1300g/m2

Max Rotating Needle Speed

2000PRM

Distance between needles

1.0-10.0mm

Needle

SINGER MR5 18~22#

Power

220V/50Hz   3.0KW

Driven Motor

Stepping Motor

Weight

680KG

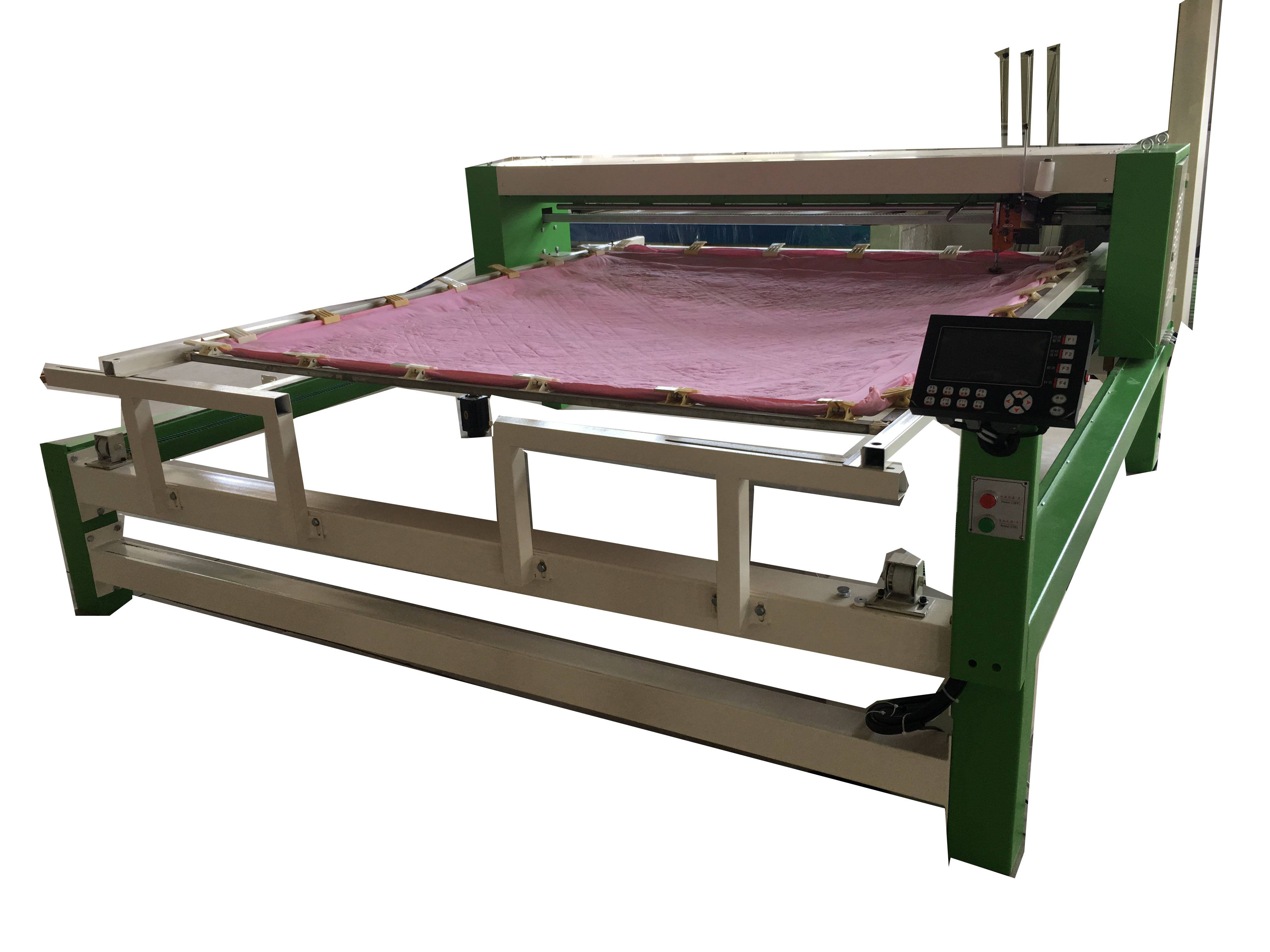

HSNQ-2 Quilting (6)Application

Widely applied to all sorts of quilts, blankets, mattress covers, sleeping bags, bed covers and curtains etc.
