HSN903
HSN
84440050
High efficiency and easy operation
Textile Waste Recycling
| Quantity: | |
|---|---|
Brief Introduction

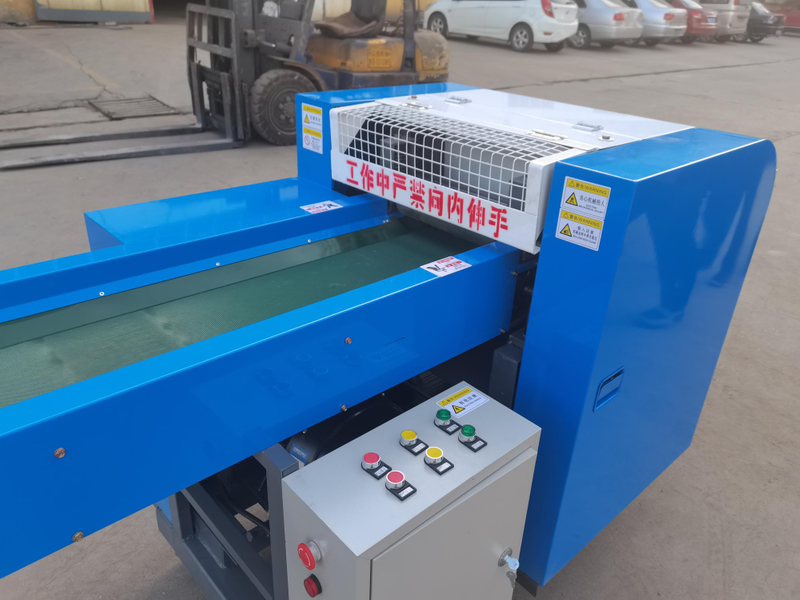

HSN903 cutting machine with high-speed rotary blades, which also be known as shredding machine or shearing machine, is one of our latest cutting machines. This machine applies the international leading oblique torsional rolling knife to the fixed-point moving shear design of the fixed blade to realize continuous high-speed shear, thus saving much energy, reducing noise and improving productive.
Technical Specifications
HSN Series Textile Cutting Machine | ||
NO. | MODEL | HSN903 |
1 | Motor for cutting | 8P5.5kw |
2 | Motor for transferring | 4P1.5kw |
3 | Gear box Model | 100# |
4 | Ratio of gear box | 15:1 |
5 | Pulley of motor of cutting | D100 |
6 | Moving blade Roller | D300 |
7 | Control box | distribution box |
8 | Input belt | 1400*330mm |
9 | output belt | 1400*330mm |
10 | Moving blade | Alloy steel 4pcs |
11 | Fixed blade | Alloy steel 2pcs |
12 | Machine size | 2100*1000*1100 |
13 | Cutting Size | Adjustable |
14 | Production | 450-750kg/h |
Application
HSN903 cutting machine is used for cutting and recycling waste clothes, cotton yarn, discarded clothing cotton, waste hemp, chemical fiber, linen, leather, plastic film, paper, fabric, textiles, nonwoven fabrics and so on.
Packing: 215x122x133cm / Wooden Case / GW: 830kg
