Banyan Waste Recycling Machine

  • HSN918W610W

  • HSN

  • 84451190

  • Mature technology with advance Safty Protection

  • Textile Waste Recycling

Availability:
Quantity:

HSN918W610W (Eight Rolls Textile Waste Recycling Machine)


Brief Introduction


In one textile waste recycling line HSN918W610W there are two openers with 600mm licker roll, six cleaners with 250mm licker roll, the whole line is controlled by PLC, equipped magnet Zig Zag tunnel to ensure safety.

Technical Specifications

Specification

2 x HSN918W   Opener

6 x HSN250W   Cleaner

Working Roll Size/Type

D600x1300mm/Iron   and Wire

D250x1300mm/Iron   and Wire

Roll   Rotation speed

1178rpm

1851rpm

Dust cage Diameter

500mm

500mm

Main Motor

2 x 22kw

1 x   7.5kw + 5 x 5.5kw

Feeding Roller Gearbox

2 x 2.2kw

3 x 2.2kw

Material Transferring Fan

2 x 4.0kw/1440rpm


Suction Fan

1 x 5.5kw/2880rpm

1 x 5.5kw/2880rpm

Output

220-280kg/hour

220-280kg/hour

Weight

3250kgs

4310kgs

Dimension(mm)

6060x1540x3800

6800x1540x3350


Application


HSN918W610W eight rolls textile waste recycling line can be used to recycle most kinds of textile waste ( cotton fabric polyester, knitting hosiery fabric, denim waste, hard waste tread yarn, clothing and garment rags) and get the fibers from these waste, recycled fibers can used for rotor spinning and other textile industrial purpose to save costs, the final product is thread less & having spin value 16 count and above, this machine is one of our best selling for India, Pakistan, Bangladesh based textile industry.


Fabric to Fiber(1)

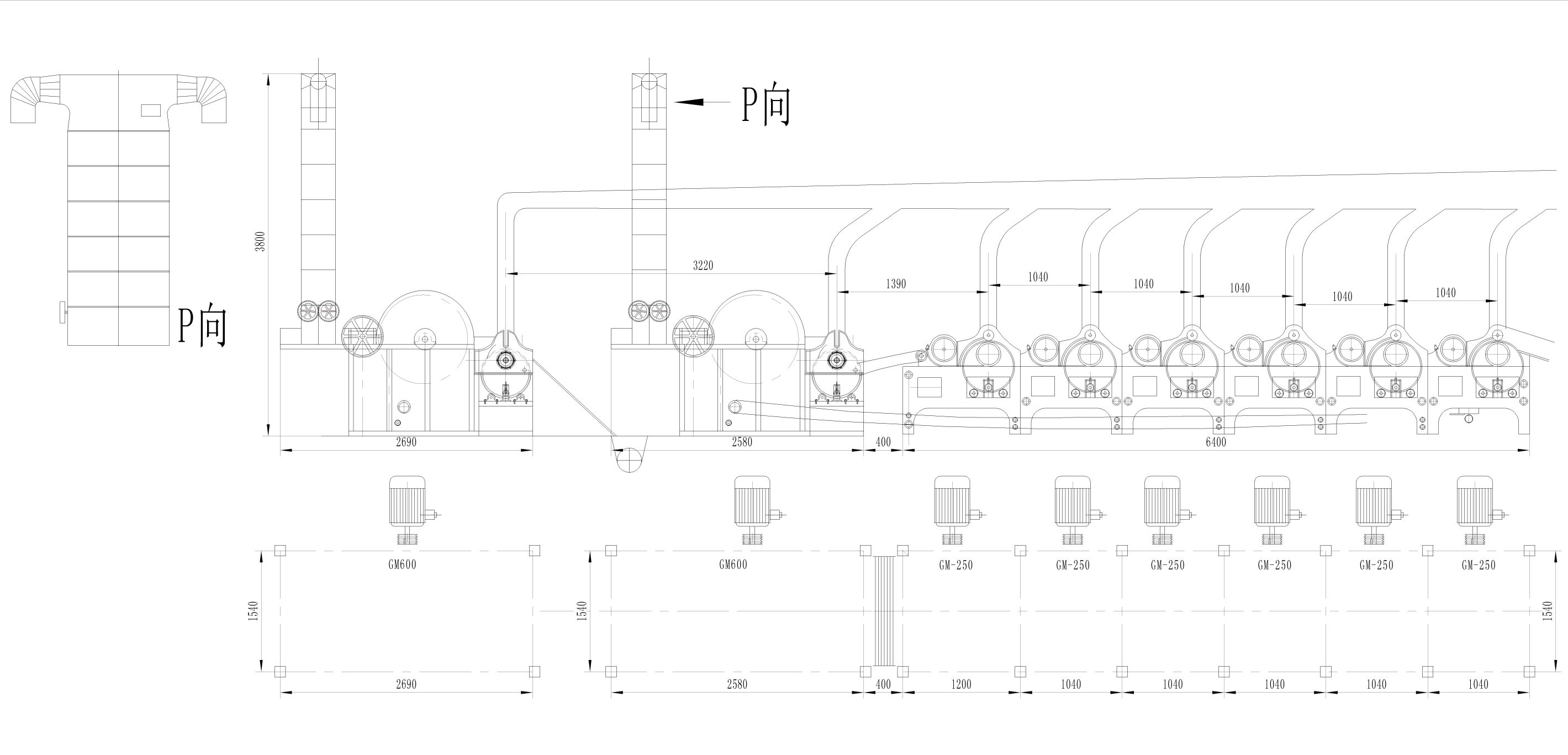

Layout HSN918W610


Layout N918W610W


Textile Waste Recycling Machine CE-MD Certificate

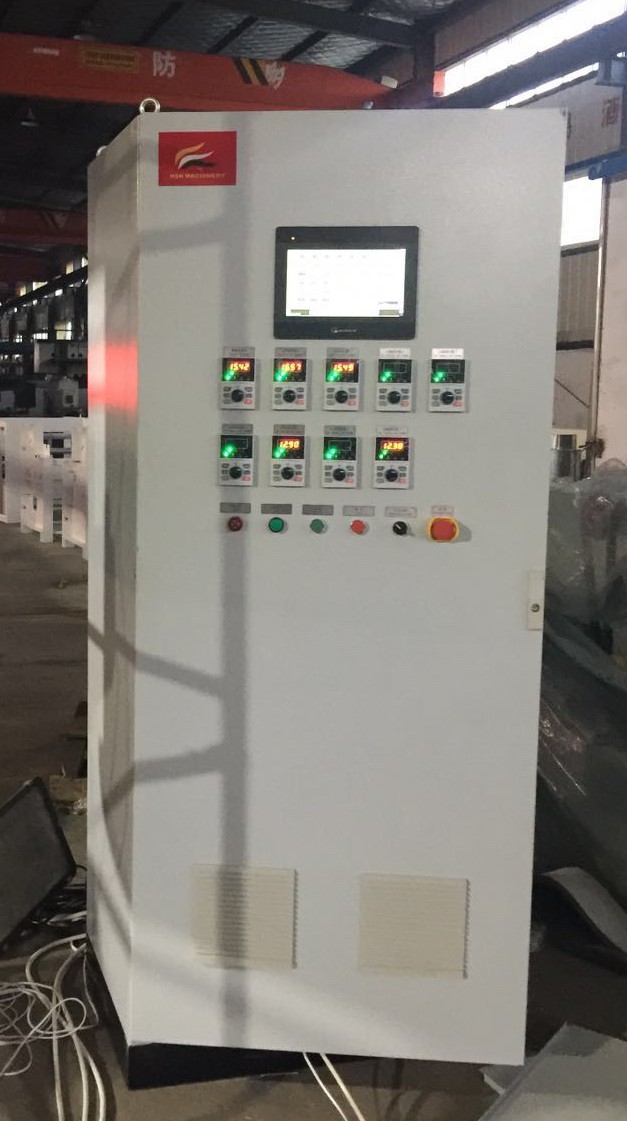

Control Panel (1)

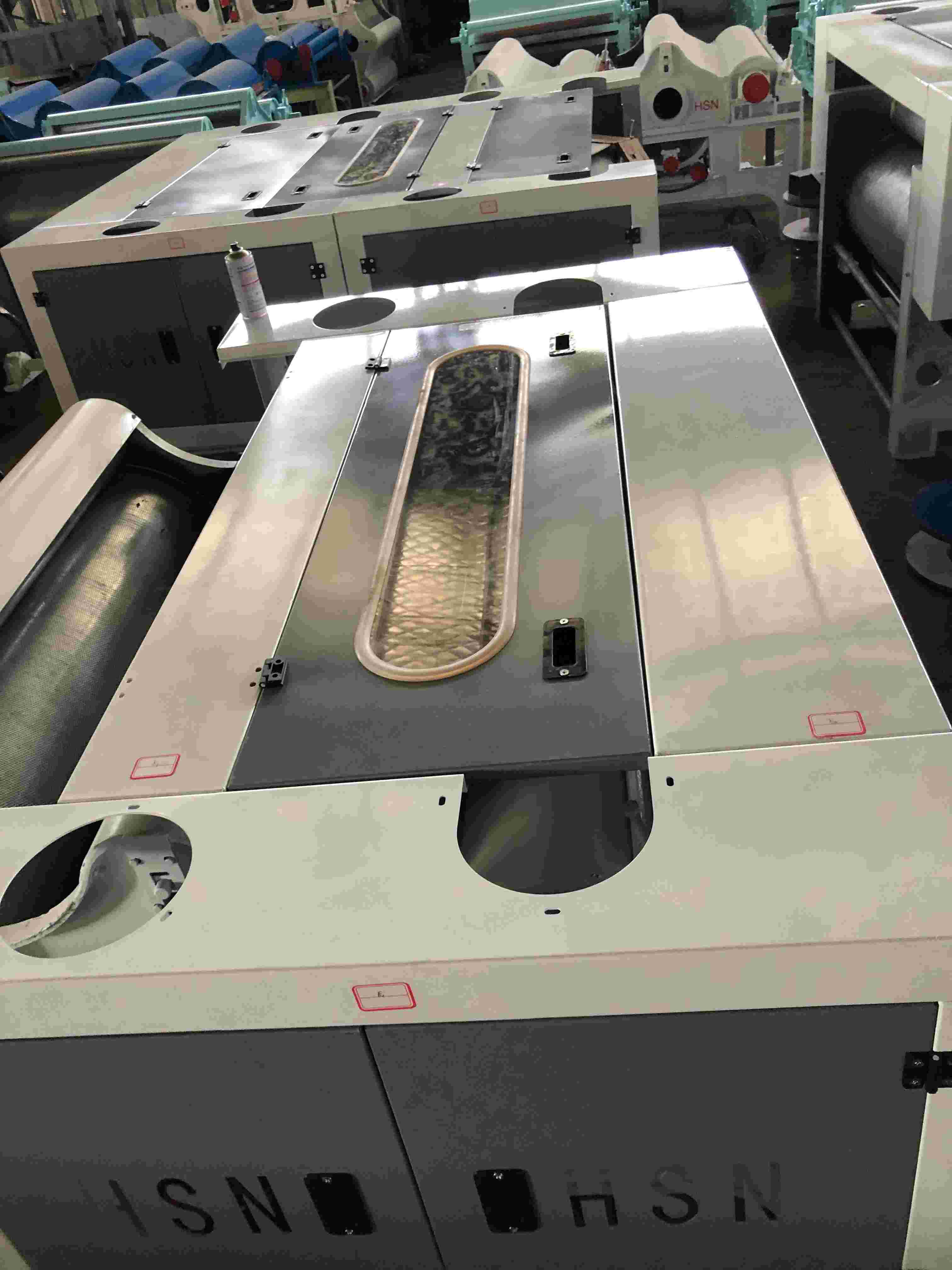

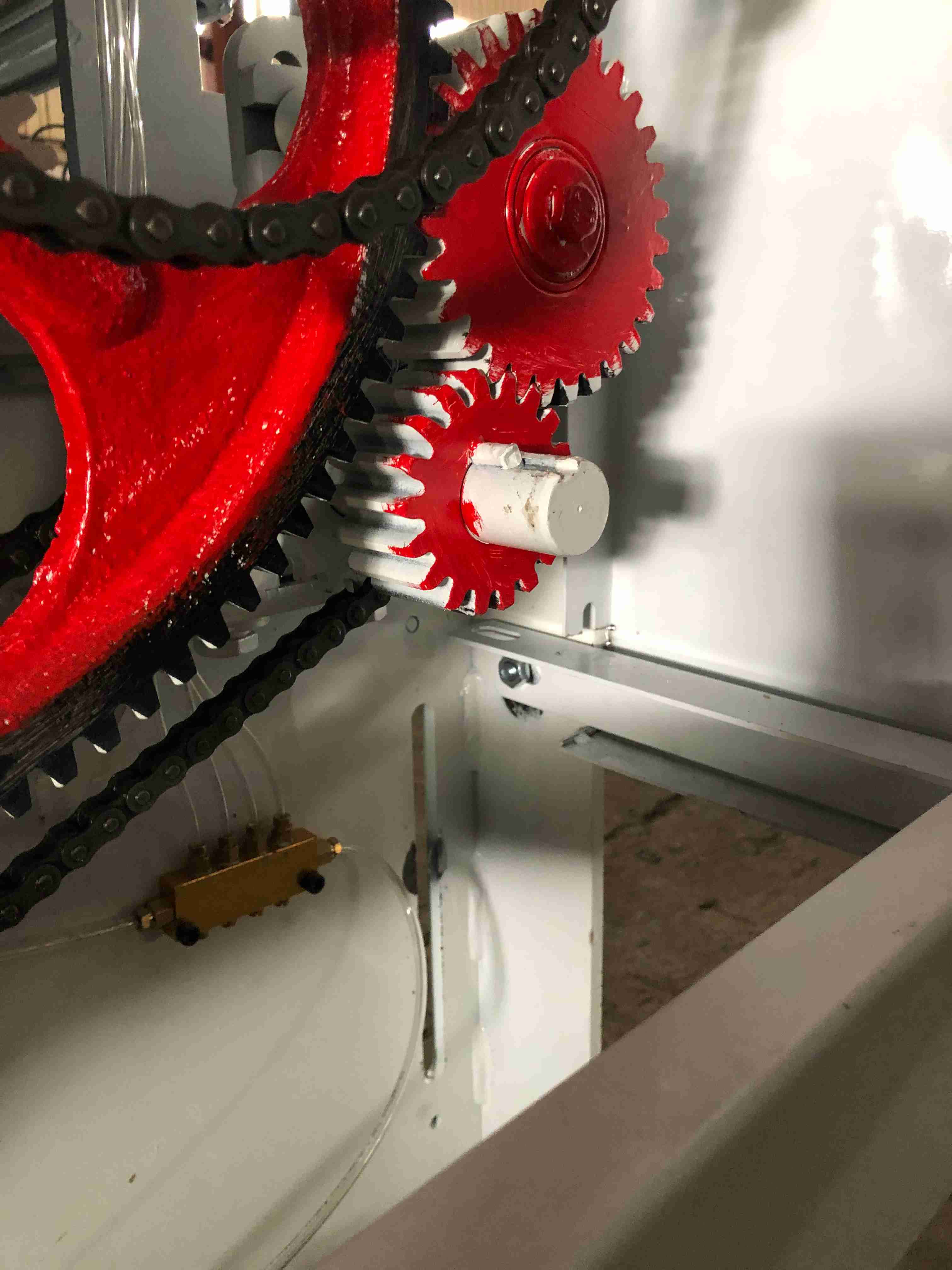

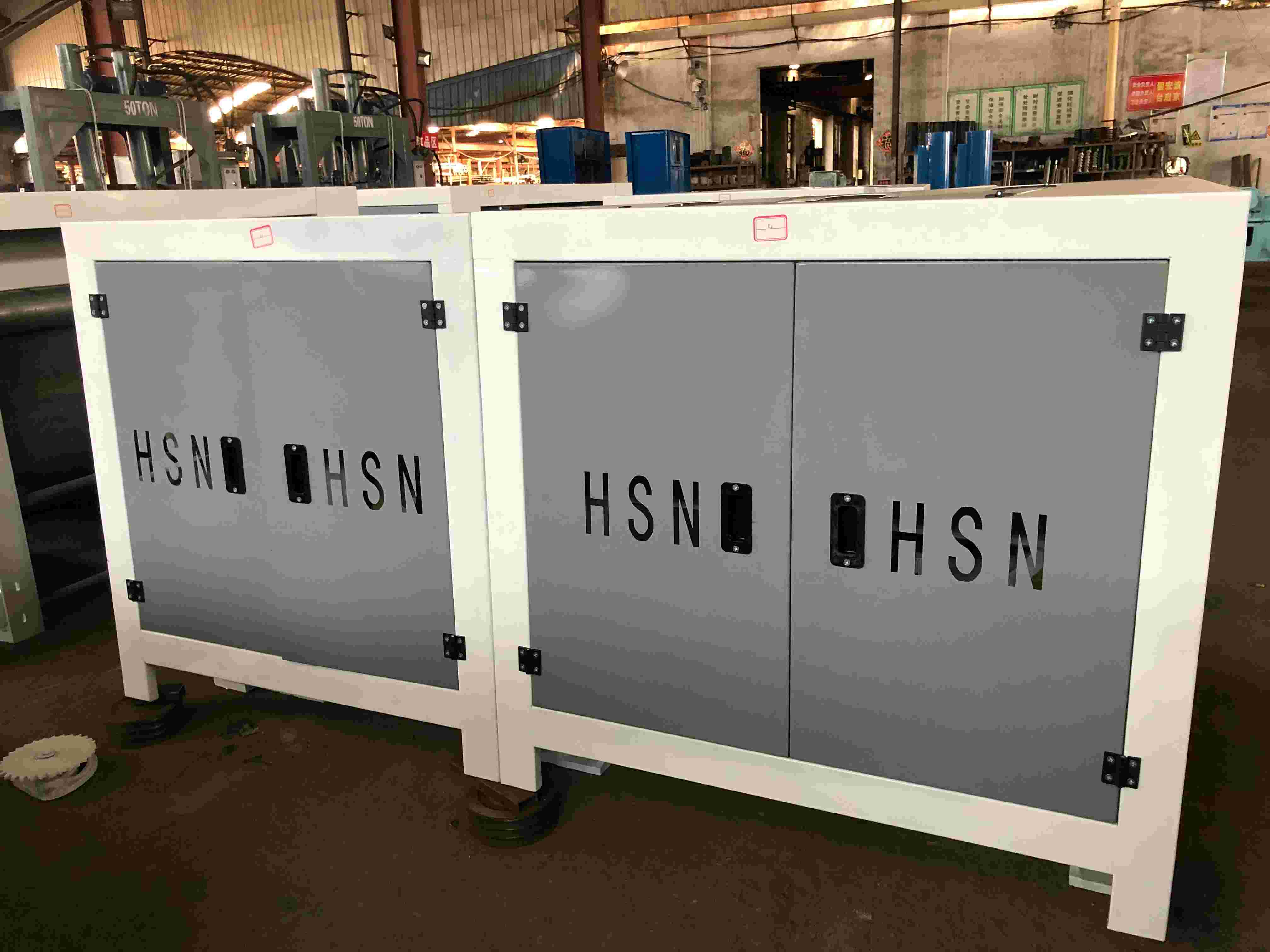

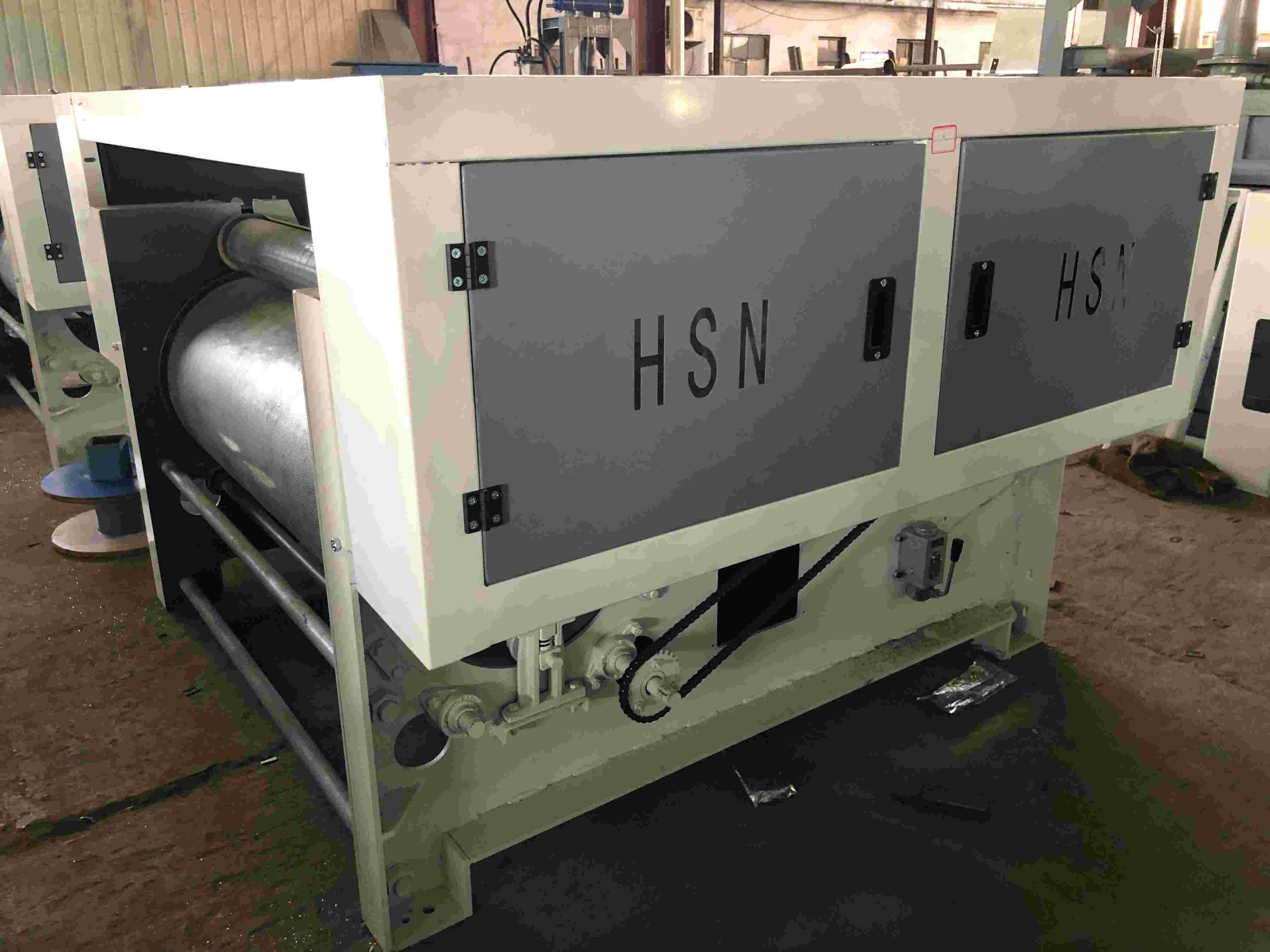

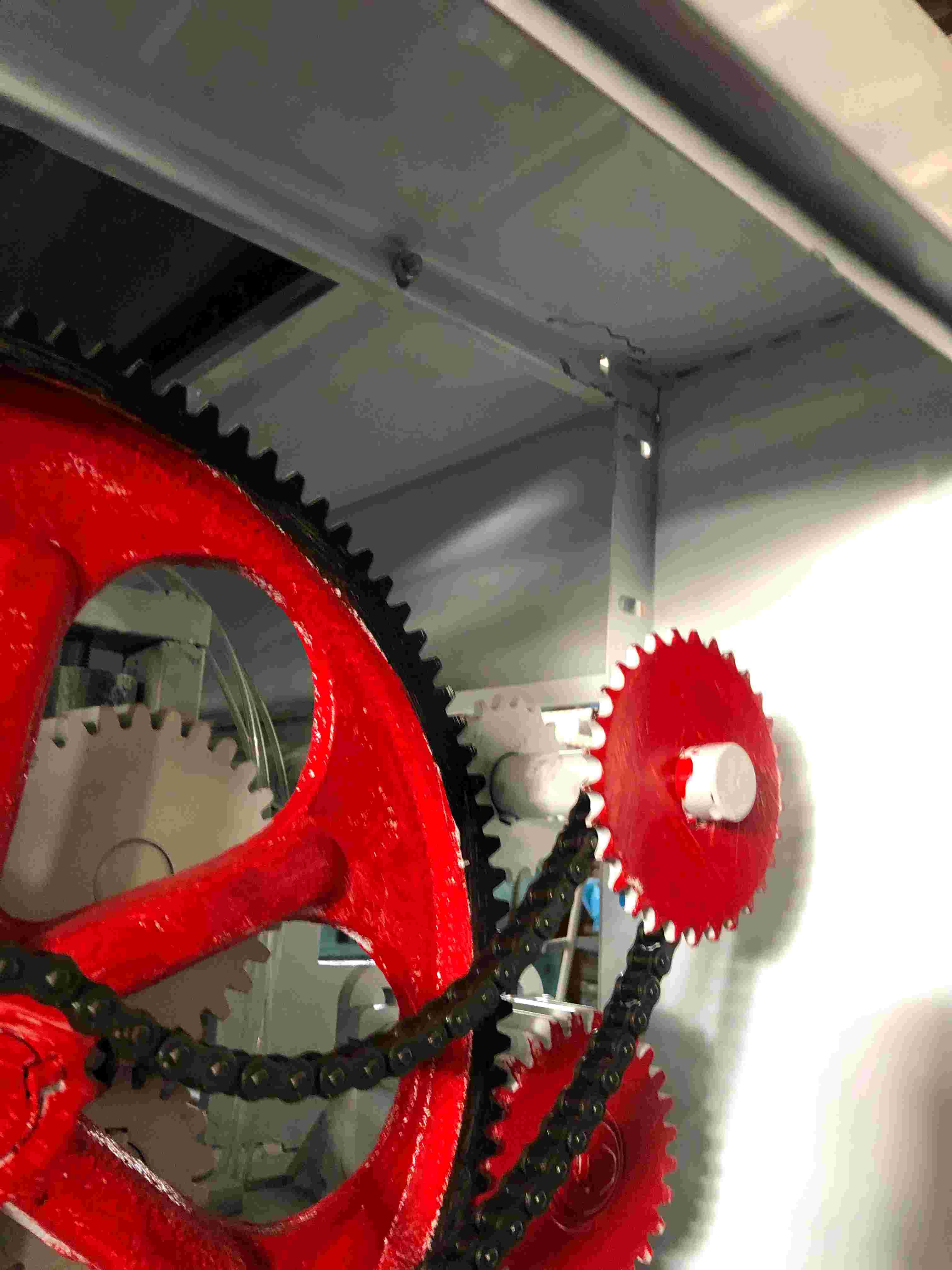

Details HSN918W610W (7)Details HSN918W610W (8)Details HSN918W610W (10)Details HSN918W610W (6)Details HSN918W610W (1)Details HSN918W610W (4)
